Arduino Nano 3.0 Board with ATmega328 The Arduino Nano 3.0 is a compact board featuring the ATmega328 microcontroller. It’s a complete, bread-board friendly development board which measures just 45 x 18 mm. What’s different about the Arduino Nano? Obviously its size makes the Arduino Nano stand out from the family. However it holds much of the same functionality of comparable boards. The main difference is lack of DC power jack and it works with a Mini-B USB cable, rather than a standard USB. What’s on board? ATmega328 MCU22 x digital I/O pins (6 can be used as PWM outputs)8 x Analogue inputs16MHz crystal oscillator1 x Mini-B USB Operating voltage: 5VFLASH memory: 32KBSRAM: 2KBEEPROM: 1KBDimensions: 45 x 18 mm What is Arduino? Arduino is an open-source electronics platform consisting of hardware and software. Every aspect is designed to be straightforward so you can learn to code or design a project, quickly and easily. It’s designed for students, programmers, designers, hobbyists and tinkerers. The Arduino open-source software (IDE) is there to help too. It makes is much easier to write code and transfer it to your board. The Arduino Community The Arduino Project Book is there to help but there is also a huge community surrounding Arduino. So, if you are ever stuck or require some guidance with your projects, the Arduino site is full of content to keep you going. Or, if you find you are stuck for ideas to tinker about with, there’s plenty of projects on the site to give you some inspiration: http://labs.arduino.org/

Description Arduino Nicla Sense ME is a tiny low-power consumption board with a powerful processor and features. It features robust hardware, including industrial-grade Bosch sensors with embedded AI. The Arduino Nicla includes four state-of-the-art sensors from Bosch Sensortec, such as the BHI260AP motion sensor system with integrated AI, BMM150 magnetometer, BMP390 pressure sensor, BME688 4-in-1 gas sensor with AI and integrated high-linearity, as well as high-accuracy pressure, humidity and temperature sensors. Key Features BHI260AP motion sensor system with integrated AIBMM150 magnetometerBMP390 pressure sensorBME688 4-in-1 gas sensor with AI and integrated high-linearity and high-accuracy pressure, humidity, and temperature sensors. 64 MHz Arm® Cortex M4 (nRF52832) microcontrollerBluetooth® 4.2 connectivityPowered by a Micro USB (USB-B), Pin Header, 3.7V Li-po battery with Integrated battery charger.512KB Flash / 64KB RAM, 2MB SPI Flash for storage, 2MB QSPI dedicated for BHI260AP. Key Benefits Ideal for multiple applications such as predictive maintenance, robotics, accelerated medical recovery, logistics & supply chain, gas detection, detection of toxic substances, air quality, monitoring of environmental conditions, home automation, etc.Features high-quality sensors from Bosch Sensortecan such as an accelerometer, gyroscope, geomagnetic, gas, pressure, temperature & humidity sensors.It’s designed to analyze motion and the surrounding environment easily. Tiny size, low-power consumption, yet full with amazing features and robust hardware.The perfect board that will add sensing capabilities to existing projectsWhen battery-powered, it becomes a complete standalone board. Powerful processor, capable of hosting intelligence on the Edge.Bluetooth Low Energy (BLE) connectivity maximizes compatibility with professional and consumer equipment.24/7 always-on sensor data processing at ultra-low power consumption.

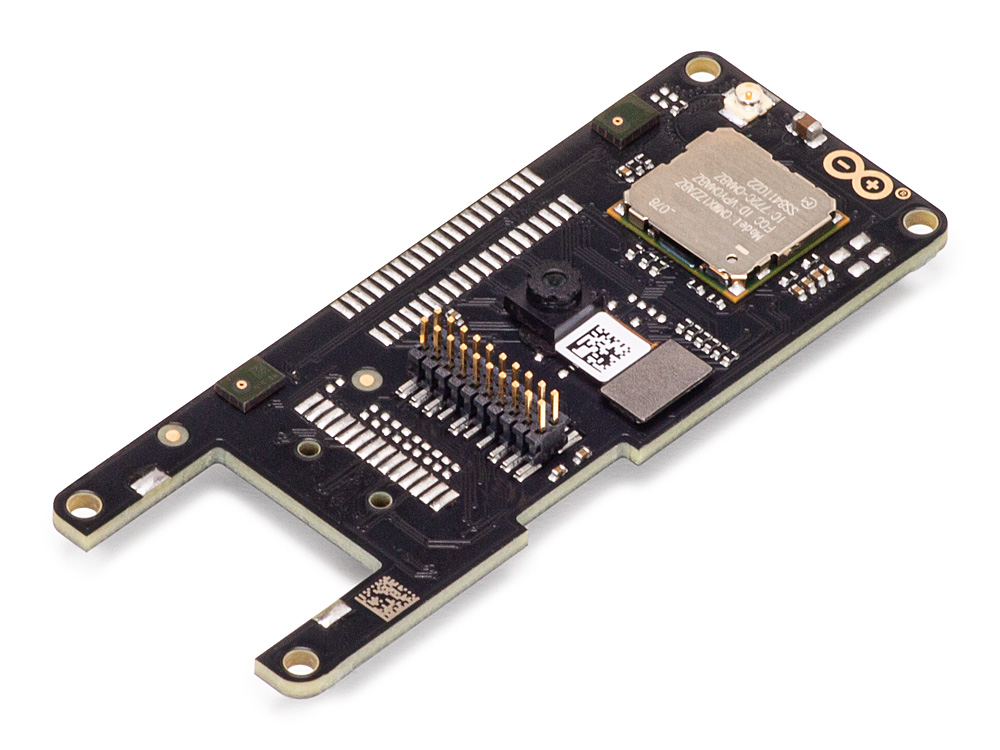

The Arduino portenta vision shield is a Ethernet development tool for Arduino with lora connector and it is available only in this version with lora connectivity. Long range connectivity

Arduino 9 Axes Motion Shield The Arduino 9 Axes Motion Shield has been developed with Bosch using their BN0055 absolute orientation sensor as an on-board key feature. With the shield, designers can start to introduce motion sensing to projects, connecting to TinkerKit modules and Arduino boards such as Uno, Yun, Leonardo, Ethernet, Mega, Due and Zero Pro.The shield is powered only when connected to an Arduino board.Motion Shield Features•BN0055 absolute orientation sensor•5 V operating voltage•50 mW power consumption

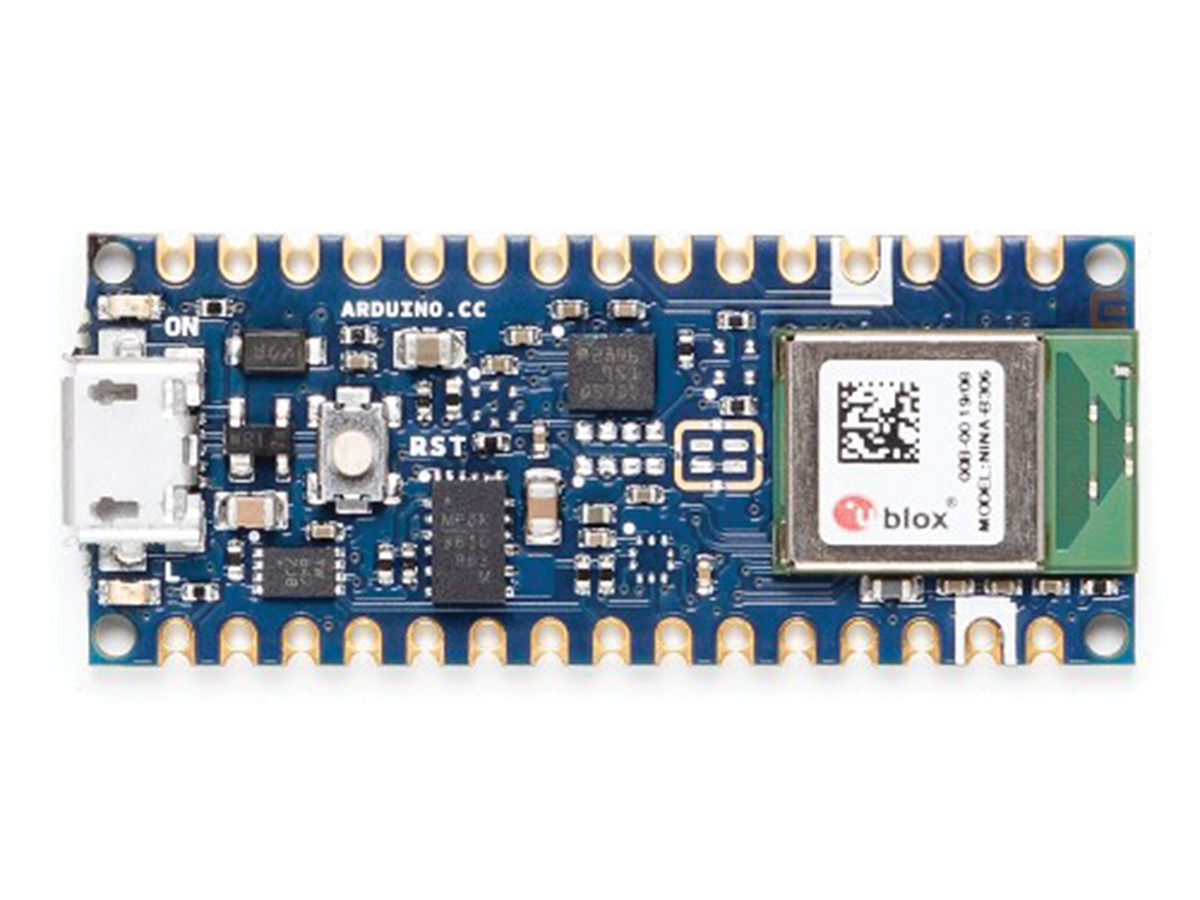

This compact and reliable Nano board is built around the NINA B306 module, based on Nordic nRF 52840 and containing a powerful Cortex M4F.Its architecture, fully compatible with Arduino IDE Online and Offline, has a 9 axis Inertial Measurement Unit (IMU) and a reduced power consumption compared to other same size boards.This allows the design of wearable devices and movement sensing projects that need to communicate to other devices at a close range. Arduino Nano 33 BLE is also ideal for automation projects thanks to the multiprotocol BT 5.0 radio.

Introducing the Nano ESP32, a powerful new addition to the iconic Arduino Nano ecosystem. This little board brings the power of the popular ESP32-S3 to with the support of the Arduino ecosystem, giving makers the perfect option to explore the world of Arduino and MicroPython programming. Whether you're a beginner keen to step into the world of IoT or MicroPython, or an experienced maker looking to incorporate it into your next product, the Nano ESP32 is the ideal solution to kick-start your IoT or MicroPython project with ease. It is available with or without headers. Get ready to experience the perfect mix of accessibility, support, and power with the Arduino Nano ESP32 – where the Arduino brand you know and love meets the robust capabilities of the ESP32-SE, all in the compact Nano form factor. With comprehensive and accessible setup steps you’ll have the Arduino ESP32 up and running in no time, no matter your level of experience! Key benefits of the Arduino Nano ESP32 Compact form factor: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects. Wireless connectivity: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth ® connectivity. Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino even offer an introductory course for those new to the MicroPython world, so if you’re a beginner you don’t need to worry about getting started. Monitor and control your projects from anywhere: Quickly and easily create IoT projects with just a few lines of code. Arduino setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening new possibilities for interacting with your computer. Technical Specifications Microcontroller: u-blox® NORA-W106 (ESP32-S3) USB Connector: USB-C® Pins: Built-in LED Pin: 13; Digital I/O Pins: 14; Analog Input Pins: 8; PWM Pins: 5; External Interrupts: All digital pins Connectivity: Wi-Fi®: u-blox® NORA-W106 (ESP32-S3); Bluetooth®: u-blox® NORA-W106 (ESP32-S3) Communication: UART: 1x, D0 (TX), D1, (RX); I2C: 1x, A4 (SDA), A5 (SCL); SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS). Power: I/O Voltage: 3.3V; Input Voltage (Nominal): 5-18V; Source Current per I/O Pin: 40 mA; Sink Current per I/O Pin: 28 mA Clock Speed: Processor: up to 240 MHz Memory: ROM: 384 kB; SRAM 512 kB; External Flash: 128 Mbit (16 MB) Dimensions: 18mm x 45mm

Introducing the Nano ESP32, a powerful new addition to the iconic Arduino Nano ecosystem. This little board brings the power of the popular ESP32-S3 to with the support of the Arduino ecosystem, giving makers the perfect option to explore the world of Arduino and MicroPython programming. Whether you're a beginner keen to step into the world of IoT or MicroPython, or an experienced maker looking to incorporate it into your next product, the Nano ESP32 is the ideal solution to kick-start your IoT or MicroPython project with ease. It is available with or without headers. Get ready to experience the perfect mix of accessibility, support, and power with the Arduino Nano ESP32 – where the Arduino brand you know and love meets the robust capabilities of the ESP32-SE, all in the compact Nano form factor. With comprehensive and accessible setup steps you’ll have the Arduino ESP32 up and running in no time, no matter your level of experience! Key benefits of the Arduino Nano ESP32 Compact form factor: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects. Wireless connectivity: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth ® connectivity. Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino even offer an introductory course for those new to the MicroPython world, so if you’re a beginner you don’t need to worry about getting started. Monitor and control your projects from anywhere: Quickly and easily create IoT projects with just a few lines of code. Arduino setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening new possibilities for interacting with your computer. Technical Specifications Microcontroller: u-blox® NORA-W106 (ESP32-S3) USB Connector: USB-C® Pins: Built-in LED Pin: 13; Digital I/O Pins: 14; Analog Input Pins: 8; PWM Pins: 5; External Interrupts: All digital pins Connectivity: Wi-Fi®: u-blox® NORA-W106 (ESP32-S3); Bluetooth®: u-blox® NORA-W106 (ESP32-S3) Communication: UART: 1x, D0 (TX), D1, (RX); I2C: 1x, A4 (SDA), A5 (SCL); SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS). Power: I/O Voltage: 3.3V; Input Voltage (Nominal): 5-18V; Source Current per I/O Pin: 40 mA; Sink Current per I/O Pin: 28 mA Clock Speed: Processor: up to 240 MHz Memory: ROM: 384 kB; SRAM 512 kB; External Flash: 128 Mbit (16 MB) Dimensions: 18mm x 45mm

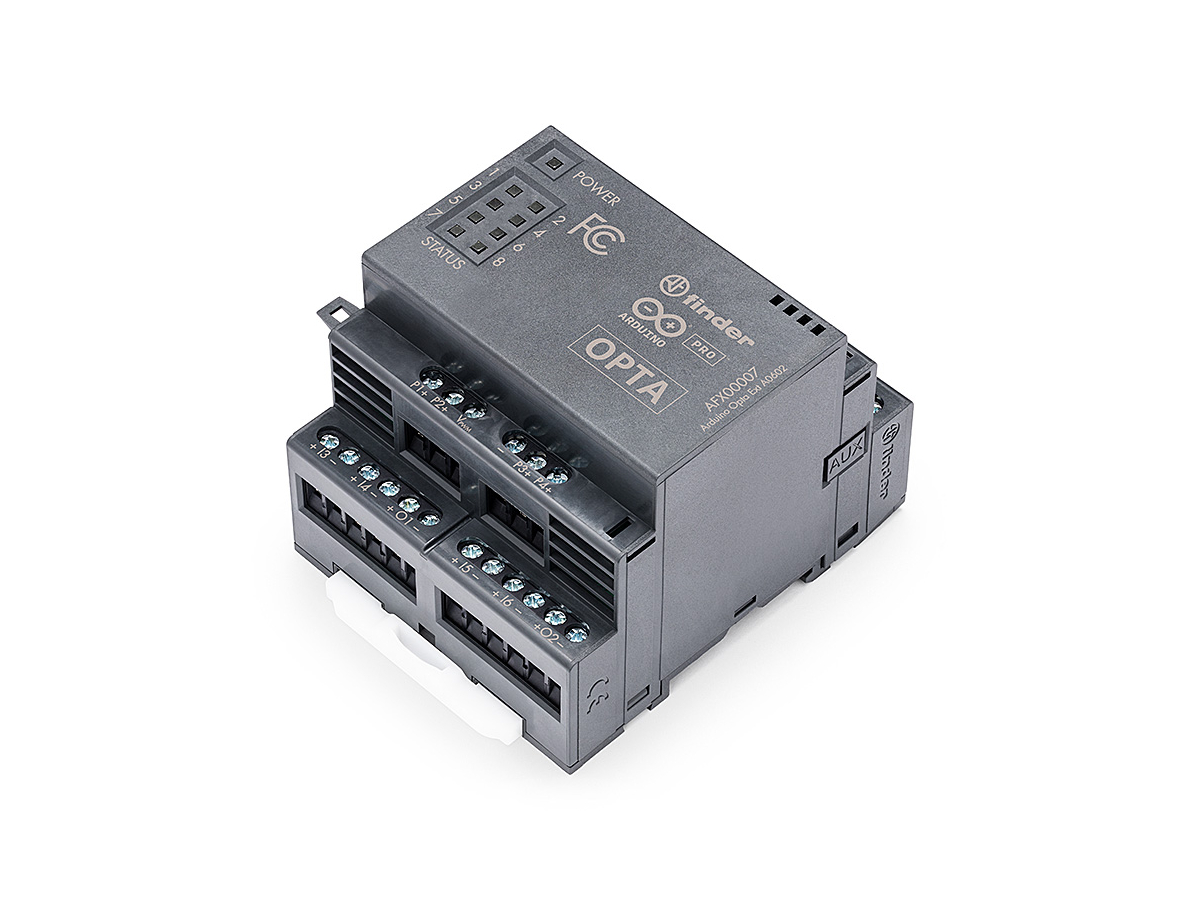

Unlock the full potential of your Arduino Opta with the versatile Arduino Pro Opta Ext A0602. This powerful analog expansion module enhances your system with six programmable inputs for seamless integration with analog sensors, allowing you to monitor voltages (0 to 10 V), currents (0/4 to 20 mA), or temperatures via RTD PT100 sensors. It also offers two configurable analog outputs and four PWM digital outputs, all effortlessly managed through the Opta base unit. Whether you prefer the user-friendly Arduino ecosystem or the robust PLC IDE IEC 61131-3 programming environment, the Opta Ext A0602 is designed to extend your capabilities while maintaining programming ease and flexibility. Key Benefits Flexible Inputs: Six programmable analog inputs to handle 0-10 V, 0/4 to 20 mA, or temperature measurements from -25 °C to +400 °C using RTD PT100 sensors. Configurable Outputs: Two analog outputs programmable for 0-10 V or 0/4 to 20 mA and four PWM digital outputs. Seamless Integration: Manage up to five snap-on modules, integrating effortlessly with the Opta base unit. Enhanced Capabilities: Expand your hardware potential while enjoying the wide range of Arduino IDE resources, including sketches, tutorials, and libraries. PLC Compatibility: Utilise the PLC IDE for IEC 61131-3 languages, benefiting from its low-code approach and pre-mapped resources. Real-time Monitoring: Leverage Arduino Cloud dashboards for intuitive remote monitoring and secure communication with connected devices. Industrial Reliability: Built with industrial certifications and backed by Finder’s expertise in electronic devices. Easy Installation: Designed for simple DIN rail installation. Application Examples Chemical Manufacturing Control: Precisely regulate temperature, pressure, and reactant concentrations in processes like mixing, reaction control, and polymerisation. Utilise the STM32H7 microcontroller and Arduino Opta's connectivity for process control and data logging, with remote monitoring via Arduino Cloud. Water Treatment: Optimise water and wastewater management by integrating real-time data from sensors monitoring turbidity, pH, and flow rates. Implement machine learning algorithms to predict changes and adapt treatment protocols dynamically. Industrial Food Processing: Monitor and control variables such as temperature, pressure, and ingredient proportions to ensure quality and efficiency in food production. Utilise real-time connectivity for remote monitoring and adjustments, minimising waste and maximising yield. Smart Sustainability in Green Buildings: Transform buildings into energy-efficient structures by using analog sensors to measure natural light, temperature, occupancy, and indoor air quality. Dynamically control lighting, temperature, and airflow through real-time data and remote control with Arduino Cloud dashboards. Security and Access Control: Enhance security by monitoring doors and motion detectors with analog sensors. Use real-time data to guide access control, alarm systems, and surveillance, ensuring precise regulation of locks and entry points. Specifications Supply Voltage: 12 - 24 V DC through dedicated pins IP Protection: IP20 Inputs: 6 x analog programmable: 4X 0-10 V or 0/4-20 mA, 2X 0-10 V or 0/4-20 mA or PT100 Analog Inputs Resolution: 12 bit Outputs: 2 x analog programmable: 0-10 V or 0/4-20 mA, 4 x PWM outputs Analog Outputs Resolution: 12 bit Programming languages from the base module: From the main Opta controller using either Arduino programming language via IDE or IEC-61131-3 via PLC IDE: Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), Instruction List (IL) Expandability: Through AUX port on the left and on the right. Available to connect to the Opta base module or to expansions already connected. Enabling the connection of additional expansions in daisy chain. Certifications: cULus listed, ENEC, CE Operating Temperature: -20 °C to +50 °C (-4°F to 122°F)

The Arduino Nano BLE Sense Rev2 combines a tiny form factor with different environment sensors and the possibility to run AI using Tiny ML and Tensor Flow Lite. It's an excellent choice for individuals entering embedded machine learning, offering Bluetooth® 5 Low Energy connectivity and a range of sensors. This variant comes without Headers. Key benefits of Arduino Nano BLE Sense Rev2 without Headers Bluetooth® Connectivity: Utilises a powerful 2.4 GHz Bluetooth® 5 module by u-blox for seamless data transmission. Python® Programming: Supports MicroPython, providing flexibility in programming options. Proximity and Gesture Detection: Utilises the APDS9960 sensor for raw data, enabling gesture control. Multi-Sensor Integration: Features sensors for temperature, humidity, motion (9-axis IMU), microphone for real-time sound analysis, and a barometric pressure sensor. Ideal for Various Applications: Suitable for beginners, makers, or professionals delving into embedded machine learning projects. Technical specifications Microcontroller: nRF52840 USB Connector: Micro USB Pins: Built-in LED Pin: 13, Digital I/O Pins: 14, Analog input pins: 8, PWM pins: 5, External interrupts: All digital pins Connectivity: Bluetooth®: NINA-B306 Sensors: IMU: BMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer), Microphone: MP34DT06JTR, Gesture, light, proximity: APDS9960, Barometric pressure: LPS22HB, Temperature, humidity: HS3003 Communication: UART: RX/TX, I2C: A4 (SDA), A5 (SCL), SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS). Power: I/O Voltage: 3.3V, Input voltage (nominal): 5-18V, DC Current per I/O Pin: 10 mA Clock Speed: Processor: nRF52840 64MHz Memory: nRF52840: 256 KB SRAM, 1MB flash Dimensions: Weight: 5gr, Width: 18 mm, Length: 45 mm

The Arduino Nano BLE Sense Rev2 combines a tiny form factor with different environment sensors and the possibility to run AI using Tiny ML and Tensor Flow Lite. It's an excellent choice for individuals entering embedded machine learning, offering Bluetooth® 5 Low Energy connectivity and a range of sensors. This variant comes with Headers. Key benefits of Arduino Nano BLE Sense Rev2 with Headers Bluetooth® Connectivity: Utilises a powerful 2.4 GHz Bluetooth® 5 module by u-blox for seamless data transmission. Python® Programming: Supports MicroPython, providing flexibility in programming options. Proximity and Gesture Detection: Utilises the APDS9960 sensor for raw data, enabling gesture control. Multi-Sensor Integration: Features sensors for temperature, humidity, motion (9-axis IMU), microphone for real-time sound analysis, and a barometric pressure sensor. Ideal for Various Applications: Suitable for beginners, makers, or professionals delving into embedded machine learning projects. Technical specifications Microcontroller: nRF52840 USB Connector: Micro USB Pins: Built-in LED Pin: 13, Digital I/O Pins: 14, Analog input pins: 8, PWM pins: 5, External interrupts: All digital pins Connectivity: Bluetooth®: NINA-B306 Sensors: IMU: BMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer), Microphone: MP34DT06JTR, Gesture, light, proximity: APDS9960, Barometric pressure: LPS22HB, Temperature, humidity: HS3003 Communication: UART: RX/TX, I2C: A4 (SDA), A5 (SCL), SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS). Power: I/O Voltage: 3.3V, Input voltage (nominal): 5-18V, DC Current per I/O Pin: 10 mA Clock Speed: Processor: nRF52840 64MHz Memory: nRF52840: 256 KB SRAM, 1MB flash Dimensions: Weight: 5gr, Width: 18 mm, Length: 45 mm

The Arduino Portent Max Carrier enables edge AI for high-performance industrial building automation and robotics applications It transforms the Arduino Portent family into a standardized industrial platform suitable for use as a single board computer or reference design The carrier provides easy access to onboard peripherals of the Arduino Portent X8 including Gigabit Ethernet micro SD and Pie It also enhances the capabilities of the Portent X8 with Fieldbus LoRa 4G Cat-M1 and NB-IoT connectivity offering a powerful platform for Industry 4.0 Flash memory 2Mb QSPIMicro SD Card slot

The Arduino Portenta Machine Control is powered with a 24V DC power supply and provides several input/output digital and analogue pins. This makes the board capable of driving high power relays, sample analogue signals and measure temperature with different probes. Features & Benefits 24V Output Voltage8 Digital Input Channels 0-24V8 Digital Output Channels3 Analogue Input Channels4 Analogue Output Channels12 Digital Programmable Channels3 Temperature Channels2 Encoder Channels ABZHigh Speed CANI2CEthernetRS232/RS422/RS485 Software ConfigurableFull Speed USB A Connector and Half Speed Micro USB ConnectorRTC - at least 48h Memory RetentionWi-Fi/BLE - SMA Connector 50Ω Applications Food ProcessingGlass Bottle ManufacturingPackaging
