The Tinker Open Case DIY Kit from Asus has been designed for use with the Tinker Board and Tinker Board S Single Board Computers. It features a high-speed fan and the aluminium heatsink raise the board and create a wider space for better heat dissipation creating the ultimate cooling solution with controllable fan speed. It's open design provides the perfect test bench for DIY Makers who want to work on Tinker Board in an open environment, and the sturdy backplate reduce risk of the PCB bending and short-circuiting.

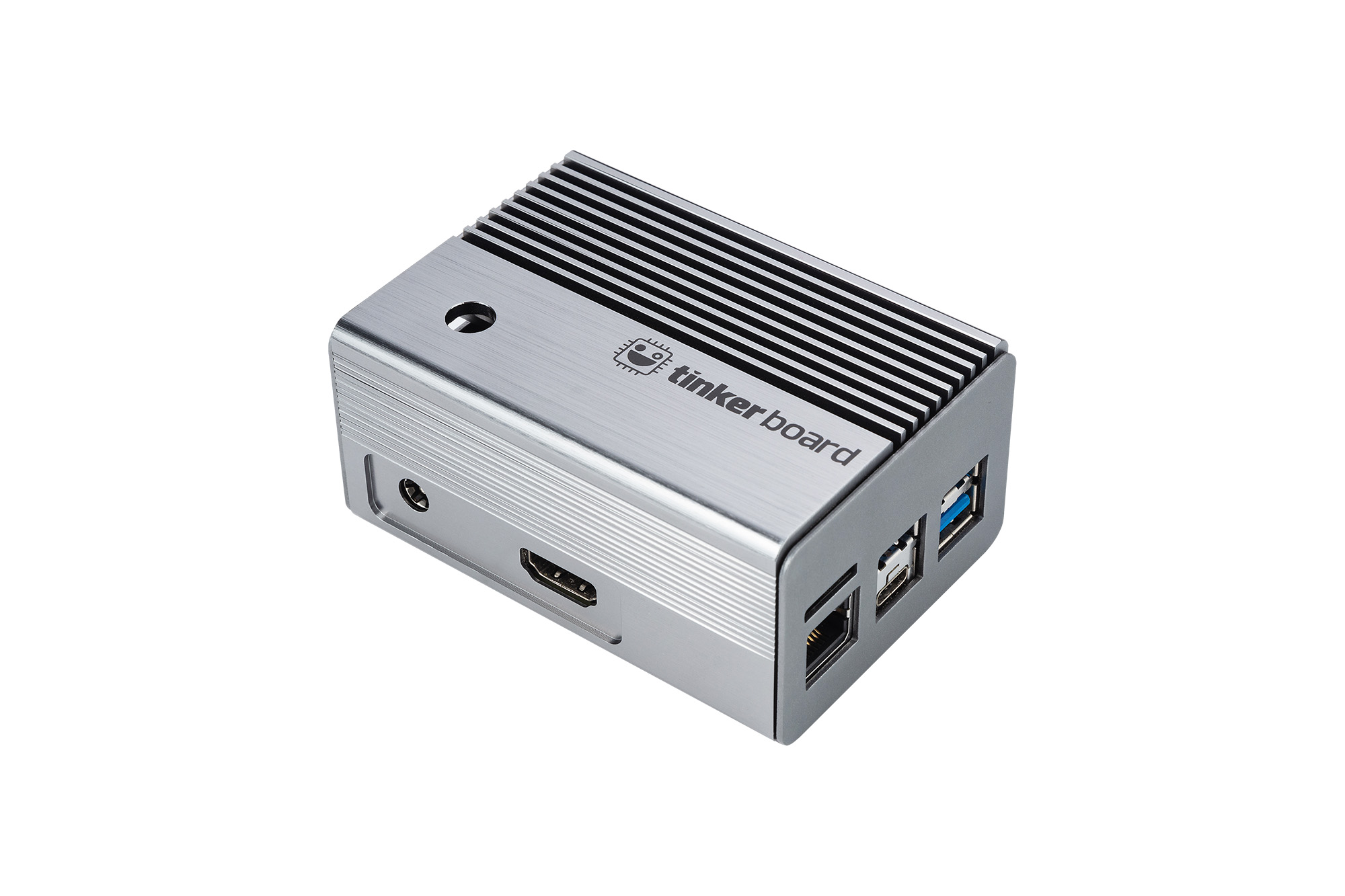

This sturdy, and fanless aluminum case from Asus is designed for use with Tinker Board 2 Series. Fanless design Heat dissipation is a crucial factor in achieving maximum performance with Tinker Board 2. By encasing yours in the custom-designed Fanless Aluminum Case, any generated heat will be quickly and efficiently dissipated – ensuring Tinker Board 2 is able to deliver top-notch performance. Hassle-free installation Metal cases typically require a screwdriver for installation, but this hassle-free case is easy to assemble, and can be fastened with only a thumb screw – no tools required. Easy expandability Expanding your Tinker Board 2 with a camera, DSI panel or other wired peripherals is also easy, with a series of dedicated I/O port cut-outs.

The Asus Tinker Board 2S single board computer powered by a Arm® 6-core RK3399 system on a chip (SoC) with the new 64-bit ARMv8 architecture. The Tinker Board 2S provides ultimate performance for IoT devices, benefitting from Arm big.LITTLE technology ensuring the right CPU core for each process, multi-core Mali-T860 designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications. Tinker Board 2S offers enhanced computing performance with low power consumption. Key benefits of Tinker Board 2S: Dual-Display Support: Tinker Board 2S supports dual displays at up to 4K UHD resolution. Wi-Fi and Bluetooth: 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas, Bluetooth 5.0 technology Rich connectivity options: Tinker Board 2S offers three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port Easily expandable for embedded solutions: RTC battery header, SD card slot, Fan connector Built-in protection for your peace of mind: Short-circuit damage prevention, Electrostatic discharge protection, Overvoltage protection Easy setup: Have your Tinker Board 2S up and running in no time! It includes a flexible setup tool enabling you to tweak settings to perfectly match the way you work. Initial configuration follows just three simple steps. IT Management Software: ASUS IoT Cloud Console, ASUS Industrial Android FOTA Technical Specifications: SoC: Rockchip RK3399 CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz, Quad-core Arm® Cortex®-A53 @ 1.5 GHz GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz Display: 1 x HDMI™ with CEC hardware ready, 1 x USB Type-C® (DP Alt Mode), 1 x 22-pin MIPI DSI (4 lane) Memory: Dual-CH LPDDR4 4GB Storage: 16GB eMMC, Micro SD(TF) card slot (push/pull) Connectivity: 1 x RTL8211F-CG GbE LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) Audio: 1 x HDMI™ audio output, 1 x S/PDIF TX pin (from GPIO), 1 x PCM/I2S pins (from GPIO) USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane) Internal Headers: 1 x 40-pin headers includes:<BR/>- up to 28 x GPIO pins<BR/>- up to 2 x SPI bus<BR/>- up to 2 x I2C bus<BR/>- up to 2 x UART<BR/>- up to 3 x PWM<BR/>- up to 1 x PCM/I2S<BR/>- up to 1 x S/PDIF TX<BR/>- 2 x 5V power pins<BR/>- 2 x 3.3V power pins<BR/>- 8 x ground pins<BR/>1 x 2-pin Recovery header<BR/>1 x 2-pin Power-on header<BR/>1 x 2-pin Reset header<BR/>1 x 2-pin Debug UART header<BR/>1 x 2-pin DC Fan header<BR/>1 x 2-pin RTC Battery header Power Connector (up to 45W): 1 x 12∼19V DC Power Input Jack (5.5/2.5 mm) OS Support: Debian 9 / Android 10 Dimensions: 85 x 56 mm Operation temperature: 0℃ ∼ 60℃

The Asus Tinker Board R2.0 single board computer is an ARM-based SBC that leverages a powerful quad-core ARM-based processor — the Rockchip RK3288-CG.W. Powered by an ARM-based Mali™-T764 GPU, Tinker Board R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more. Key benefits of Tinker Board R2.0 HD Audio Quality: Tinker Board R2.0 is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module. Great connectity options: 40-pin GPIO interface, DSI MIPI connection, CSI MIPI connection, Gbit LAN for Internet and network connectivity, Wi-Fi and Bluetooth, integrated IPEX antenna header, full-size HDMI output, four USB 2.0 ports, and much more. Highly comptaible with accessories: Its familiar form factor allow support for a wide range of chassis and physical accessories. Thermal management: Tinker Board R2.0 series also includes a heatsink to ensure your Tinker Board runs under heavy loads or in hot environments Ideal for many applications: including digital signage, kioks, IoT gateways, digital payments, and much more! Technical specifications: CPU: Rockchip Quad-Core RK3288-CG.W processor Memory: 2GB Dual Channel DDR3 Graphics: Integrated Graphics Processor<BR/>ARM® Mali™-T764 GPU*1 Storage: Micro SD(TF) card slot LAN: RTL GB LAN Wireless Data Network: 802.11 b/g/n, Blutetooth V4.2 + EDR Audio: RTL ALC4030U CODEC USB Ports: 4 x USB 2.0 Internal I/O Ports: 1 x 40-pin headers:<BR/>- up to 28 x GPIO pins<BR/>- up to 2 x SPI bus<BR/>- up to 2 x I2C bus<BR/>- up to 4 x UART<BR/>- up to 2 x PWM<BR/>- up to 1 x PCM/I2S<BR/>- 2 x 5V power pins<BR/>- 2 x 3.3V power pins<BR/>- 8 x ground pins<BR/>1 x 2-pin contact pin:<BR/>- 1 x PWM<BR/>- 1 x S/PDIF<BR/>1 x 15-pin MIPI DSI<BR/>1 x 15-pin MIPI CSI Accessories: Passive heatsink*2, User manual Form Factor: 3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm ) Weight: 55g Operation temperature: 0℃ ∼ 60℃ OS Support: Debian 10 / Android 11 Notes: *1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder.<BR/>*2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury.

The Asus Tinker Board S R2.0 single board computer is an ARM-based SBC that leverages a powerful quad-core ARM-based processor — the Rockchip RK3288-CG.W. Powered by an ARM-based Mali™-T764 GPU, Tinker Board S R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more. Key benefits of the Tinker Board S R2.0: HD Audio Quality: Tinker Board S R2.0 is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module. Great connectity options: 40-pin GPIO interface, DSI MIPI connection, CSI MIPI connection, Gbit LAN for Internet and network connectivity, Wi-Fi and Bluetooth, integrated IPEX antenna header, full-size HDMI output, four USB 2.0 ports, and much more. Highly comptaible with accessories: Its familiar form factor allow support for a wide range of chassis and physical accessories. Thermal management: Tinker Board S R2.0 series also includes a heatsink to ensure your Tinker Board runs under heavy loads or in hot environments Ideal for many applications: including digital signage, kioks, IoT gateways, digital payments, and much more! Onboard eMMC - 16GB eMMC ensuring you won't run out of storage Technical specifications: CPU: Rockchip Quad-Core RK3288-CG.W processor Memory: 2GB Dual Channel DDR3 Graphics: Integrated Graphics Processor<BR/>ARM® Mali™-T764 GPU*1 Storage: 16GB eMMC, Micro SD(TF) card slot LAN: RTL GB LAN Wireless Data Network: 802.11 b/g/n, Blutetooth V4.2 + EDR Audio: RTL ALC4030U CODEC USB Ports: 4 x USB 2.0 Internal I/O Ports: 1 x 40-pin headers:<BR/>- up to 28 x GPIO pins<BR/>- up to 2 x SPI bus<BR/>- up to 2 x I2C bus<BR/>- up to 4 x UART<BR/>- up to 2 x PWM<BR/>- up to 1 x PCM/I2S<BR/>- 2 x 5V power pins<BR/>- 2 x 3.3V power pins<BR/>- 8 x ground pins<BR/>1 x 2-pin contact pin:<BR/>- 1 x PWM<BR/>- 1 x S/PDIF<BR/>1 x 15-pin MIPI DSI<BR/>1 x 15-pin MIPI CSI Accessories: Passive heatsink*2, User manual Form Factor: 3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm ) Weight: 55g Operation temperature: 0℃ ∼ 60℃ OS Support: Debian 10 / Android 11 Notes: *1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder.<BR/>*2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury.

The Asus Tinker Board 2S single board computer powered by a Arm® 6-core RK3399 system on a chip (SoC) with the new 64-bit ARMv8 architecture. The Tinker Board 2S provides ultimate performance for IoT devices, benefitting from Arm big.LITTLE technology ensuring the right CPU core for each process, multi-core Mali-T860 designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications. Tinker Board 2S offers enhanced computing performance with low power consumption. Key benefits of Tinker Board 2S: Dual-Display Support: Tinker Board 2S supports dual displays at up to 4K UHD resolution. Wi-Fi and Bluetooth: 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas, Bluetooth 5.0 technology Rich connectivity options: Tinker Board 2S offers three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port Easily expandable for embedded solutions: RTC battery header, SD card slot, Fan connector Built-in protection for your peace of mind: Short-circuit damage prevention, Electrostatic discharge protection, Overvoltage protection Easy setup: Have your Tinker Board 2S up and running in no time! It includes a flexible setup tool enabling you to tweak settings to perfectly match the way you work. Initial configuration follows just three simple steps. IT Management Software: ASUS IoT Cloud Console, ASUS Industrial Android FOTA Technical specifications: SoC: Rockchip RK3399 CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz, Quad-core Arm® Cortex®-A53 @ 1.5 GHz GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz Display: 1 x HDMI™ with CEC hardware ready, 1 x USB Type-C® (DP Alt Mode), 1 x 22-pin MIPI DSI (4 lane) Memory: Dual-CH LPDDR4 2GB Storage: 16GB eMMC, Micro SD(TF) card slot (push/pull) Connectivity: 1 x RTL8211F-CG GbE LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) Audio: 1 x HDMI™ audio output, 1 x S/PDIF TX pin (from GPIO), 1 x PCM/I2S pins (from GPIO) USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane) Internal Headers: 1 x 40-pin headers includes:<BR/>- up to 28 x GPIO pins<BR/>- up to 2 x SPI bus<BR/>- up to 2 x I2C bus<BR/>- up to 2 x UART<BR/>- up to 3 x PWM<BR/>- up to 1 x PCM/I2S<BR/>- up to 1 x S/PDIF TX<BR/>- 2 x 5V power pins<BR/>- 2 x 3.3V power pins<BR/>- 8 x ground pins<BR/>1 x 2-pin Recovery header<BR/>1 x 2-pin Power-on header<BR/>1 x 2-pin Reset header<BR/>1 x 2-pin Debug UART header<BR/>1 x 2-pin DC Fan header<BR/>1 x 2-pin RTC Battery header Power Connector (up to 45W): 1 x 12∼19V DC Power Input Jack (5.5/2.5 mm) OS Support: Debian 9 / Android 10 Dimensions: 85 x 56 mm Operation temperature: 0℃ ∼ 60℃

Tinker Edge T is a small and powerful Single Board Computer (SBC) from Asus that boasts a NXP i.MX 8M System-on-Chip, Quadcore ARM Cortex processor and integrated GC7000 Lite Graphics. It benefits from Google Edge TPU MLU accelerator coprocessor, a Neural Network Accelerator Processor (NPU) that runs Machine Learning (ML) inference in a high-efficiency manner, and the NPU is optimised for handling neural networks, bringing artificial intelligence (AI) from the cloud to local devices. It supports Linux Mendel OS. Ultimate performance for edge devices Tinker Edge T can perform up to 4 TOPS (tera-operations per second) with the built-in Edge TPU AI accelerator, using only 2 watts at maximum loading. The onboard NPU provides high-performance ML inferencing. The Edge TPU is optimised for TensorFlow Lite models, meaning Tinker Edge T can run and easily compile common ML models. Tinker Edge T is highly efficient compared to desktop-grade x86 CPU, when performing inference across many popular models. Powerful processor perfect for advanced applications Tinker Edge T benefits from the incredible NXP i.MX 8M SoC, combined with a Quadcore Arm Cortex processor and Google Edge TPU Ml accelerator coprocessor, it's a powerful board that really packs a punch. Advanced power design Supports dual 12V∼19V wide-range DC-in Power-protection design More connectivity options for developers Dual MIPI CSI for stereoscopic applications Compatible with popular DSI touch panel Enhanced Software Experience Machine Learning Developer Tools OS Flash Tool Intuitive Interface Technical Specifications SoC: NXP i.MX 8M CPU: Quad-core ARM Cortex-A53 @ 1.5GHz GPU: Integrated GC70000 Lite Graphics NN Processor: Google Edge TPU Coprocessor Display: 1x HDMI up to 1080p/60Hz, *HDMI CEC Hardware Ready Camera: 2x MIPI CSI-2 (4 lane) Memory Size: LPDDR4 1GB Storage: Onboard 8GB eMMC, 1x Micro SD (TF) Card Slot Connectivity: 1x GB LAN USB: 2x USB 3.2 Gen1 Ports, 1x USB-C OTG Port Internal Headers: 1x 40-pin GPIO Header, 1x 2-pin Reset-Button Header Power Connector:12V∼19V DC-in OS Support: Linux Mendel Dimensions: 85 x 56mm

The Asus Tinker Board 2 single board computer powered by a Arm® 6-core RK3399 system on a chip (SoC) with the new 64-bit ARMv8 architecture. The Tinker Board 2 provides ultimate performance for IoT devices, benefitting from Arm big.LITTLE technology ensuring the right CPU core for each process, multi-core Mali-T860 designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications. Key benefits of Tinker Board 2: Dual-Display Support: Tinker Board 2 supports dual displays at up to 4K UHD resolution. Wi-Fi and Bluetooth: 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas, Bluetooth 5.0 technology Rich connectivity options: Tinker Board 2 offers three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port Easily expandable for embedded solutions: RTC battery header, SD card slot, Fan connector Built-in protection for your peace of mind: Short-circuit damage prevention, Electrostatic discharge protection, Overvoltage protection Easy setup: Have your Tinker Board 2 going in no time! It includes a flexible setup tool enabling you to tweak settings to perfectly match the way you work. Initial configuration follows just three simple steps. IT Management Software: ASUS IoT Cloud Console, ASUS Industrial Android FOTA Technical specifications: SoC: Rockchip RK3399 CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz, Quad-core Arm® Cortex®-A53 @ 1.5 GHz GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz Display: 1 x HDMI™ with CEC hardware ready, 1 x USB Type-C® (DP Alt Mode), 1 x 22-pin MIPI DSI (4 lane) Memory: Dual-CH LPDDR4 2GB Storage: Micro SD(TF) card slot (push/pull) Connectivity: 1 x RTL8211F-CG GbE LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) Audio: 1 x HDMI™ audio output, 1 x S/PDIF TX pin (from GPIO), 1 x PCM/I2S pins (from GPIO) USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane) Internal Headers: 1 x 40-pin headers includes:<BR/>- up to 28 x GPIO pins<BR/>- up to 2 x SPI bus<BR/>- up to 2 x I2C bus<BR/>- up to 2 x UART<BR/>- up to 3 x PWM<BR/>- up to 1 x PCM/I2S<BR/>- up to 1 x S/PDIF TX<BR/>- 2 x 5V power pins<BR/>- 2 x 3.3V power pins<BR/>- 8 x ground pins<BR/>1 x 2-pin Recovery header<BR/>1 x 2-pin Power-on header<BR/>1 x 2-pin Reset header<BR/>1 x 2-pin Debug UART header<BR/>1 x 2-pin DC Fan header<BR/>1 x 2-pin RTC Battery header Power Connector (up to 45W): 1 x 12∼19V DC Power Input Jack (5.5/2.5 mm) OS Support: Debian 9 / Android 10 Dimensions: 85 x 56 mm Operation temperature: 0℃ ∼ 60℃

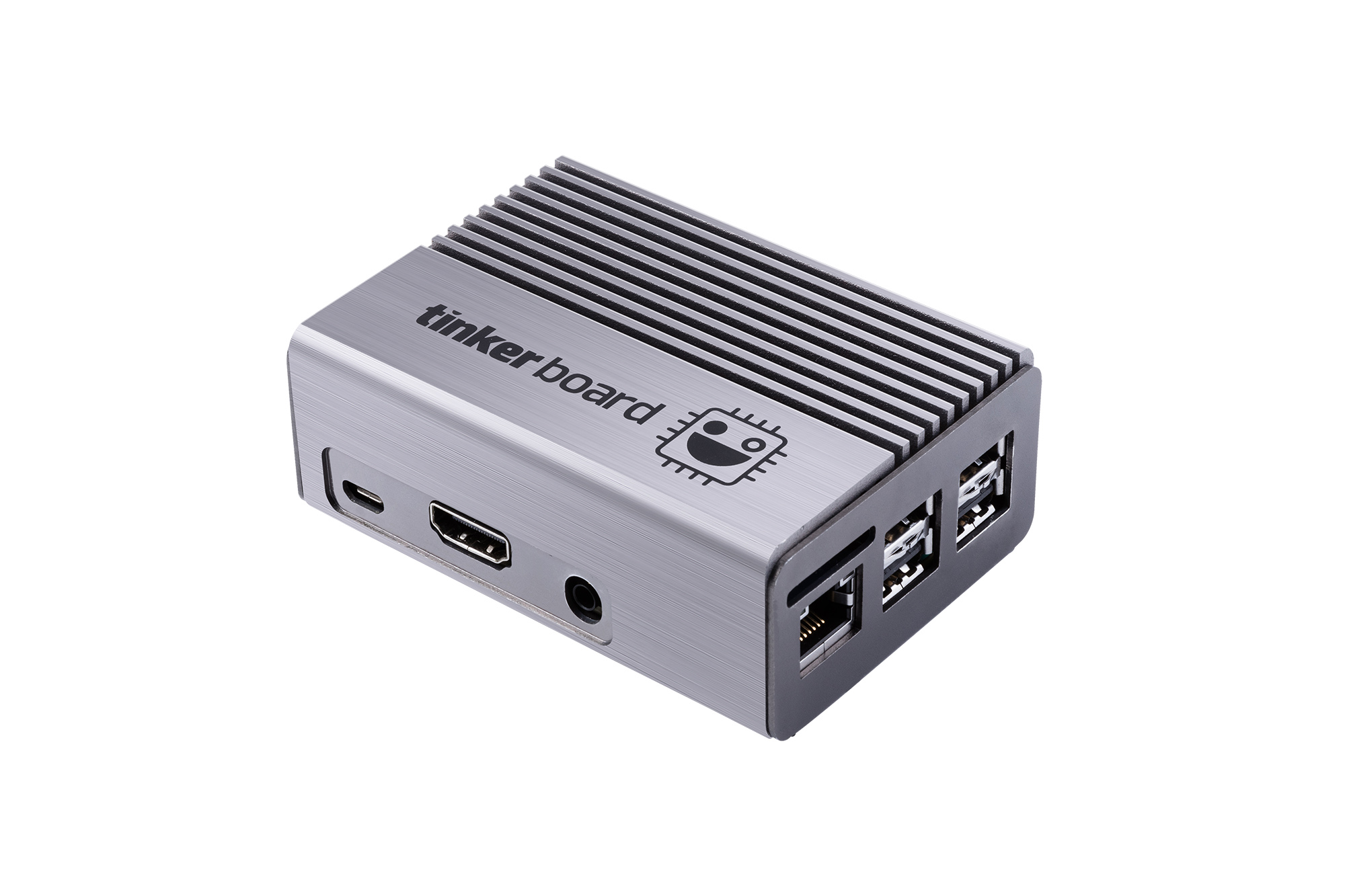

This sturdy, and fanless aluminum case from Asus is designed for use with Tinker Board and Tinker Board S Series. Fanless design Heat dissipation is a crucial factor in achieving maximum performance with Tinker Board or Tinker Board S. By encasing yours in the custom-designed Fanless Aluminum Case, any generated heat will be quickly and efficiently dissipated – ensuring Tinker Board or Tinker Board S is able to deliver top-notch performance. Hassle-free installation Metal cases typically require a screwdriver for installation, but this hassle-free case is easy to assemble, and can be fastened with only a thumb screw – no tools required. Easy expandability Expanding your Tinker Board or Tinker Board S with an antenna, or other accessories is easy, with a series of dedicated I/O port cut-outs.

Tinker Edge R is a small and powerful Single Board Computer (SBC) from Asus that boasts a powerful Rockchip RK3399Pro SoC, Hexacore ARM Cortex processor, and ARM Mali GPU. It benefits from a Neural Network Processor (NPU) that runs Machine Learning (ML) inference in a high-efficiency manner, and the NPU is optimised for handling neural networks, bringing artificial intelligence (AI) from the cloud to local devices. It supports Debian and Android OS. Ultimate performance for edge devices Tinker Edge R can perform up to 3 TOPS (tera-operations per second) with the built-in Rockchip NPU AI accelerator, using only 1.5 watts at maximum loading. The integrated NPU provides high-performance ML inferencing. The Rockchip NPU is optimised for Neural Network (NN) architecture, meaning Tinker Edge R can support multi frameworks of Machine Learning (ML) models, not only that, Tinker Edge R benefits from high performance and low power consumption in comparison to desktop-grade x86 CPU, as such, it can be used in many scenarios. Advanced power design Supports dual 12V∼19V wide-range DC-in (DC jack, DC pin header) Power-protection design More connectivity options for developers Mini PCle and SIM card slots for 4G/LTE module extension Dual MIPI CSI for stereoscopic applications Compatible with popular DSI touch panel Enhanced Software Experience Machine Learning Developer Tools OS Flash Tool Intuitive Interface Technical Specifications SoC: Rockchip RK3399Pro CPU: Dual-core ARM Cortex-A72 @ 1.8GHz + Quad-core ARM Cortex-A53 @ 1.4GHz GPU: ARM Mali-T860 MP4 @ 800MHz NN Processor: Rockchip NPU Memory Size: Dual-CH LPDDR4 4GB for System + LPDDR3 2GB for NPU Storage: Onboard 16GB eMMC, 1x Micro SD card slot Display: 1 x HDMI 2.0 (up to 4K/60Hz & CEC HW Ready), 1 x Type-C (DP 1.2), 1 x MIPI DSI (4 lanes) Camera: 1 x MIPI CSI-2 (4 lane), 1 x MIPI CSI-2/DSI (4 lane) Connectivity: RJ-45 GbE LAN, 802.11ac + BT 5.0 2T2R, 1x mPCIe slot for 4G/LTE USB: 3 x USB3.2 Gen1 Type-A, 1 x USB3.2 Gen1 Type-C OTG Internal Headers: 40-pin connector for GPIO (I2C, PWM, UART, SPI, I2S, etc), DC fan header, RTC battery header, Power-On/Reset/Recovery headers Power Connector: 12V∼19V DC-in (Barrel jack 5.5Ø /2.5Ø ), 12V∼19V DC-in (4-pin header) OS Support: Debian 9 / Android 8.1 (2020 Q2) Dimension: 100 x 72 mm
