T-slot Nuts XC, XF and XD Slot nuts can be inserted directly into the T-slot from the beam face,Features a sprung steel tab to hold the nut in position even in vertical positions.,Plain square nuts (thickness 5mm) must be inserted from the beam ends.

Aluminium Hinges For left or right hand mounting of XC to XC, XC to XD, XD to XD, XC to XF or XF to XF beams. Fasteners included.

Angle Brackets XD, XF and XC Connects beam end to beam side to provide maximum stability and flexibility with minimum beam preparation.

44mm x 44mm For heavy duty structures, a range of sizes and slot configurations based on 44 mm, 64mm and 88mm widths.,Ideal for the manufacture of special purpose machines, framework, and partition structures of up to ,1 m x 2 m, with static point loads up to 500N.

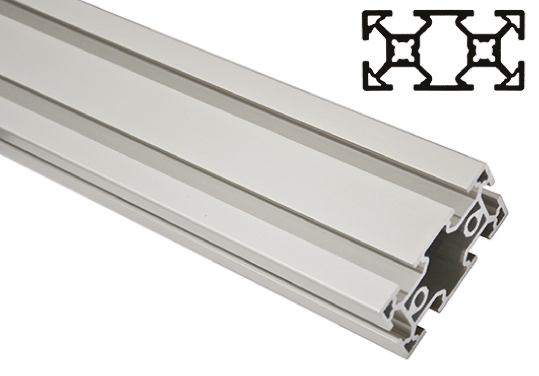

22mm x 44mm Beams For compact light duty structures, a range of sizes and slot configurations based on 22mm and 44mm widths, including special 2 and 3 T-slot sections for enclosures.The "XD" range is ideal for framework of up to 1 m square with static point loads of up to 200N.

30 x 30mm For compact light /medium duty structures, a range of sizes and slot configurations based on 30mm width.

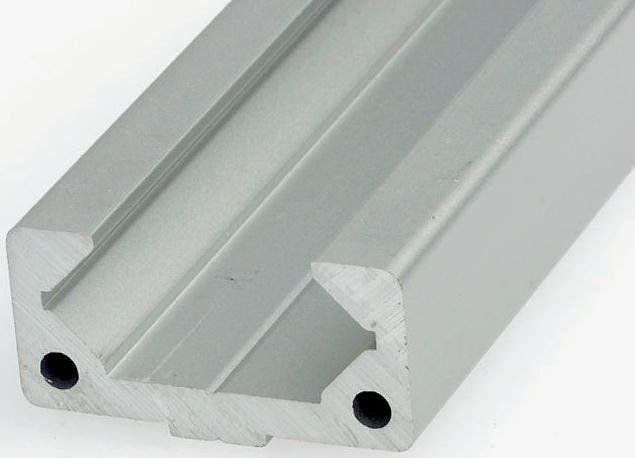

Guide Profile XC Used in conjunction with the sliding elements (Stock No. 248-9994 & 261-2396), is suitable for applications involving sliding movements of higher frequency and load, such as constantly moving pushers or pick and place units. Supplied in 3, 2 and 1m lengths for fixing at approximately 250mm centres with an M6´12 countersunk socket screw see stock no. 210-0269 and M6 T-slot nut see stock no. 248-9843Fasteners not includedEnd caps available, requiring M5 holes in the profile and screws

Fastener Yokes XC and XF Offers high vibration resistance and a neat flush finish to connect beam ends to beam side.Through hole of 12.2mm must be drilled near the beam end to accept the yoke, use drill fixture stock-no. 326-5519.,To tighten the yoke, use a ball end Allen key.,Beams may be connected end to end, requiring two yokes, two M6 x 50 caphead screws (DIN912,ISO4762) and two M6 hex nuts per joint.

Guide Profile XC Used in conjunction with the sliding elements (Stock No. 248-9994 & 261-2396), is suitable for applications involving sliding movements of higher frequency and load, such as constantly moving pushers or pick and place units. Supplied in 3, 2 and 1m lengths for fixing at approximately 250mm centres with an M6´12 countersunk socket screw see stock no. 210-0269 and M6 T-slot nut see stock no. 248-9843Fasteners not includedEnd caps available, requiring M5 holes in the profile and screws

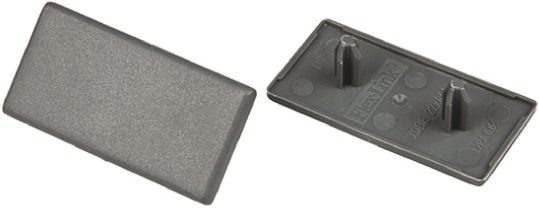

Grey Polyamide End Caps Push-on to provide a flush end to cut beams

Wheels XC, Grey Fitted with a steel ball bearing, the wheels enable simple linear motion, and moveable framework to be constructed. The wheels are available plain or with centre guide for motion in an XC (11 mm) T-slot. Both wheels come complete with spacer sleeves which make it possible to mount directly into the T-slot. Alternatively a yoke mounting is available to fit wheels to the end of XC44 beams (not XCBL).,Wheels bore size (mm) = 8.4 ,Yoke centre height (mm) = 42,Yoke width (mm) = 44

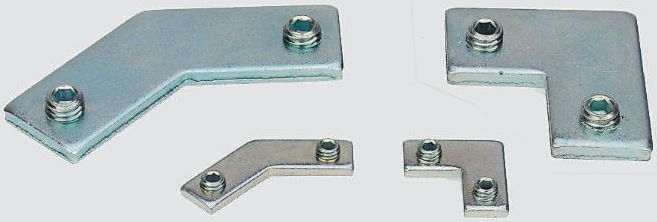

Corner Fittings XD and XC, 45° and 90° For building stable and neat framework corners.The beams must be cut accurately (45° for a 90°corner, and 22.5° for a 45° corner).Corner fittings can be placed into the T-slots and clamped against the slot with the set screws provided
