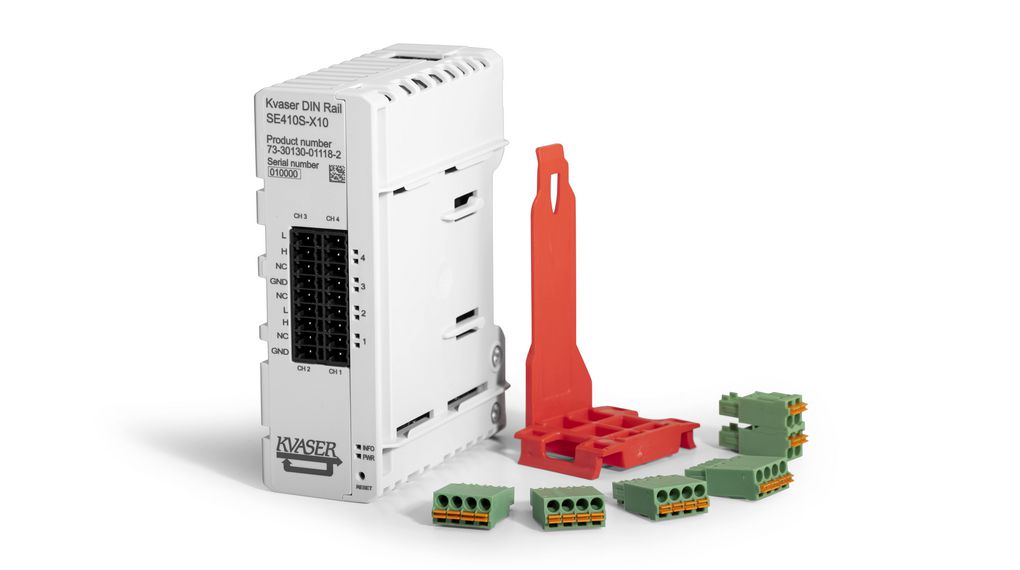

The powerful Ethernet to CAN/CAN FD interface, DIN Rail SE410S-X10, offers quick and easy installation with multi-channel capabilities. With galvanically isolated CAN channels and support for various protocols, this interface is the ideal solution for seamless communication in industrial settings. Supports CAN bit rates from 50 kbit/s to 1 Mbit/s and CAN FD bit rates up to 8 Mbit/s for versatile communication optionsGalvanically isolated CAN channels and lightweight plastic housing ensure reliable and easy mounting on DIN Rail

The Hybrid CAN/LIN is a versatile interface that is compatible with applications using CANlib and LINlib. It features a single channel that can be opened as either CAN or LIN, providing flexibility for different applications. The interface supports LIN 1.3 to 2.2 and CAN FD up to 5 Mbit/s (with correct physical layer implementation). It is powered through the USB connector and is 100% compatible with applications developed for other CAN hardware. Single channel interface that can be opened as either CAN or LINSupports LIN 1.3 to 2.2 and CAN FD up to 5 Mbit/sPowered through the USB connector100% compatible with applications using Kvaser CANlib and LINlibSupports LIN master and slave modeCompatible with protocols like J1939, CANopen, NMEA 2000, and DeviceNetEasy plug-and-play installation

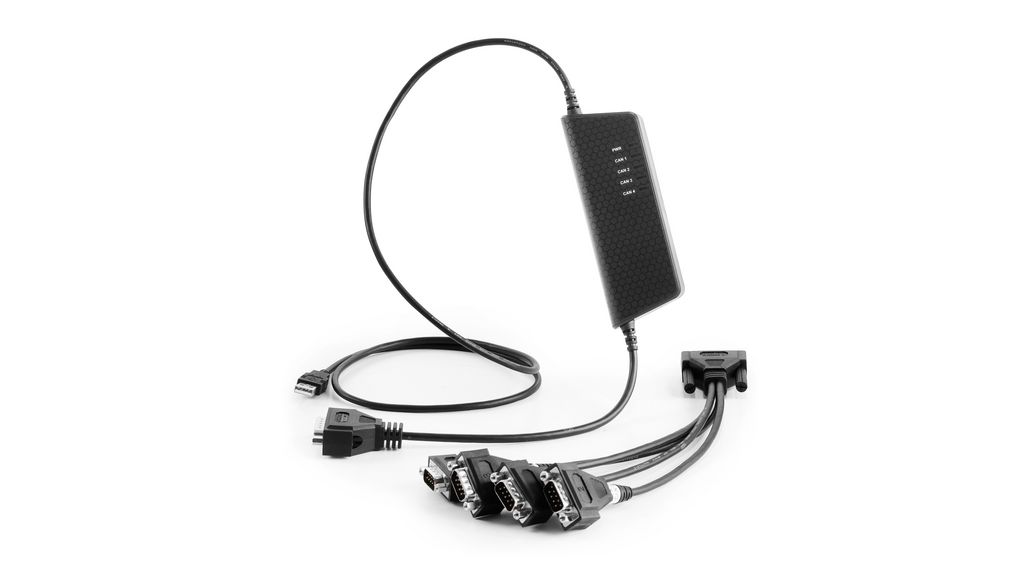

The USBcan Pro 4xHS is a high precision, portable multi-channel CAN to USB real time interface, designed to handle transmission and reception of standard and extended CAN messages on the CAN bus. With features like t programming and MagiSync, it offers seamless synchronization of time stamps across multiple MagiSync-enabled devices without the need for extra wires. Multi-channel USB CAN interface with CAN Bit Rate ranging from 40 kbit/s to 1 Mbit/sSupports CAN FD with a Bit Rate of up to 8 Mbit/s for faster data transferTimestamp resolution of 1 μs ensures accurate data handling at a rate of 20,000 msg/s per channel

The powerful Ethernet to CAN interface that allows remote access to CAN data from anywhere in the world. With built-in Power over Ethernet (PoE) and high-speed CAN connection, this device offers seamless integration and real-time data exchange. High-speed CAN connection supporting bit rates from 40 to 1000 kbpsSupport for Kvaser REST API enabling CAN data exchange with web-enabled devicesEthernet connection with auto-MDIX for easy cable detection and adjustmentBuilt-in Power over Ethernet (PoE) for data and power transmission over Ethernet cableGalvanic isolation and error frame detection for reliable data transferCompact and lightweight design with small plastic housing and J1939, CANopen, NMEA 2000®, and DeviceNet compatibilityIncludes Ethercan Factory Reset Device for IP address reset to factory defaults at the push of a buttonComes with Kvaser CANlib SDK for free development software and documentation

The four channel, high-speed CAN interface ideal for multichannel data gathering applications such as in laboratories. It offers quick and easy plug-and-play installation, high-speed ISO 11898 compliant driver circuits, and compatibility with various PCI interfaces. With galvanic isolation between the CAN-controller and the CAN-driver, this interface ensures reliable and efficient data transmission. Quick and easy plug-and-play installationHigh-speed ISO 11898 compliant driver circuitsCompliant with PCI 2.3 standardsGalvanic isolation for hardware protectionSupports CAN 2.0 A and 2.0 B (active)I/O mapped for quick reaction times2-Year Warranty for peace of mindFree Technical Support availableJ2534 and RP1210A Application Programming Interfaces available

The robust and versatile U100-X2 single-channel CAN/CAN FD to USB interface is designed to meet the needs of the evolving automotive development market. With reinforced galvanic isolation and compatibility with various protocols, this interface is also suitable for rugged applications in marine, industrial, heavy-duty vehicle, and heavy industries. Supports CAN FD, with a maximum bitrate of 8 Mbit/sIntelligent LED UI for user-friendly operationReinforced galvanic isolation design validated with 5000 VAC rms applied for 60 secondsIP67 housing for protection against dust and water immersionOperating temperature range of -40°C to +85°C for reliable performance in harsh environments

The OBD II Adapter Cable is a durable and reliable cable designed for use with interfaces or other interfaces that isolate your computer from the vehicle's electrical system. With a moulded OBD II Male Connector for Type B (24 Volt) and Type A (12 Volt) and a moulded 9 Pin DSUB Female Connector with thumbscrews, this cable is 2500 mm long and made of thermoplastic rubber. Connector P1 Moulded OBD II Male Connector for Type B (24 Volt) and Type A (12 Volt)Connector P2 Moulded 9 Pin DSUB Female Connector with thumbscrewsCable 2500 mm long cable made of durable thermoplastic rubberShielded Twist Pair design for CAN H and CAN L signalsReference power not needed for High-Speed CAN communicationAll unused positions are populated to ensure proper functionality

The CAN bus hub features three female and one male D-SUB9 connectors. This configuration allows for easy connection of multiple CAN bus devices, facilitating communication and data exchange within a CAN network. LED indicator for power statusCE and RoHS certifications for quality assurance

The Hybrid Pro CAN/LIN is a high-quality interface device that allows for seamless communication between CAN and LIN networks. This versatile device offers compatibility with applications using CANlib and LINlib, making it an ideal choice for a wide range of industries and applications. With support for both CAN FD and LIN 1.3 to 2.2, the Hybrid Pro CAN/LIN provides exceptional flexibility and performance. Its compact design and plug-and-play installation make it easy to use and integrate into any system. Supports both LIN master and LIN slave modeSupports CAN FD, up to 5 Mbit/sFully compatible with J1939, CANopen, NMEA 2000, and DeviceNetQuick and easy plug-and-play installationPowered through the USB connector

The LEAF LIGHT HS V2 M12 interface is designed for marine electronics systems, providing a simple connection between a PC and the on-board computer. It is ideal for diagnosing NMEA 2000 bus issues, configuring and flashing bus nodes, monitoring bus traffic, and stimulating or emulating nodes. Standard type 'A' USB connector for easy connectionCapable of sending up to 8000 messages per second with 100 microsecond accuracySupports both 11-bit and 29-bit identifiersHigh-speed CAN connection compliant with ISO 11898-2Galvanic isolation for protection from power surges or shocksFree software resources including documentation and CANlib SDK for developing software applications

The versatile dual channel interface that allows engineers to assign channels independently as CAN or LIN. With high-speed CAN support up to 1Mbit/s and LIN 2.2A support up to 20kbit/s, this interface is a universal tool for automotive communications. It features quick plug-and-play installation, galvanic isolation, and compatibility with various protocols like J1939 and CANopen. Supports High Speed CAN up to 1Mbit/s and LIN up to 20kbit/sCapable of sending up to 20000 messages per second per CAN channelSupports CAN FD up to 5Mbit/s with proper physical layerQuick and easy plug-and-play installationGalvanically isolated CAN channelsFully compatible with J1939, CANopen, NMEA 2000 and DeviceNetExtended operating temperature range from -40 to 85°C

The Kvaser D-sub 9 pin 120 Ohm termination adapter is designed to provide quick and easy termination to any Kvaser high-speed CAN product. It features a built-in 120 Ohm CAN terminating resistor, making it ideal for terminating a CAN node without internal termination or when no CAN node is connected to the bus. 9-pin male D-Sub connector at one end and a 9-pin female D-Sub socket at the other120 ohm terminating resistor between pins 2 and 7Supports operating systems like Linux, Win Vista, Win 10, Win 8, Win 7, and Win XPCertified with CE and RoHS standardsOperating temperature range of -30.00 to 85.00 degrees Celsius
