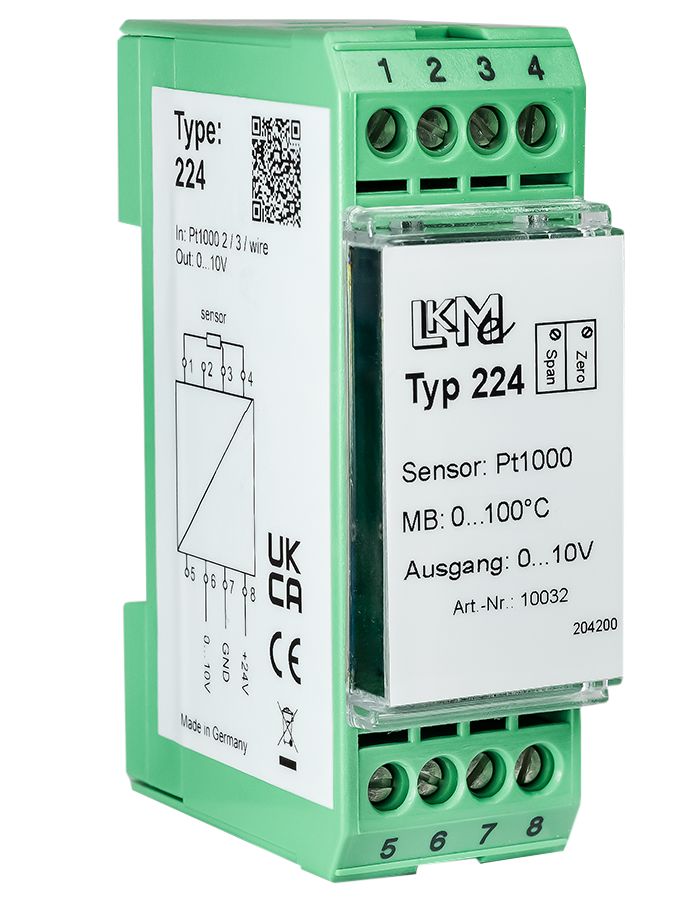

The LKMelectronic Temperature Transmitter is an analogue transmitter for Pt100, Pt1000 temperature sensors according to DIN EN 60751 for mounting on the 35 mm DIN rail. It converts the temperature dependent resistance signal of the sensors into an output voltage signal of 0 to 10V. The output signal is highly accurate temperature linear. The transmitter is delivered from the factory calibrated to customer specifications. Zero and span controllerReverse polarity protectedLead resistances is eliminatedPossible without loss of accuracyEmission and immunity acc. To EN 61326 standard

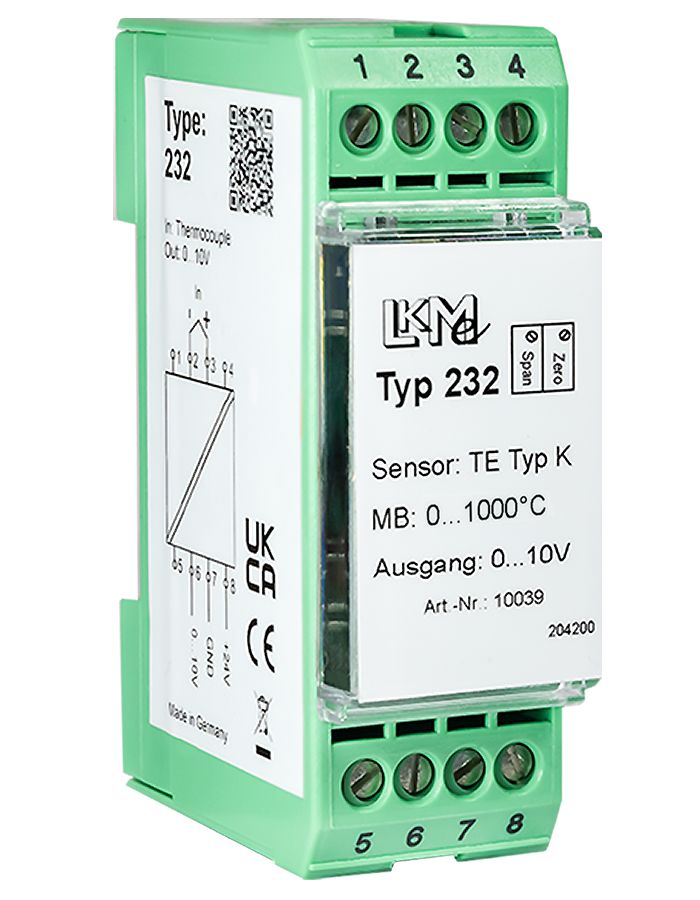

The LKMelectronic analog transmitter for base metal thermocouples according to DIN EN 60584 and DIN 43710. The transmitter type 232 is designed for rail mounting. It has galvanic isolation between input and output. The transmitter is supplied from the factory calibrated to customer specifications. A span and zero controller enables subsequent fine adjustment. Material polycarbonateClamping type screw terminals

The LKMelectronic analog transmitter for various thermocouples according to DIN EN 60584 or DIN 43510. The temperature compensation takes place in the transmitter itself. Depending on the measuring range and thermocouple type, the temperature is adjusted in such a way that the temperature errors are minimized. Subsequent fine adjustment can be performed by means of span and zero controllers. Operating temperature range -40 to 85 °CPotting compound polyurethane

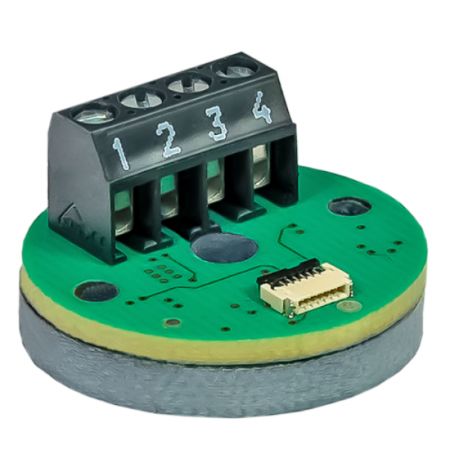

The LKMelectronic digital programmable transmitter for resistance sensors with 4 to 20mA current output for mounting in the J-head. Sensor type and measuring range can be defined by means of PC and programming cable. The sensors are operated in 2-wire circuit. Any corrections to eliminate the line resistance can be made during programming. Operating temperature range -40 to 85 °CPotting compound polyurethane

The LKMelectronic Temperature Transmitter is a digital, programmable, galvanically isolated transmitter in 3 wire technology for mounting on the standard rail. It is especially designed for use in motor vehicles. It is characterized by high noise immunity and a wide supply voltage range. Even with a supply voltage of 8V, a linear output signal of 20 mA is achieved. The transmitter can be programmed for different thermocouples according to DIN EN 60584 3. The temperature compensation is done in the transmitter itself. Narrow designReverse polarity protectedShock resistance has been optimizedlittle space is required on the standard railEmission and noise immunity acc. To EN 61326 standard

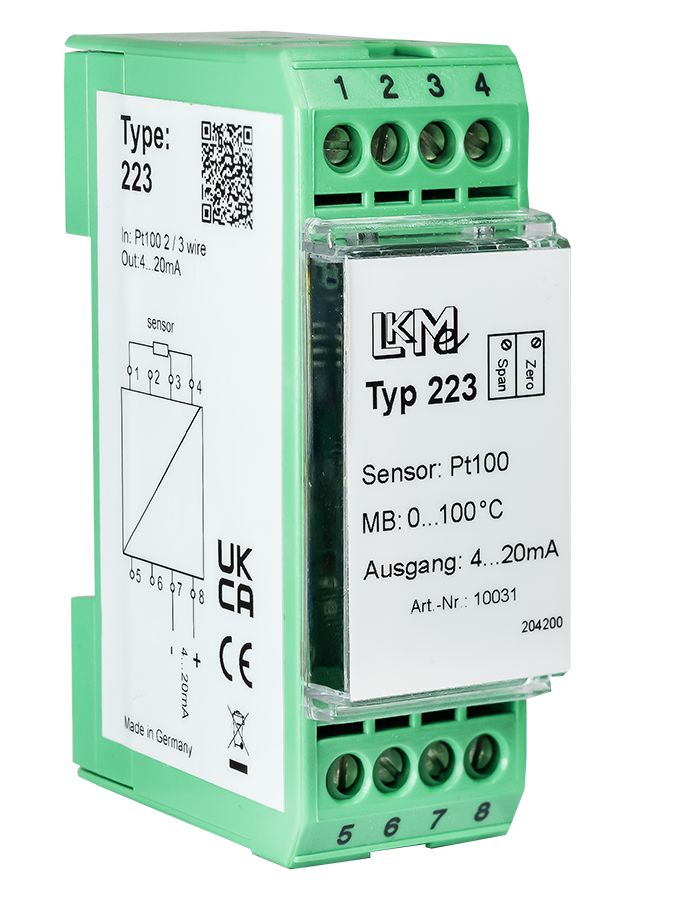

The LKMelectronic analog transmitter for Pt100, Pt1000 temperature sensors according to DIN EN 60751. Events for mounting on the 35mm DIN-rail. The output signal is highly accurate temperature linear. The transmitter is delivered from the factory calibrated to customer specifications. A span and zero controller allows subsequent fine adjustment. The influence of lead resistances is largely eliminated by the use of a 3 wire circuit. A larger distance between sensor and transmitter is therefore possible without loss of accuracy. If possible, all three leads should be of the same length and have the same cross-section. Material polycarbonateClamping type screw terminals

The LKMelectronic analog transmitter for Pt100, Pt1000 temperature sensors according to DIN EN 60751 for mounting on a DIN rail. The output signal is highly accurate temperature linear. The transmitter is delivered from the factory calibrated to customer specifications. A span and zero controller allows subsequent fine adjustment. The influence of lead resistances is eliminated by using a 3 wire circuit. A larger distance between sensor and transmitter is therefore possible without loss of accuracy. All three leads should be as long as possible and made of the same conductor material with the same cross section. Material polycarbonateClamping type screw terminals

The LKMelectronic Temperature Transmitter is an analogue transmitter for Pt100, Pt1000 temperature sensors according to DIN EN 60751 for mounting on the 35 mm DIN rail. It converts the temperature dependent resistance signal of the sensors into an output voltage signal of 0 to 10V. The output signal is highly accurate temperature linear. The transmitter is delivered from the factory calibrated to customer specifications. Zero and span controllerReverse polarity protectedLead resistances is eliminatedPossible without loss of accuracyEmission and immunity acc. To EN 61326 standard

The LKMelectronic Temperature Transmitter is a digital, programmable transmitter for resistance sensors with 4 to 20mA current output for mounting on 35mm top hat rail. By means of PC and our universal interface S1 sensor type, measuring range and circuit type can be defined. 14 bit resolutionZero and span controllerReverse polarity protectedEmission and immunity acc. To EN 61326 standard

The LKMelectronic digital configurable transmitter for Pt100/Pt1000 with 4 to 20mA current output. Via four DIP switches 12 different measuring ranges can be set. Smaller corrections can be made on site by means of a zero controller. The sensor is connected in 3/2 wire circuit. Clamp type screw terminalsOperating temperature range -40 to 85 °C

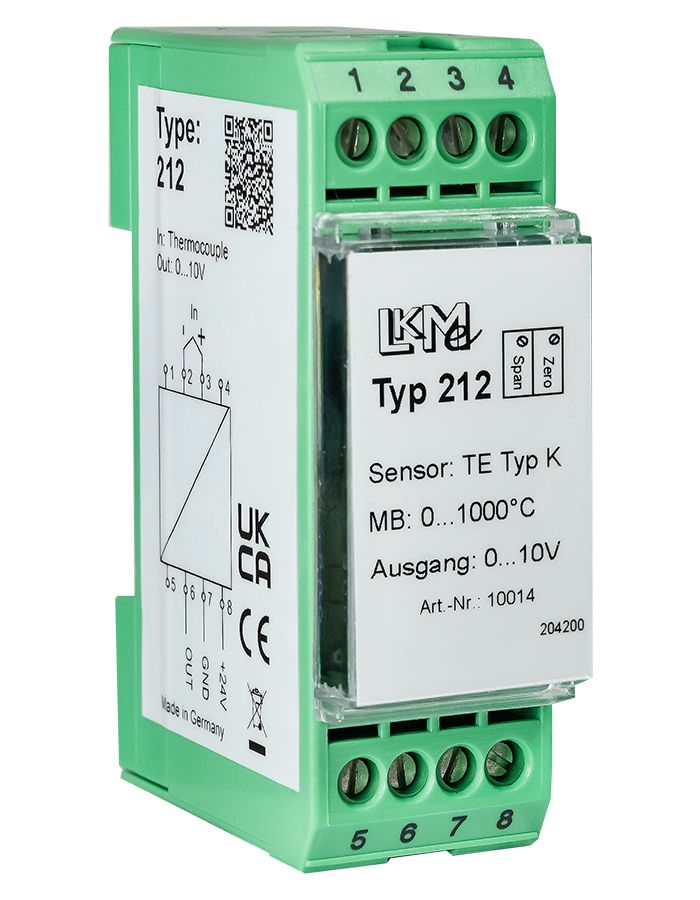

The LKMelectronic analog transmitter for mounting on the standard rail. It can be designed for various thermocouples according to DIN EN 60584 and DIN EN 43710. The temperature compensation takes place in the transmitter itself. The transmitter is delivered from the factory calibrated to customer specifications. Depending on the measuring range and thermocouple type, the adjustment is performed in such a way that the occurring temperature errors are minimized. A voltage-linear adjustment for further processing of the measured values in the PC or PLC can also be carried out. Material polycarbonateClamping type screw terminals

The LKMelectronic digital configurable transmitter for Pt100/Pt1000 with 4 to 20mA current output. Via four DIP switches 12 different measuring ranges can be set. Smaller corrections can be made on site by means of a zero controller. The sensor is connected in 3/2 wire circuit. Clamp type screw terminalsOperating temperature range -40 to 85 °C
