The Prevost hose reels for compressed air has 8 x 12 mm hose diameter. It has 12 bar pressure. It has galvanised steel housing with UV resistant polyester-based electrostatic coating, treated steel spring.
Swivel Bracket: Yes
Particularity: Slow Retract
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 800L/min
Operating Temperature Range: -15°C → +65°C
Particularity: Slow Retract
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 800L/min
Operating Temperature Range: -15°C → +65°C

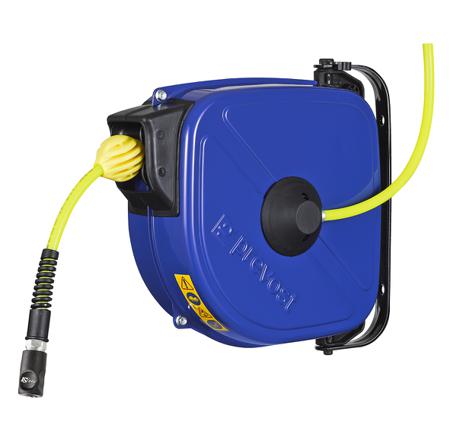

Wall Mounted 12m Air Hose Reel, 8mm Inner Diameter, 12mm Outer Diameter, 800L/min Flow Rate
Manufacturer:
PREVOST
Manufacturer Part No:
DRFB 0812CS
Enrgtech Part No:
ET21620346
Warranty:
Manufacturer
£ 298.02
Checking for live stock
Hose Length:
12m
Hose Inner Diameter:
8mm
Hose Outer Diameter:
12mm
Hose Included:
Yes
Operating Pressure:
12bar
Mounting:
Wall Mounted
Retraction Operation:
Spring Return
Coupling Type:
CSI 06
Flow Rate:
800L/min
