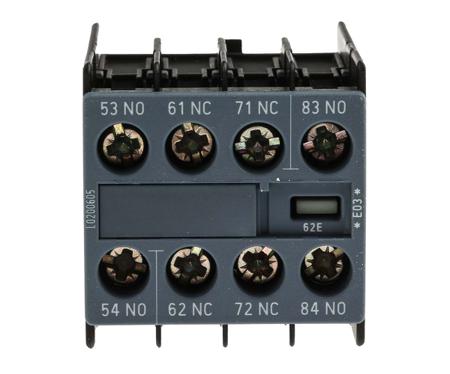

3rh2911-1ga22 Snap Front Auxiliary Contact with Screw Terminal, 2NO/2NC, 10 A, 600 V dc, 690 V ac

Auxiliary Contacts - 3RH Range Siemens range of auxiliary contact bloacks to suit the 3RH contactors. Front mounting position Current rating; 6A Accepts cables up to 2 x 2.5mm 2 1 x block per contactor, 1 x block per relay Note * These are make before break contacts Siemens Sirius Range Contactor & Control Relays Siemens control gear for feeders up to 5.5kW. The complementary nature of the devices allows fast and simple assembly, for example, of motor starters and reversers. A perfect match between contactors, overloads, circuit breakers and accessories for the same power ratings provides a uniform panel appearance and the standard widths with no side-by-side mounting derating allows for space saving.

For more information please check the datasheets.

Siemens 3RH2911-1GA22 Snap Front Auxiliary Contact with Screw Terminal, 2NO/2NC, 10 A, 600 V dc, 690 V ac

Name: Snap Front Auxiliary Contact with Screw Terminal, 2NO2NC, 10 A, 600 V dc, 690 V ac
Brand: Siemens
SKU: ET13910511
Availability: InStock

Manufacturer:

Siemens

Manufacturer Part No:

3RH2911-1GA22

Enrgtech Part No:

ET13910511

Warranty:

Manufacturer

£ 13.85

Checking for live stock

Contact Voltage Rating:

600 V dc, 690 V ac

Normal State Configuration:

2NC + 2NO

Operating Temperature Range:

-25 → +60 °C

Contact Current Rating:

10 A

Series:

3RH2

Minimum Operating Temperature:

-25°C

Pole and Throw Configuration:

Mounting Style:

Snap-On

Range:

Sirius Innovation

Number of Contacts:

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Catalogue - Contactors and Contactor Assemblies(Technical Reference)

Siemens Sirius Migration(Technical Reference)

Switching Devices for Load Feeders(Technical Reference)

Solutions for frequent switching or soft starting(Technical Reference)

Sirius Innovations Switching Devices(Technical Reference)

Sirius Innovation Accessory Guide(Technical Reference)

Datasheet_3RH2911-1GA22(Technical Reference)

Sirius Innovation Catalogue(Technical Reference)

Sirius: Migrating From Classic to Innovation(Technical Reference)

Environmental Product Declaration(Technical Reference)

Accessories Data Sheet(Technical Reference)

Environmental Product Declaration - Overview(Technical Reference)

Basic Information(Technical Reference)

Siemens 3RH2911-1GA22 Snap Front Auxiliary Contact with Screw Terminal, 2NO/2NC, 10 A, 600 V dc, 690 V ac

Product Reviews
