Contactors – 3RT2 Range
The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW
Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

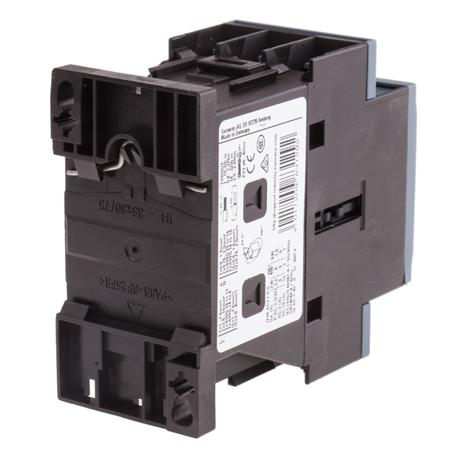

SIRIUS 3RT Size S0, 3RT2 Contactor, 110 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac
Manufacturer:
Siemens
Manufacturer Part No:
3RT2023-1AF00
Enrgtech Part No:
ET14119206
Warranty:
Manufacturer
£ 33.21
Checking for live stock
Coil Voltage:
110 V ac
Number of Poles:
3
Contact Voltage Rating:
400 V ac
Contact Current Rating:
9 A
Range:
SIRIUS 3RT
Power Rating:
4 kW
Series:
Size S0, 3RT2
Normal State Configuration:
3NO
Number Of Auxiliary Contacts:
2
Terminal Type:
Screw
Length:
85mm
Width:
45mm
