Schneider Electric Power Meters - Basic Multi-function - PM5000 Series
Providing an ideal solution for cost management applications, the PM5000 Series features measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pinpoint energy savings, optimise equipment efficiency and utilisation as well as perform a high-level assessment of the power quality of an electrical network.
- Each unit within this range is 96 x 96 mm, they all have a modern, graphical display
- All three phases, neutral and ground can be monitored simultaneously
- Features bright, anti-glare display accompanied by large characters and powerful backlighting which is great for reading even when within extreme lighting conditions and viewing angles
- The menus are very easy to understand with 8 selectable languages, the menu also has graphics and icons to make learning about your electrical network more visually friendly
- Each device has a global billing certification
- Super easy to install, the power meter mounts using two clips - no tools are required
- Even easier to operate with intuitive navigation
- Suitable for a wealth of applications including circuit breaker monitoring and control, cost management (sub billing/tenant metering & cost allocation), Network management (basic power monitoring, min/max monitoring with timestamp), Alarming and WAGES monitoring

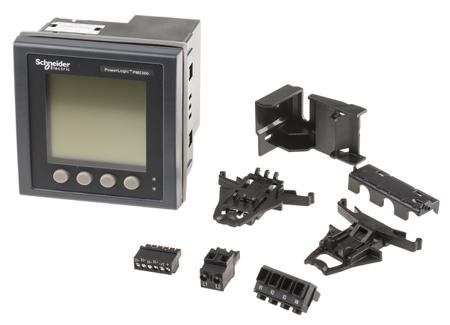

3 Phase LCD Digital Power Meter, Type
Manufacturer:
Schneider Electric
Manufacturer Part No:
METSEPM5320
Enrgtech Part No:
ET14097273
Warranty:
Manufacturer
£ 556.18
Checking for live stock
Series:
PM5000
Cutout Width:
92mm
Cutout Height:
92mm
Display Type:
LCD
Number of Phases:
3
Number of Outputs:
2
Pulse Output:
Yes
Communication Port Type:
insulation 2500 V BACnet IP, Modbus TCP/IP at 10/100 Mbit/s
Number of Inputs:
2
Depth:
72mm
Meter Accuracy:
±0.5 %
Minimum Temperature:
-25°C
