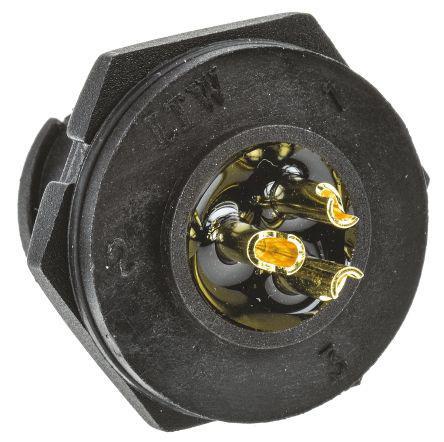

The Amphenol BD 03PMFS LC7001 is a rugged, three-pin panel-mount circular connector from Amphenol LTW’s BD Series, designed especially for demanding industrial environments. With bayonet locking, gender-specific female socket contacts in a robust nylon housing, this industrial circular connector delivers dependable sealing and long-term reliability, whether deployed indoors or in harsh outdoor settings.

Why Choose the Amphenol Industrial Circular Connector?

When you need a compact, durable connector that can withstand tough conditions, the BD 03PMFS LC7001 stands out. Its IP67 (unmated) waterproof rating and over 1,000 mating cycles make it ideal for applications in industrial automation, outdoor equipment, and marine systems. The solder cup contact design provides secure connections and easy assembly, while the bayonet locking mechanism ensures fast, reliable mating under vibration or stress. It’s a proven option where both performance and cost effectiveness matter.

Product Core Features:

  • IP67-rated for environmental protection (dust-tight and waterproof when unmated)
  • Bayonet-style locking mechanism for fast, secure mating with vibration resistance
  • Three-pin panel-mount receptacle with solder cup female contacts
  • Gold-plated copper alloy contacts
  • Nylon (glass-filled) housing, lightweight yet highly impact-resistant
  • Wide operating temperature range
  • Durability exceeding 1,000 mating cycles
  • Voltage rating up to ~500 V
  • UL recognised and RoHS compliant.

Amphenol BD-03PMFS-LC7001, BD Series, 3 Pole Panel Mount Connector Plug, IP67, Female Contacts, Bayonet Mating

Manufacturer:
Manufacturer Part No:
BD-03PMFS-LC7001
Enrgtech Part No:
ET14157242
Warranty:
Manufacturer
£ 8.98 £ 6.29
Checking for live stock
Current Rating:
5.0A
Mating Type:
Bayonet
Mounting Type:
Panel Mount
IP Rating:
IP67
Series:
BD
Body Orientation:
Straight
Voltage Rating:
500.0 V
Contact Gender:
Female
Housing Material:
Nylon
Plug/Socket:
Socket
Connector Size:
Standard
Contact Plating:
Gold
Termination Method:
Solder
Number of Contacts:
3
Contact Material:
Copper
pdf icon
ABD-03PMFS-LC7001 - Datasheet(Technical Reference)
pdf icon
Amphenol LTW Circular connector Data Sheet(Technical Reference)
