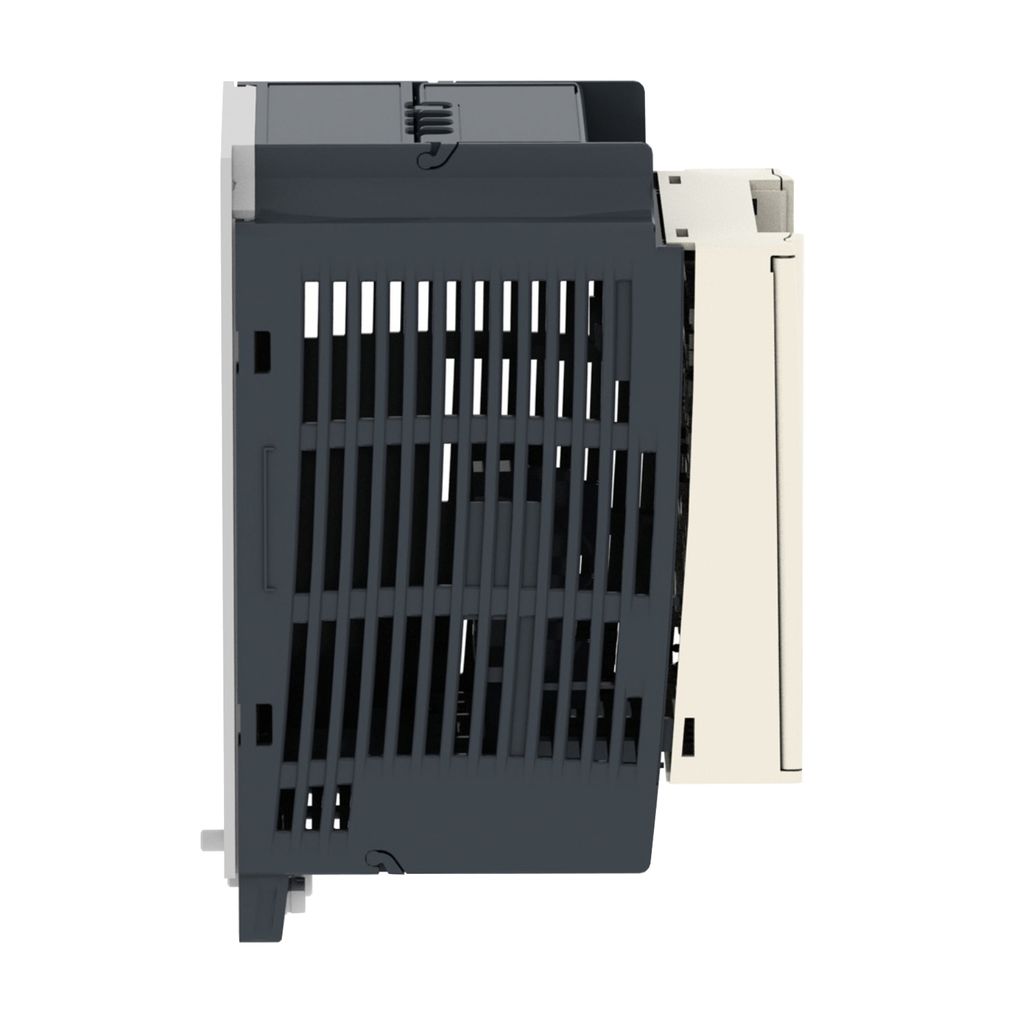

Schneider Electric ATV12H037F1 Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.5hp and a rated voltage from 100V to 120V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. • Narrow width of 72mm for installation in tight cabinet spaces
• 0dB noise level for workplace comfort
• Insulation between power and control units to prevent electric shocks
• Maximum data transfer rate of 38.4kbit/s for quick signal transmission
• Broad operating temperature range of -10°C to +40°C for use in demanding conditions Applications • Assembly lines
• Airport terminals
• Elevators and escalators Is this inverter drive touch-proof? This inverter drive has an IP20 rating, which means that it's touch-proof and protected against tools and objects larger than 12mm.
