Altivar ATV320 Series
Professional range of AVT320 Variable speed drives from Schneider Electric. The Altivar machine AVT320 drive is a frequency inverter for 380 V to 500 V 3 phase asynchronous and synchronous motors rated from 0.18 KW to 15 KW and features more than 150 functions and is robust, compact and easy to install. The Logic function offers simple control system functions. With various communication cards available as options, the Altivar AVT320 drive integrates perfectly into the main control system architectures. All models are highly reliable and excellent quality.
Features and Benefits
Easy-fit communication cards in cassette format.
STO: Safe Torque Off safety function
SLS: Safely Limited Speed safety function
SS1: Safe Stop 1 safety function
SMS: Safe maximum Speed
GDL: Guard Door Locking
Different mounting options depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side)
Applications
150 further functions, including application-specific functions. (Conveying, cutting, hoisting, etc.)

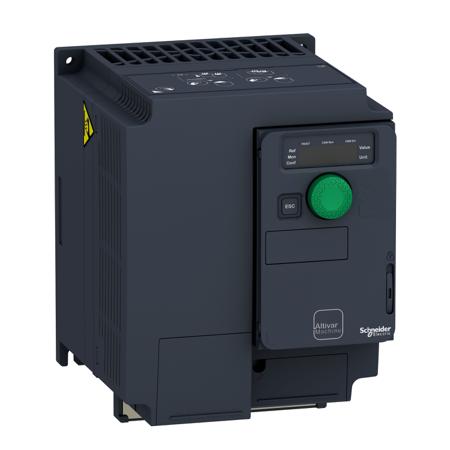

ATV320 Variable Speed Drive 3 kW with EMC Filter, 3-Phase In, 400 V ac, 11.1 A @ 380 V ac
Manufacturer:
Schneider ElectricManufacturer Part No:
ATV320U30N4C
Enrgtech Part No:
ET16747413
Warranty:
Manufacturer
£ 1115.18
Checking for live stock
Current Rating:
11.1 A
Supply Voltage:
400 V ac
For Use With:
Asynchronous Motors, Synchronous Motors
Function:
Motor Control
Better World Claim:
Saves energy
Standards Met:
CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL
Drive Type:
Variable Frequency
Overall Length:
140mm
Interface:
RS-485
Overall Depth:
184mm
IP Rating:
IP20
STO:
Yes
