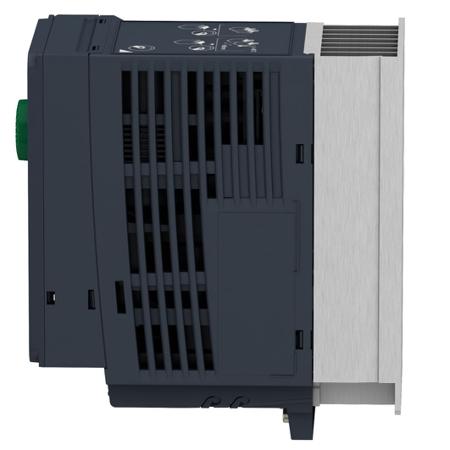

atv320u06m2c Schneider Electric ATV320 Variable Speed Drive 0.55 kW with EMC Filter, 1-Phase In, 230 V ac, 7.9 A @ 200 V ac

Altivar ATV320 Series Professional range of AVT320 Variable speed drives from Schneider Electric. The Altivar machine AVT320 drive is a frequency inverter for 380 V to 500 V 3 phase asynchronous and synchronous motors rated from 0.18 KW to 15 KW and features more than 150 functions and is robust, compact and easy to install. The Logic function offers simple control system functions. With various communication cards available as options, the Altivar AVT320 drive integrates perfectly into the main control system architectures. All models are highly reliable and excellent quality. Features and Benefits Easy-fit communication cards in cassette format. STO: Safe Torque Off safety function SLS: Safely Limited Speed safety function SS1: Safe Stop 1 safety function SMS: Safe maximum Speed GDL: Guard Door Locking Different mounting options depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side) Applications 150 further functions, including application-specific functions. (Conveying, cutting, hoisting, etc.)

For more information please check the datasheets.

Schneider Electric ATV320 Variable Speed Drive 0.55 kW with EMC Filter, 1-Phase In, 230 V ac, 7.9 A @ 200 V ac

Name: Schneider Electric ATV320 Variable Speed Drive 0.55 kW with EMC Filter, 1-Phase In, 230 V ac, 7.9 A @ 200 V ac
Brand: Schneider Electric
SKU: ET16888398
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

ATV320U06M2C

Enrgtech Part No:

ET16888398

Warranty:

Manufacturer

£ 367.03

Checking for live stock

Current Rating:

7.9 A

Supply Voltage:

230 V ac

For Use With:

Asynchronous Motors, Synchronous Motors

Function:

Motor Control

Better World Claim:

Saves energy

Standards Met:

CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL

Drive Type:

Variable Frequency

Overall Length:

72mm

Phase:

Overall Depth:

143mm

IP Rating:

IP20

STO:

Yes

Altivar ATV320 Catalogue(Technical Reference)

Manual - Variable Speed Drives(Technical Reference)

Instruction Sheet - ATV320(Technical Reference)

Product Environmental Profile(Technical Reference)

Datasheet ATV320U06M2C(Technical Reference)

Green Premium Ecolabel(Technical Reference)

ATV312 32 to ATV320 X-Ref(Technical Reference)
