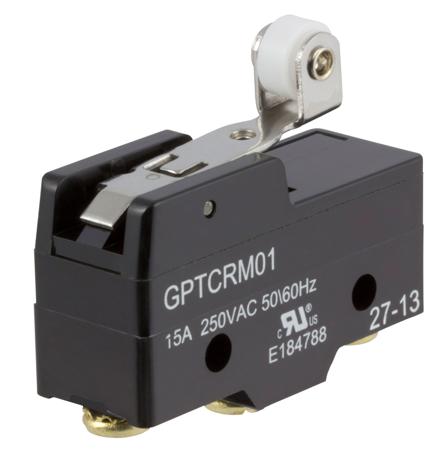

ZF Microswitch
The ZF GP series Microswitch has a short roller actuator and a contact rating of 15A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.
Features and Benefits
Operating forces is 1.56N
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054
Ultra small movement differential
Fitted with large brass screw terminals
Mechanical life is up to 1 million cycles
Operating temperature ranges between -20°C and 85°C
Case and cover material is phenolic Certifications UL 1054
Short Roller Lever Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDT
Manufacturer:
ZF
Manufacturer Part No:
GPTCRM01
Enrgtech Part No:
ET13837045
Warranty:
Manufacturer
£ 17.79
Checking for live stock
Actuator Type:
Short Roller Lever
Terminal Type:
Screw
Contact Current Rating:
15 A @ 250 V ac
Contact Configuration:
SPDT
Operating Force:
1.56 N
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Alloy
Mechanical Life:
1000000Operations
Release Force:
0.39N
Operating Temperature Range:
-20 → +85°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=517791&DisplayLogo=False
