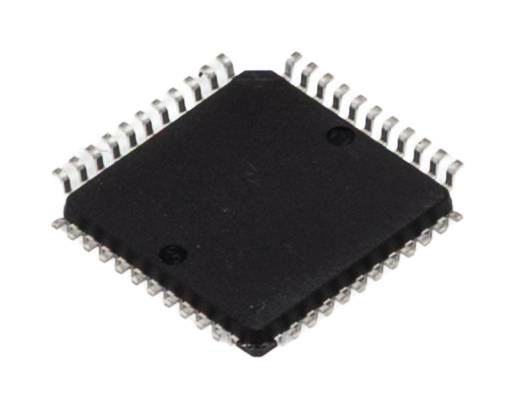

P8X32A-Q44, 32bit P8X32A Microcontroller, Propeller, 80MHz, 64 kB ROM, 44-Pin LQFP

Family Name:

Propeller

Package Type:

LQFP

Mounting Type:

Surface Mount

Pin Count:

44

Device Core:

P8X32A

Data Bus Width:

32bit

Program Memory Size:

64 kB

Maximum Frequency:

80MHz

RAM Size:

32.768 kB

USB Channels:

1 x Device

Number of SPI Channels:

0

Number of UART Channels:

0

Typical Operating Supply Voltage:

2.7 → 3.6 V

Number of USART Channels:

0

Number of CAN Channels:

0

Number of I2C Channels:

0

Height:

1.4mm

Number of LIN Channels:

0

Dimensions:

10 x 10 x 1.4mm

Instruction Set Architecture:

RISC

Program Memory Type:

ROM

Number of PCI Channels:

0

Number of Ethernet Channels:

0

Width:

10mm

Length:

10mm

Maximum Operating Temperature:

+125 °C

Maximum Number of Ethernet Channels:

0

Minimum Operating Temperature:

-55 °C
