BNS 260, Miniature Coded Smallest design Actuation only possible with BPS260, available separately Left-hand or right-hand side versions for door-mounting Control category up to 4 to EN954-1 IP67 protection Connector 8 mm, 6-pole, latching interlocking Dimensions: L13 x W26 x H36 mm Note Actuating magnet not included, see accessories, for example 617-5374 // 617-5380 Caution EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS260), magnet (BPS260) and a safety monitoring module (AES) is used. Standards IEC/EN60947-5-3, BG-GS-ET-14

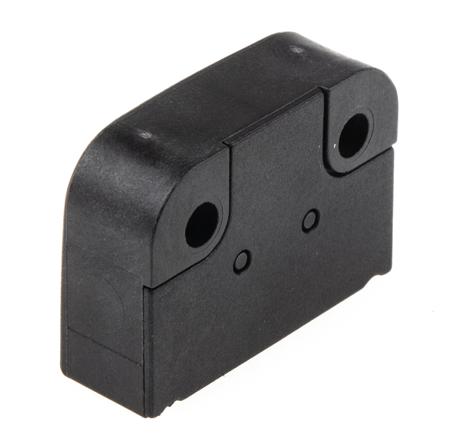

Schmersal BPS 260-1 Actuator, For Use With BNS 260 Safety Switch

Manufacturer:
Manufacturer Part No:
BPS 260-1
Enrgtech Part No:
ET13809590
Warranty:
Manufacturer
£ 17.38
Checking for live stock
IP Rating:
IP67
Series:
BPS 260
Length:
36mm
Actuator Included:
Yes
Housing Material:
Glass Fibre Reinforced Thermoplastic
Width:
13mm
Depth:
13mm
Actuator Type:
Coded
Range:
BPS 260
Sensor Principle:
Magnetic
Supply Current:
400mA
pdf icon
Machine Guarding and Safety Range Overview(Technical Reference)
pdf icon
BNS Series Coded-MagnetSensors Data Sheet(Technical Reference)
