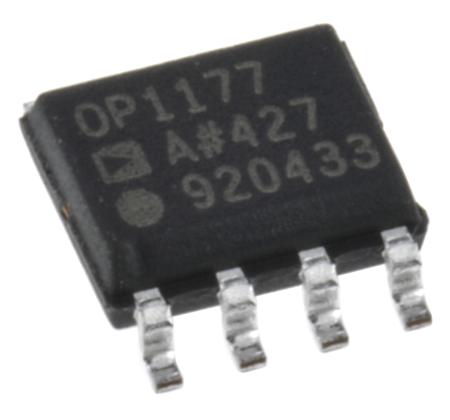

OP1177ARZ , Op Amp, 1.3MHz, 8-Pin SOIC

Mounting Type:

Surface Mount

Package Type:

SOIC

Power Supply Type:

Dual

Number of Channels per Chip:

1

Pin Count:

8

Typical Gain Bandwidth Product:

1.3MHz

Typical Dual Supply Voltage:

±12 V, ±3 V, ±5 V, ±9 V

Typical Slew Rate:

0.7V/µs

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

Rail to Rail:

No

Typical Voltage Gain:

126 dB

Width:

4mm

Dimensions:

5 x 4 x 1.5mm

Height:

1.5mm

Length:

5mm

Typical Input Voltage Noise Density:

7.9nV/√Hz
