The TE Connectivity SGI2.0 header assembly is miniaturized, reliable connector that provide cost saving opportunities. The ideal solution to help save space on printed circuit boards (PCB) with added reliability through our optional terminal position assurance (TPA) accessories. The Use of IDC technology enables mass termination to provide higher automatic assembly efficiency and offers strain relief features and VDE certifications. The temperature range is -40 to 105 °C and single circuit application.
Not Sealable
Vertical orientation
Connector & keying code A
Housing material 66 nylon
UL flammability rating UL 94V-0
Vertical orientation
Connector & keying code A
Housing material 66 nylon
UL flammability rating UL 94V-0

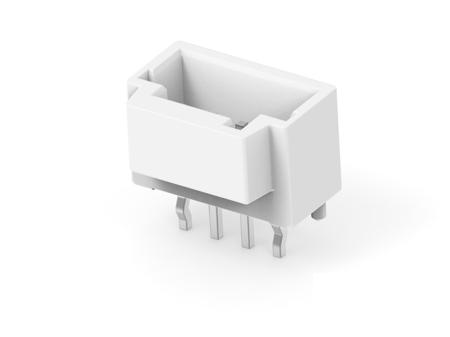

GRACE INERTIA 2.0 Series Vertical Board Mount PCB Header, 4 Contact(s), 2mm Pitch, 1 Row(s), Shrouded
Manufacturer:
TE Connectivity
Manufacturer Part No:
1-2232826-4
Enrgtech Part No:
ET26067328
Warranty:
Manufacturer
£ 0.25
Checking for live stock
Series:
GRACE INERTIA 2.0
Pitch:
2mm
Number of Contacts:
4
Number of Rows:
1
Body Orientation:
Vertical
Shrouded/Unshrouded:
Shrouded
Connector System:
Wire-to-Board
Mounting Type:
Board Mount
Contact Plating:
Tin
Series Number:
1-2232826
Current Rating:
2A
Voltage Rating:
50 V ac
