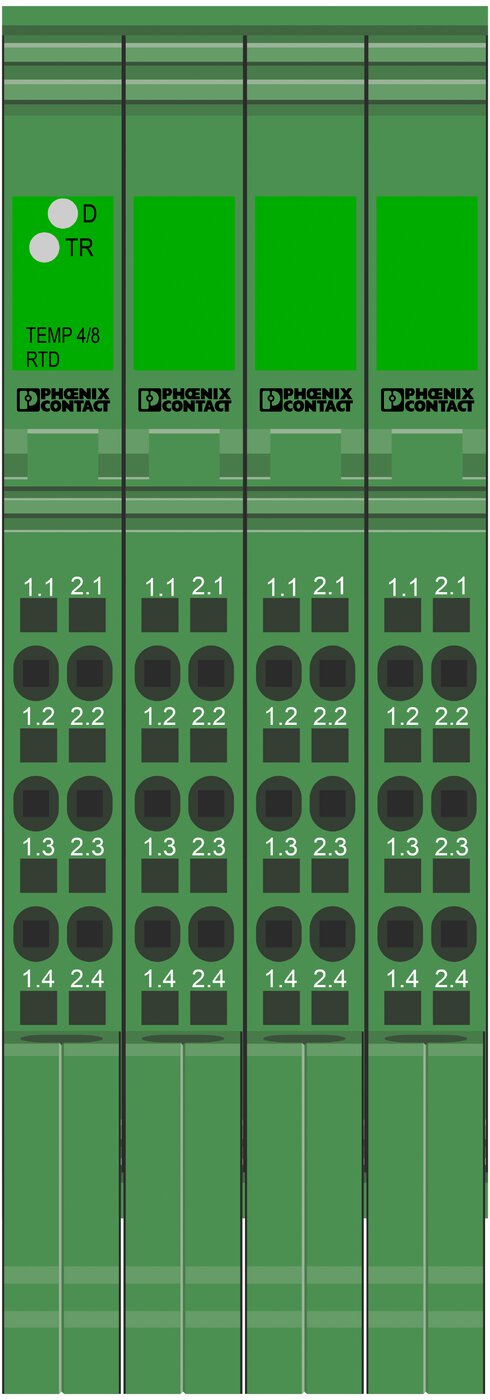

Phoenix Contact Analogue Input Module, 8 Inputs, Resistive Temperature Sensor Type - IB IL TEMP 4/8 RTD-PAC - 2863915 Need to get a measure from your temperature detector? Link it to your PLC with this analogue input module from Phoenix Contact. The unit has eight channels, which you can use to connect the same number of resistive sensors, so it's ideal for complex setups.
As the module has a wide resistance measuring range between 0 and 400Ω, it's a highly versatile option. It's quick and easy to mount too – just snap it onto a DIN rail and your work's done.
Harsh conditions are no match for this product, as it withstands temperatures between -25°C and +55°C. Modules like this one can be found in applications such as industrial communications, power plants and the manufacturing sector. • IP20 rating means it's touch-proof and shielded from objects larger than 12mm
• Low 190g weight means minimal pressure on your setup
• Broad operating humidity range between 10 and 95% RH for use in steamy settings
• Compact dimensions of 48.8 (W) x 136.8 (H) x 71.5mm (D) so it doesn't take up much space on your DIN rail Temperature and resistance measurement in the millisecond range Diagnostic and status indicators Measured values can be represented in three different formats Robust inputs ideal for use in harsh industrial environments with electromagnetic interference Communication either via process data or parameter channel (PCP) Connection of sensors in 2- and 3-conductor technology The channels are parameterized independently of one another via the bus system 8 inputs for resistive temperature sensors and linear resistors up to 20 kΩ
