RY Series
3.2mm pinning
Switching voltage: 250Vac
Creepage and clearance: 8mm
Operating temperature: -40 to + 70°C
Dimensions: H 12.3mm, W 28.5mm, D 10mm
Switching voltage: 250Vac
Creepage and clearance: 8mm
Operating temperature: -40 to + 70°C
Dimensions: H 12.3mm, W 28.5mm, D 10mm

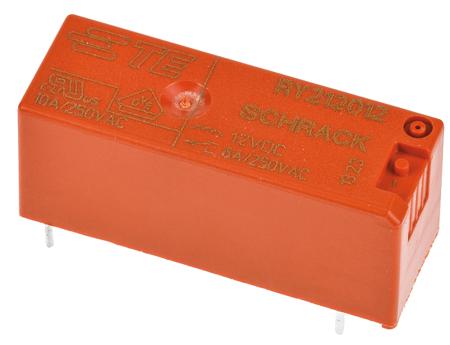

PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
RY212012
Enrgtech Part No:
ET13973503
Warranty:
Manufacturer
£ 4.03
Checking for live stock
Coil Voltage:
12V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
8A
Number of Poles:
1
Latching:
No
Terminal Type:
Through Hole
Length:
28.5mm
Coil Resistance:
627Ω
Maximum Operating Temperature:
+70°C
Height:
12.3mm
Series:
RY II
