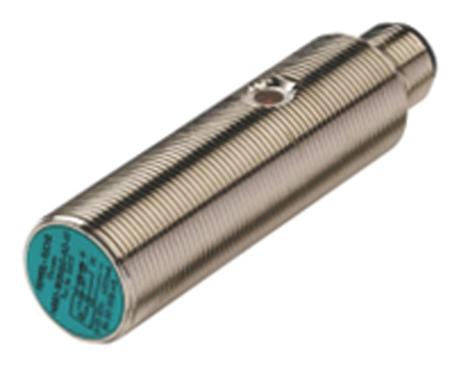

nbb5-18gm60-a0-v1 Pepperl + Fuchs NPN Inductive Sensor 5 mm Detection Range, Barrel 70mm length, 10 → 30 V, IP67

Extended Sensing Range These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications. LED indication Embeddable or flush installation IP67 Supply voltage 10 to 30Vdc Short circuit and reverse polarity protection Pre-wired types have 2m PVC cable Plug-in types have M12 type V1 connector Sensing Distances (mm) Body Thread Mild Steel Copper Aluminium Stainless Steel M5 0.8 0.32 0.36 0.68 M8 2 0.7 0.9 1.5 M12 4 1.4 1.8 2.8 M18 8 3.2 3.6 5.6 M30 10 3 3 8 Pepperl + Fuchs

For more information please check the datasheets.

Pepperl + Fuchs NPN Inductive Sensor 5 mm Detection Range, Barrel 70mm length, 10 → 30 V, IP67

Name: Pepperl + Fuchs NPN Inductive Sensor 5 mm Detection Range, Barrel 70mm length, 10 → 30 V, IP67
Brand: Pepperl + Fuchs
SKU: ET13899304
Availability: InStock

Manufacturer:

Pepperl + Fuchs

Manufacturer Part No:

NBB5-18GM60-A0-V1

Enrgtech Part No:

ET13899304

Warranty:

Manufacturer

£ 103.82

Checking for live stock

Housing Material:

Brass Nickel Plated

Short Circuit Overload Protection:

Yes

Shielding:

Unshielded

Mounting Type:

Flush

Maximum DC Voltage:

30V

Sensor Technology:

Inductive

Switching Current:

200 mA

Output Type:

NPN

Maximum Switching Frequency:

800Hz

Thread Size:

M18 x 1

Length:

70mm

Reverse Polarity Protection:

Yes

Datasheet(Technical Reference)
