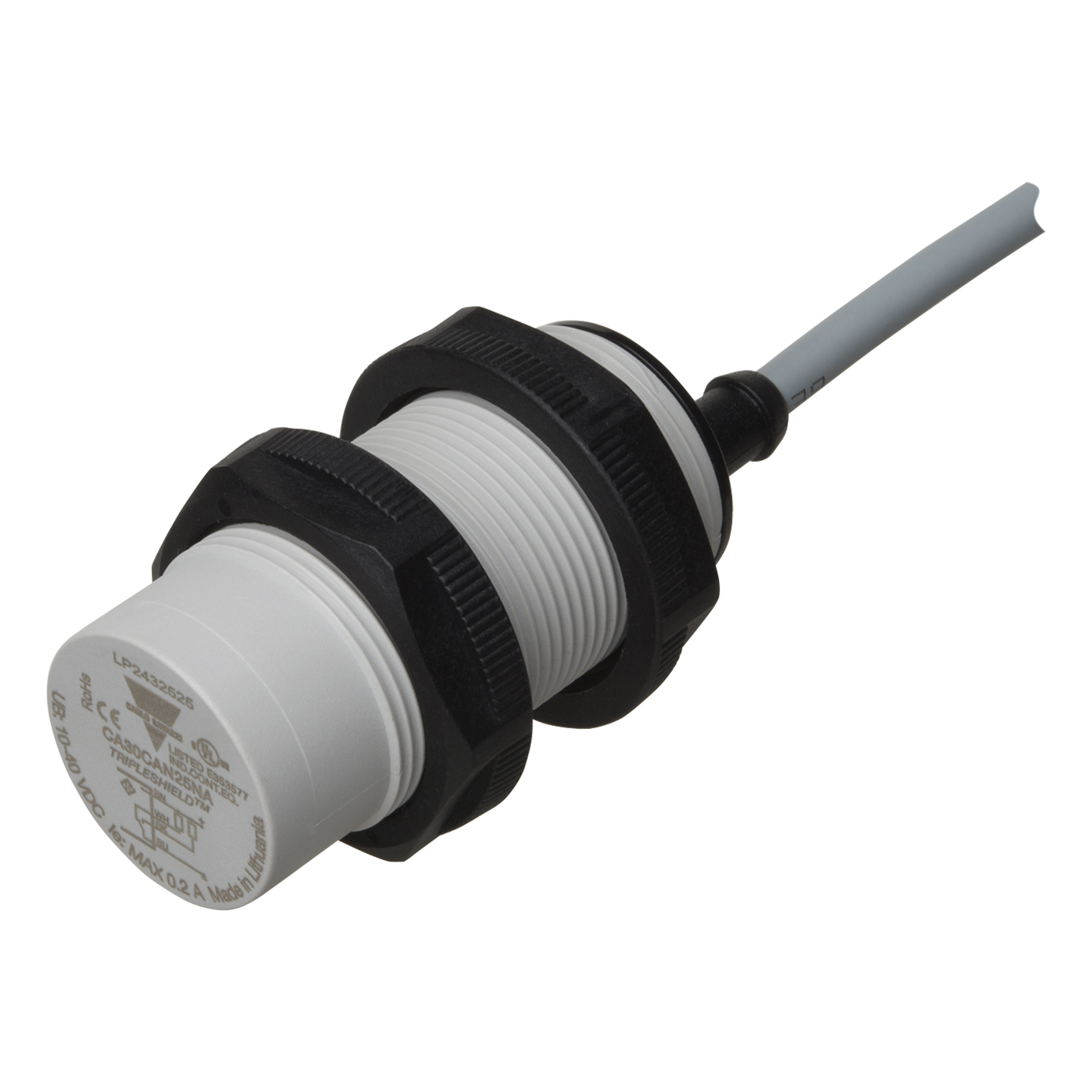

Capacitive Threaded Barrel Proximity Sensor, M30, 25 mm Detection, PNP NO, 10 → 40 V dc

Thread Size:

M30

Sensor Technology:

Capacitive

Body Style:

Threaded Barrel

Detection Range:

25 mm

Output Function:

NO

Digital Switching Output Type:

PNP

Cable Length:

2m

Connection Type:

Pre-Cabled

Supply Voltage:

10 → 40 V dc

IP Rating:

IP67, IP69K

Length:

81mm

Mounting Type:

Non-Flush

Maximum DC Voltage:

40V

Minimum Operating Temperature:

-30°C

Maximum Switching Frequency:

50Hz

Shielding:

Unshielded

Switching Current:

200 mA

Maximum Operating Temperature:

+85°C

Switching Frequency:

50 Hz

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2010768&DisplayLogo=False
