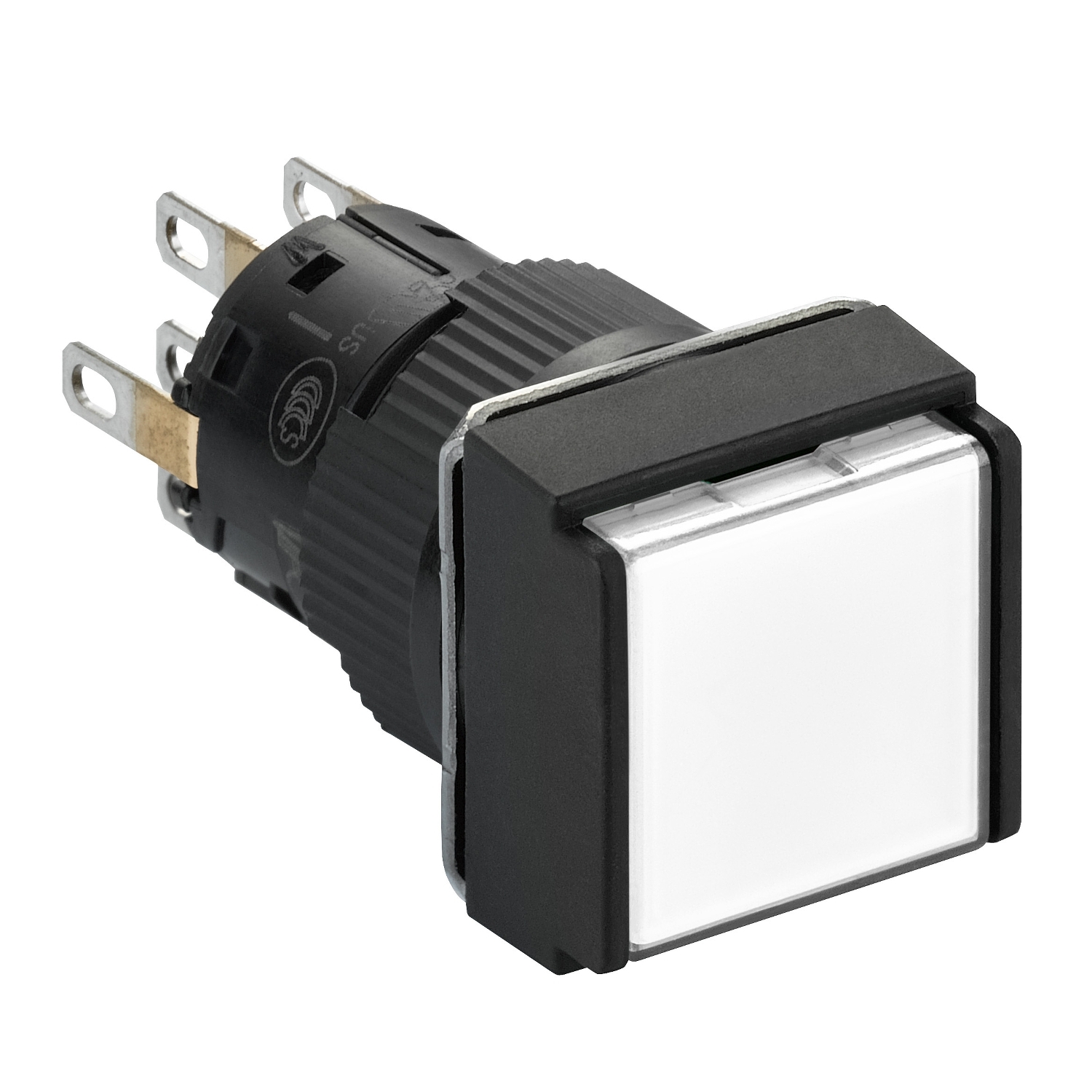

Illuminated Pushbuttons, Flush Square Head, Spring Return, LED Square flush mount head with contact block
2NO + 2NC contacts
24Vdc integral LED
IP65 protection

Schneider Electric Harmony XB6 Series Illuminated Push Button, Snap Action, Panel Mount, 16mm Cutout, DPDT, White LED,

Manufacturer:
Manufacturer Part No:
XB6ECW1B2P
Enrgtech Part No:
ET13862878
Warranty:
Manufacturer
Checking for live stock
Switch Operation:
Snap Action
Illuminated:
Yes
Panel Cut Out Diameter:
16mm
Series:
Harmony XB6
Mounting Type:
Panel Mount
Push Button Colour:
White
Contact Configuration:
DPDT
Voltage Rating:
24V dc
Push Button Style:
Square
LED Colour:
White
IP Rating:
IP65
Push Button Material:
Plastic
Contact Current Rating:
1A
Contact Material:
Gold-Flashed Silver
Better World Product:
Yes
Better World Verification:
Green Premium
Manufacturer Part No.:
XB6ECW1B2P
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
-10°C
Maximum AC Voltage:
250V
Maximum DC Voltage:
110V
Terminal Type:
Quick Connect, Solder Tag
Operating Temperature Range:
-10 → +55°C
pdf icon
Harmony XB6 E Range Switch Catalogue-f4cc21fa(datasheets)
pdf icon
Product Environmental Profile-00e2d087(datasheets)
pdf icon
Line Drawing - XB6ECW1B2P-b17bf994(datasheets)
pdf icon
Datasheet-XB6ECW1B2P-edc4b632(datasheets)
