TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

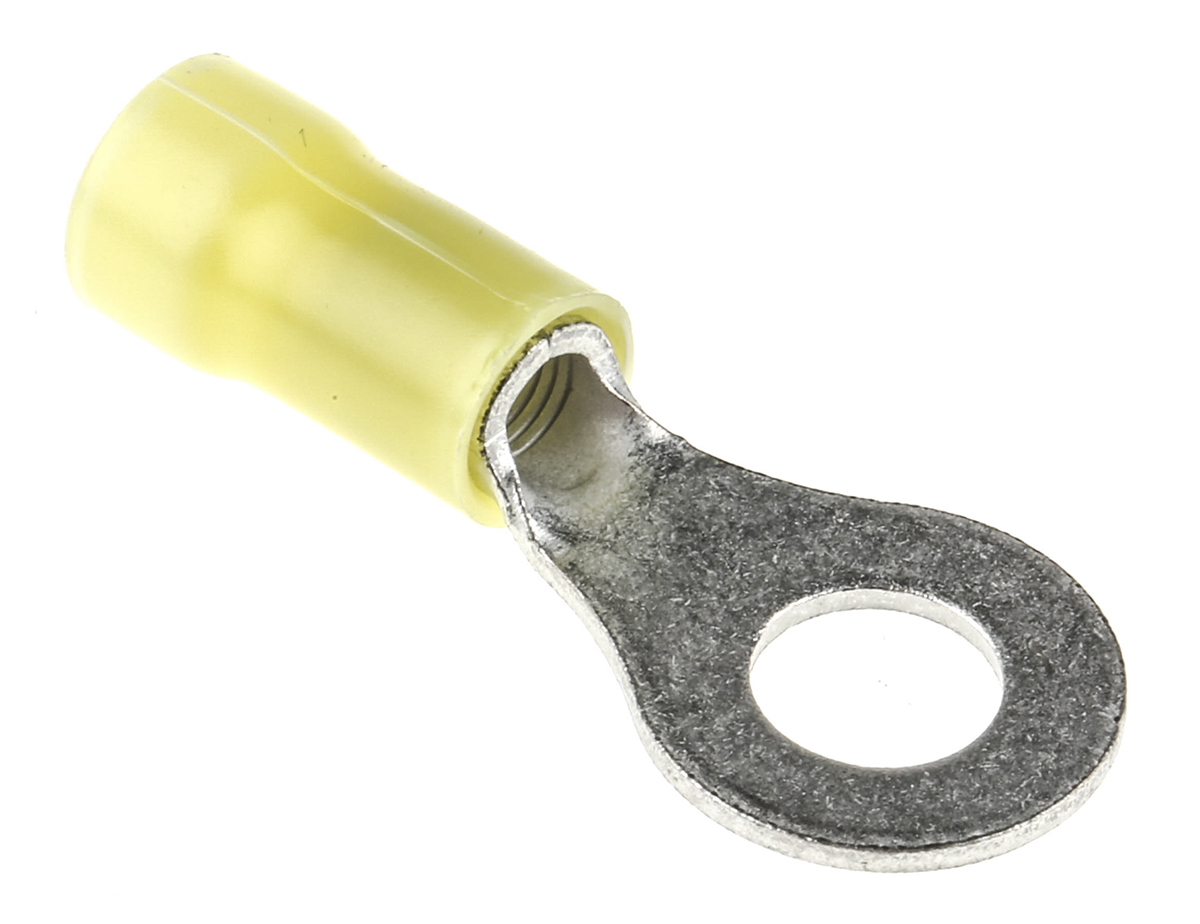

TE Connectivity , PLASTI-GRIP Insulated Crimp Ring Terminal, M6 Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow

Manufacturer:
Manufacturer Part No:
34855
Enrgtech Part No:
ET13821281
Warranty:
Manufacturer
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Vinyl
Inner Ring Diameter:
6.73mm
Outer Ring Diameter:
13.49mm
Minimum Wire Size mm²:
2.6mm²
Maximum Wire Size mm²:
6.6mm²
Minimum Wire Size AWG:
12AWG
Maximum Wire Size AWG:
10AWG
Stud Size:
M6
Colour:
Yellow
Contact Plating:
Tin
Contact Material:
Copper
Overall Length:
33.71mm
pdf icon
Terminal, Ring Tongue, Plasti-Grip 12-10 AWG - Drawing-302491ca(datasheets)
