TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

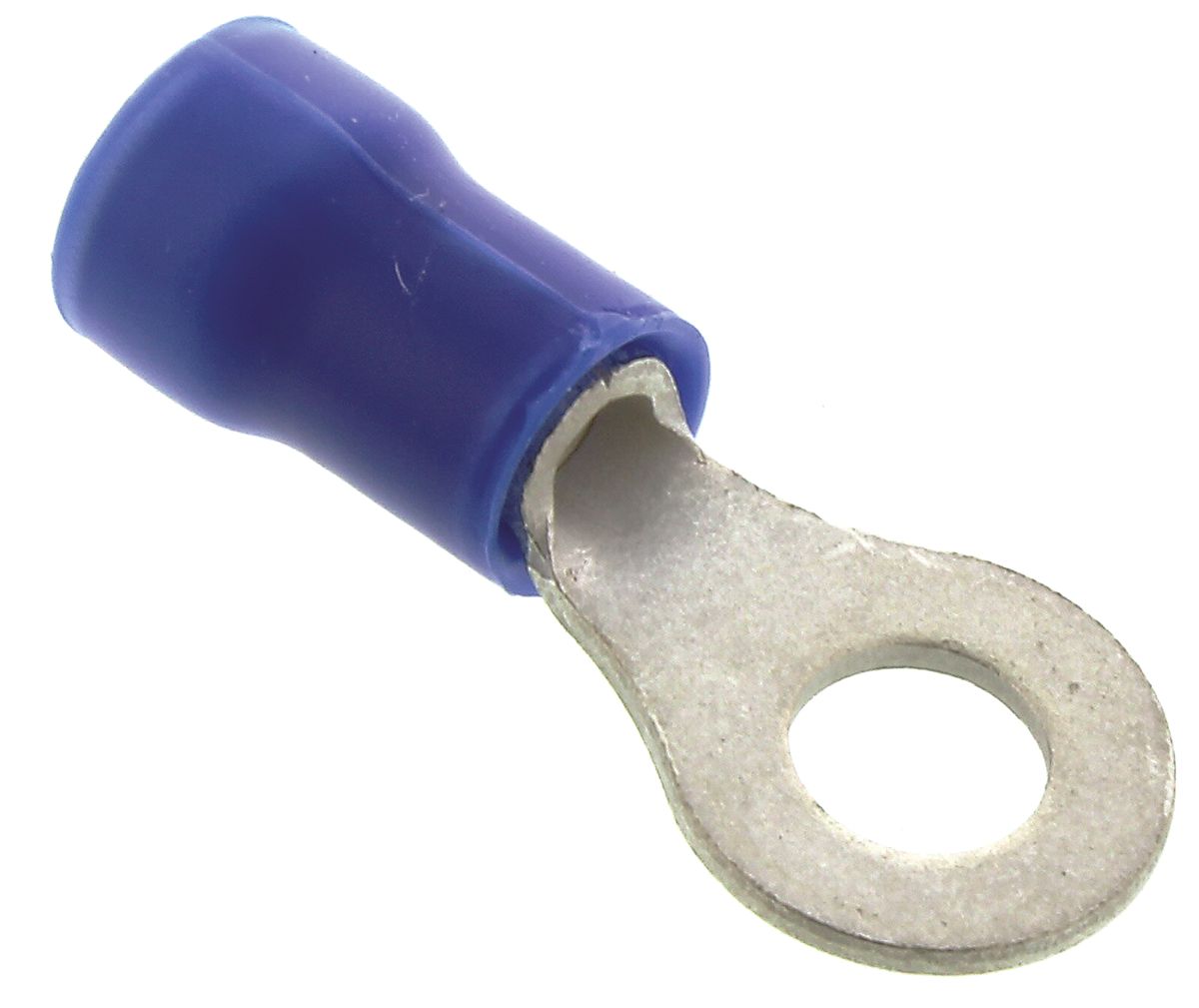

TE Connectivity , PLASTI-GRIP Insulated Crimp Ring Terminal, M4 Stud Size, 1mm² to 2.6mm² Wire Size, Blue

Manufacturer:
Manufacturer Part No:
34160
Enrgtech Part No:
ET13916952
Warranty:
Manufacturer
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Vinyl
Inner Ring Diameter:
4.34mm
Outer Ring Diameter:
8.71mm
Maximum Wire Size mm²:
2.6mm²
Minimum Wire Size mm²:
1mm²
Minimum Wire Size AWG:
16AWG
Maximum Wire Size AWG:
14AWG
Stud Size:
M4
Colour:
Blue
Contact Plating:
Tin
Contact Material:
Copper
Overall Length:
22.12mm
pdf icon
Datasheet-e3578def(datasheets)
Discover ring terminals designed for secure electrical connections. Enrgtech offers crimp connectors and wire lugs for reliable wiring and circuit terminations.
