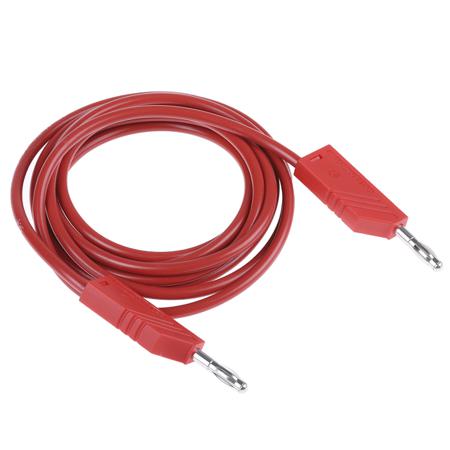

Moulded measuring leads 1 mm2
Moulded test leads fitted with 4 mm male plugs on each end with cage springs and same-diameter sockets for tower connection.
These leads are made from very flexible, multi-strand twisted wire, with double insulation.
The assembly is designed to be crush resistant.
These leads are made from very flexible, multi-strand twisted wire, with double insulation.
The assembly is designed to be crush resistant.
, 16A, 60V dc, Red, 2m Lead Length
Manufacturer:
Hirschmann Test & Measurement
Manufacturer Part No:
934065101
Enrgtech Part No:
ET16816728
Warranty:
Manufacturer
£ 7.76
Checking for live stock
Lead Length:
2m
Current Rating:
16A
Test Lead Type:
4 mm Connector Test Leads
Colour:
Red
Voltage Rating:
60V dc
Connector A Gender:
Male
Connector B Gender:
Male
Connector A Orientation:
Straight
Connector B Orientation:
Straight
Contact Material:
Beryllium Copper, Brass
Insulation Material:
PVC
Maximum Operating Temperature:
+70°C
