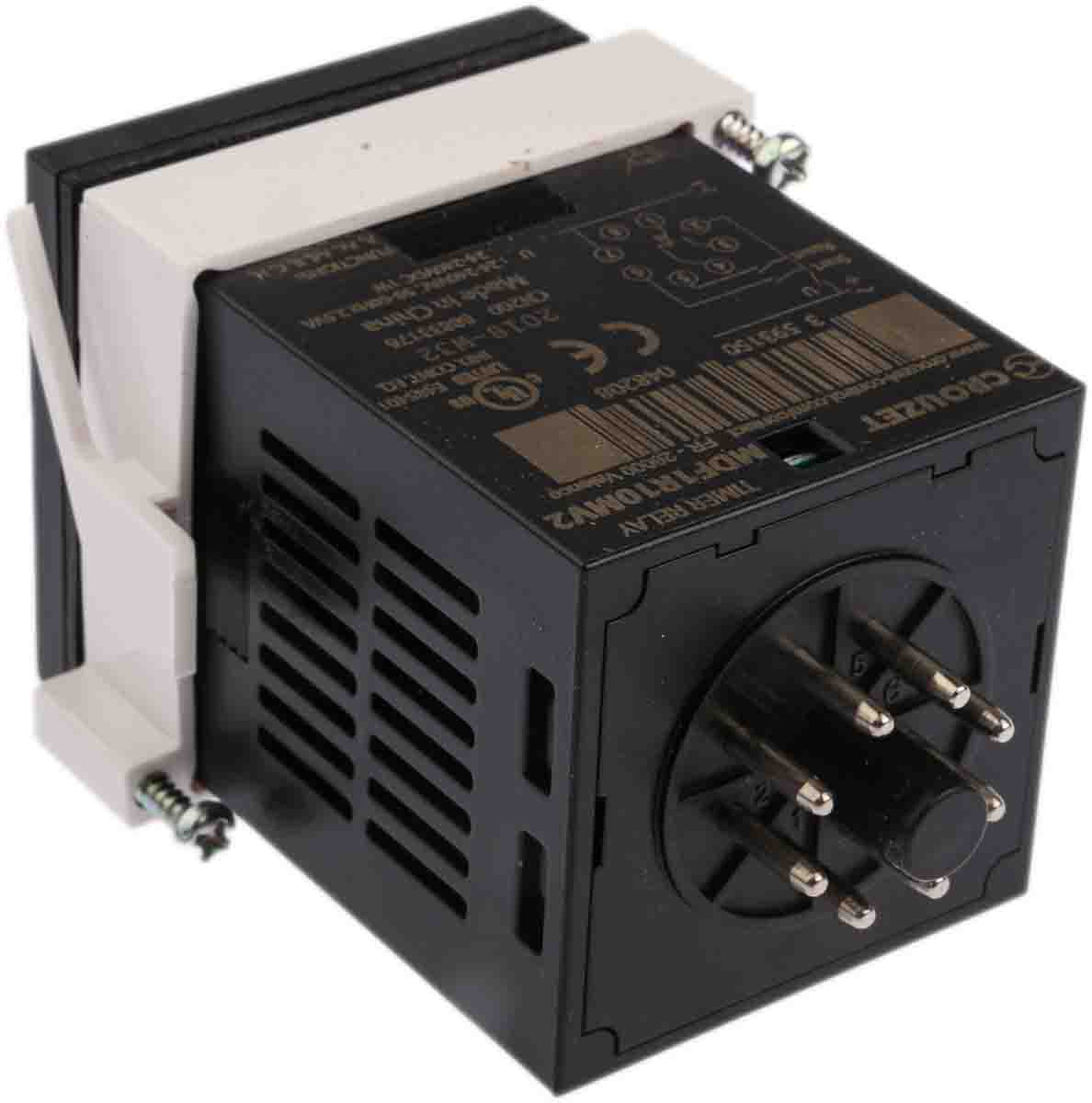

Crouzet Multi-Function Timer Relay The Crouzet multi-function timer relay is a compact device with SPDT output. It performs the function of providing delay on start, interval, off delay (delay on break), on delay (delay on make), on/off delay (delay on make/break), one-shot, recycler (off start), recycler (on start), symmetrical flashing (off start), symmetrical flashing (on start) form in the range of 0.05 seconds and 9999 hours. Features and Benefits Large LED screen of 13.2 mm
1 relay output changeover (24V-240VAC/DC and 5A)
Basic and advance configuration modes
SPDT switching configuration

Memory option in an event of a break in supply
Lock function
Up and down timing
DIN sized 48mm x 48mm housing
Compact body (63mm long)
Water and dust-proof
8-pin connections Applications Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control Certifications IP20 rated
IP66 rated
UL94 approved
IEC 60664-1
IEC 1812-1
IEC 60068-2-30
IEC 60068-2-6
IEC60068-2-27
IEC 60068-2-32

Crouzet Syr-Line Series Panel Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.001 → 9.999 s, 0.01

Manufacturer:
Manufacturer Part No:
MDF1R10MV2
Enrgtech Part No:
ET15934045
Warranty:
Manufacturer
Checking for live stock
Supply Voltage:
24 → 240V ac/dc
Mounting Type:
Panel Mount
Mode of Operation:
Delay on Start, Interval, OFF Delay (Delay on Break), ON Delay (Delay ON Make), ON/OFF Delay (Delay on Make/Break), One Shot, Recycler (Off Start), Recycler (On Start), Symmetrical Flashing (Off Start), Symmetrical Flashing (On Start)
Time Range:
0.001 → 9.999 s, 0.01 → 99.99 s, 0.1 → 999.9 s, 0.1 → 999.9 h, 0.1 → 999.9 min, 1 min → 99 h 59 min, 1 s → 99 min 59 s, 1 → 9999 s, 1 → 9999 min, 1 → 9999h
Number of Contacts:
1
Number of Timer Functions:
Multi Function
Contact Configuration:
SPDT
Time Increment:
Hours, Minutes, Seconds
Maximum Current:
10A
Maximum Voltage:
240V ac/dc
Terminal Type:
8-Pin Connector
Switch Configuration:
SPDT
Width:
48mm
Minimum Voltage:
24V ac/dc
Power Supply:
External
Minimum Current:
0.3A
Length:
48mm
Series:
Syr-Line
Depth:
68mm
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-10°C
pdf icon
Datasheet-7fa759d5(datasheets)
