Schneider Electric Thalassa TBS Enclosures The Thalassa TBS series from Schneider Electric are self-extinguishing and halogen-free ABS enclosures. They provide three wall-mounting methods: directly by the holes on the base, by channels outside the sealed area or by fixing wrap-over clamps. Features and Benefits • Grey (RAL7035) ABS plastic • Self-extinguishing and halogen-free • IP66 and IK07 protection • Extra chemical resistance • Various plugs in body shell for attaching accessories • Cover locking by 4 plastic captive screws • Multiple wall-mounting methods • Only 1 tool required, a flat screwdriver • Operating temperature: -25 to +60°C • Resistance to incandescent wire (IEC 60695-2-11): 650° Double insulation, Class II (in accordance with IEC 536) Standards EN 50102, IEC 60695-2-11, IEC 536, IEC 60529, IEC 62208 Approvals TUV, SEMKO, DEMKO, UL, NEMA.

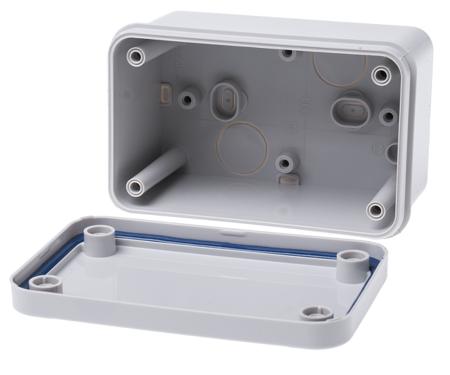

Schneider Electric NSYTBS1176 Thalassa TBS IP66 Wall Box, ABS, Grey, 116 x 74 x 62mm

Manufacturer:
Manufacturer Part No:
NSYTBS1176
Enrgtech Part No:
ET14051358
Warranty:
Manufacturer
£ 55.00
Checking for live stock
RAL Code:
RAL 7035
External Mounting Type:
Knockouts
Better World Verification:
Green Premium
Better World Product:
Yes
IP Rating:
IP66
Series:
Thalassa TBS
Colour:
Grey
Gland Plate:
No
Chassis Plate:
No
Transparent Door:
No
External Depth:
62mm
Door Lock Type:
Screw
Body Material:
ABS
Internal Mounting Type:
Mounting Bosses
External Height:
116 mm
Fixing Kit:
No
Special Features:
Removable Cover
External Width:
74 mm
IK Rating:
IK07
Ratings:
IP66
Material:
Plastic, ABS
Thickness:
0.217" (5.50mm)
title:
NSYTBS1176
Area (L x W):
13.1in² (85cm²)
Container Type:
Box
Material Flammability Rating:
-
Size / Dimension:
4.567" L x 2.913" W (116.00mm x 74.00mm)
standardLeadTime:
5 Weeks
Features:
-
Weight:
-
Color:
Light Gray
Series:
-
Height:
2.441" (62.00mm)
Packaging:
Bulk
Design:
Cover Included
