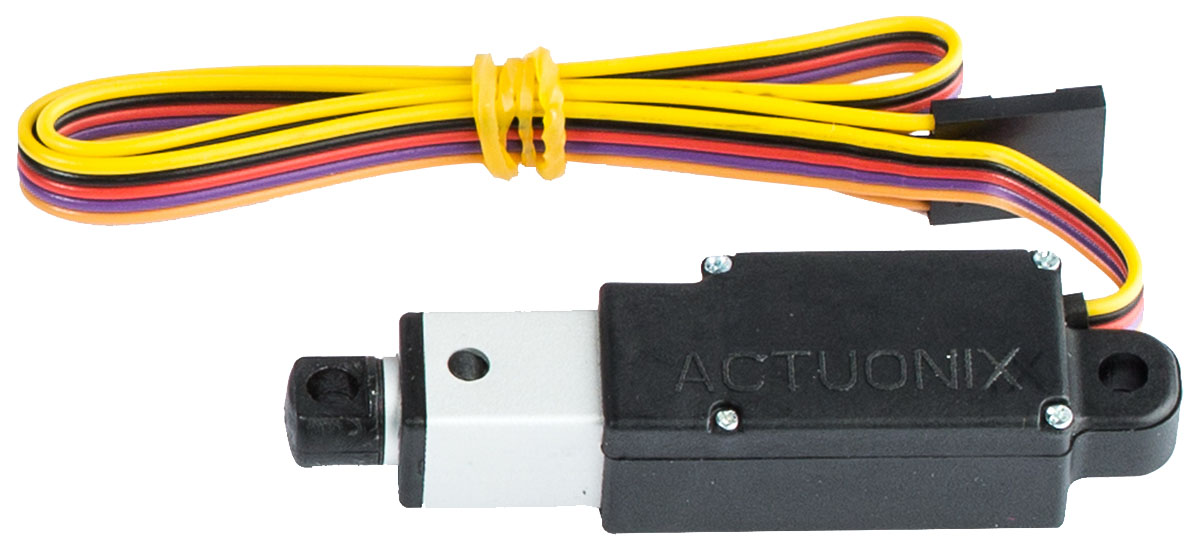

L12 Micro Linear Actuators The L12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing with awkward gears, motors, servos and linkages. The L series of miniature linear actuators are highly flexible, configurable and compact linear motion devices with an optional sophisticated on-board microcontroller. The L12 has an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. The best feature of this actuator however is the broad spectrum of configurations that are available. Option S – End of Stroke Limit Switches The L12-S actuators have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L12-P actuators do not have a built-in controller but do provide analogue position feedback. The L12-P actuator can be used as a linear servo by connecting to an external controller. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L12-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

L12 Micro Linear Actuators The L12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing with awkward gears, motors, servos and linkages. The L series of miniature linear actuators are highly flexible, configurable and compact linear motion devices with an optional sophisticated on-board microcontroller. The L12 has an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. The best feature of this actuator however is the broad spectrum of configurations that are available. Option S – End of Stroke Limit Switches The L12-S actuators have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L12-P actuators do not have a built-in controller but do provide analogue position feedback. The L12-P actuator can be used as a linear servo by connecting to an external controller. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L12-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

L16 Micro Linear Actuators The L16 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The L16 series of miniature linear actuators are complete, self-contained linear motion devices. They have position feedback for sophisticated position control capabilities, end of stroke limit switches for two position automation or RC servo. Depending on the speed and force configurations required, there are several gear ratios available. Option S – End of Stroke Limit Switches The L16-S actuators are ideal for manually controlled applications and simple two position automated mechanisms. They have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L16-P actuators do not have a built-in controller but do provide analogue position feedback. The L16-P actuator can be used as a linear servo by connecting to an external controller. Ideally suited to be used in automatically controlled positioning systems, but can also be driven manually. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-3.3v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L16-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

L16 Micro Linear Actuators The L16 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The L16 series of miniature linear actuators are complete, self-contained linear motion devices. They have position feedback for sophisticated position control capabilities, end of stroke limit switches for two position automation or RC servo. Depending on the speed and force configurations required, there are several gear ratios available. Option S – End of Stroke Limit Switches The L16-S actuators are ideal for manually controlled applications and simple two position automated mechanisms. They have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L16-P actuators do not have a built-in controller but do provide analogue position feedback. The L16-P actuator can be used as a linear servo by connecting to an external controller. Ideally suited to be used in automatically controlled positioning systems, but can also be driven manually. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-3.3v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L16-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

L12 Micro Linear Actuators The L12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing with awkward gears, motors, servos and linkages. The L series of miniature linear actuators are highly flexible, configurable and compact linear motion devices with an optional sophisticated on-board microcontroller. The L12 has an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. The best feature of this actuator however is the broad spectrum of configurations that are available. Option S – End of Stroke Limit Switches The L12-S actuators have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L12-P actuators do not have a built-in controller but do provide analogue position feedback. The L12-P actuator can be used as a linear servo by connecting to an external controller. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L12-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

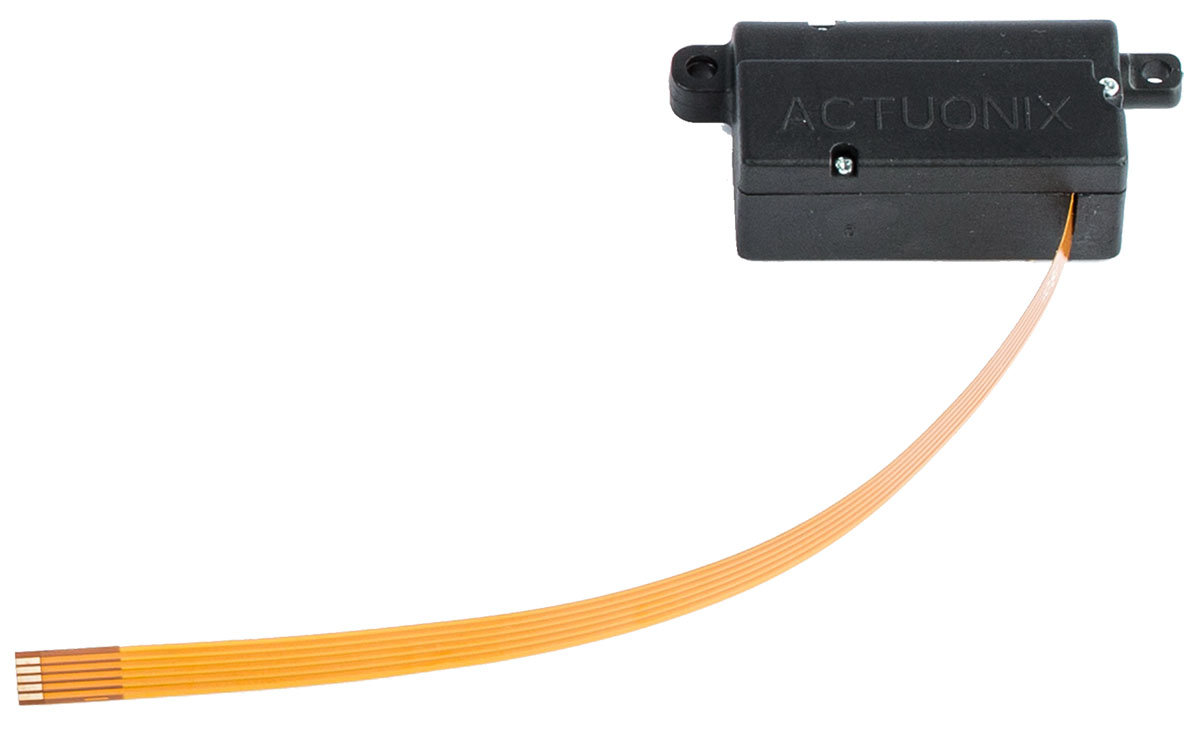

PQ12 Series Linear Actuators The PQ12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The PQ12 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control. Simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations. Lower gear reduction ratios are faster but push less force, and conversely. Option S – End of Stroke Limit Switches The S actuators have limit switches that turn off power when the actuator reaches within 1 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The P actuators do not have a built-in controller but do provide analogue position feedback. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB. Features and Benefits &#149; Compact miniature size<BR/>&#149; Precise position feedback<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

PQ12 Series Linear Actuators The PQ12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The PQ12 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control. Simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations. Lower gear reduction ratios are faster but push less force, and conversely. Option S – End of Stroke Limit Switches The S actuators have limit switches that turn off power when the actuator reaches within 1 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The P actuators do not have a built-in controller but do provide analogue position feedback. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB. Features and Benefits &#149; Compact miniature size<BR/>&#149; Precise position feedback<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

PQ12 Series Linear Actuators The PQ12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The PQ12 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control. Simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations. Lower gear reduction ratios are faster but push less force, and conversely. Option S – End of Stroke Limit Switches The S actuators have limit switches that turn off power when the actuator reaches within 1 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The P actuators do not have a built-in controller but do provide analogue position feedback. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB. Features and Benefits &#149; Compact miniature size<BR/>&#149; Precise position feedback<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

PQ12 Series Linear Actuators The PQ12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The PQ12 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control. Simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations. Lower gear reduction ratios are faster but push less force, and conversely. Option S – End of Stroke Limit Switches The S actuators have limit switches that turn off power when the actuator reaches within 1 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The P actuators do not have a built-in controller but do provide analogue position feedback. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB. Features and Benefits &#149; Compact miniature size<BR/>&#149; Precise position feedback<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

L16 Micro Linear Actuators The L16 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The L16 series of miniature linear actuators are complete, self-contained linear motion devices. They have position feedback for sophisticated position control capabilities, end of stroke limit switches for two position automation or RC servo. Depending on the speed and force configurations required, there are several gear ratios available. Option S – End of Stroke Limit Switches The L16-S actuators are ideal for manually controlled applications and simple two position automated mechanisms. They have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L16-P actuators do not have a built-in controller but do provide analogue position feedback. The L16-P actuator can be used as a linear servo by connecting to an external controller. Ideally suited to be used in automatically controlled positioning systems, but can also be driven manually. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-3.3v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L16-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

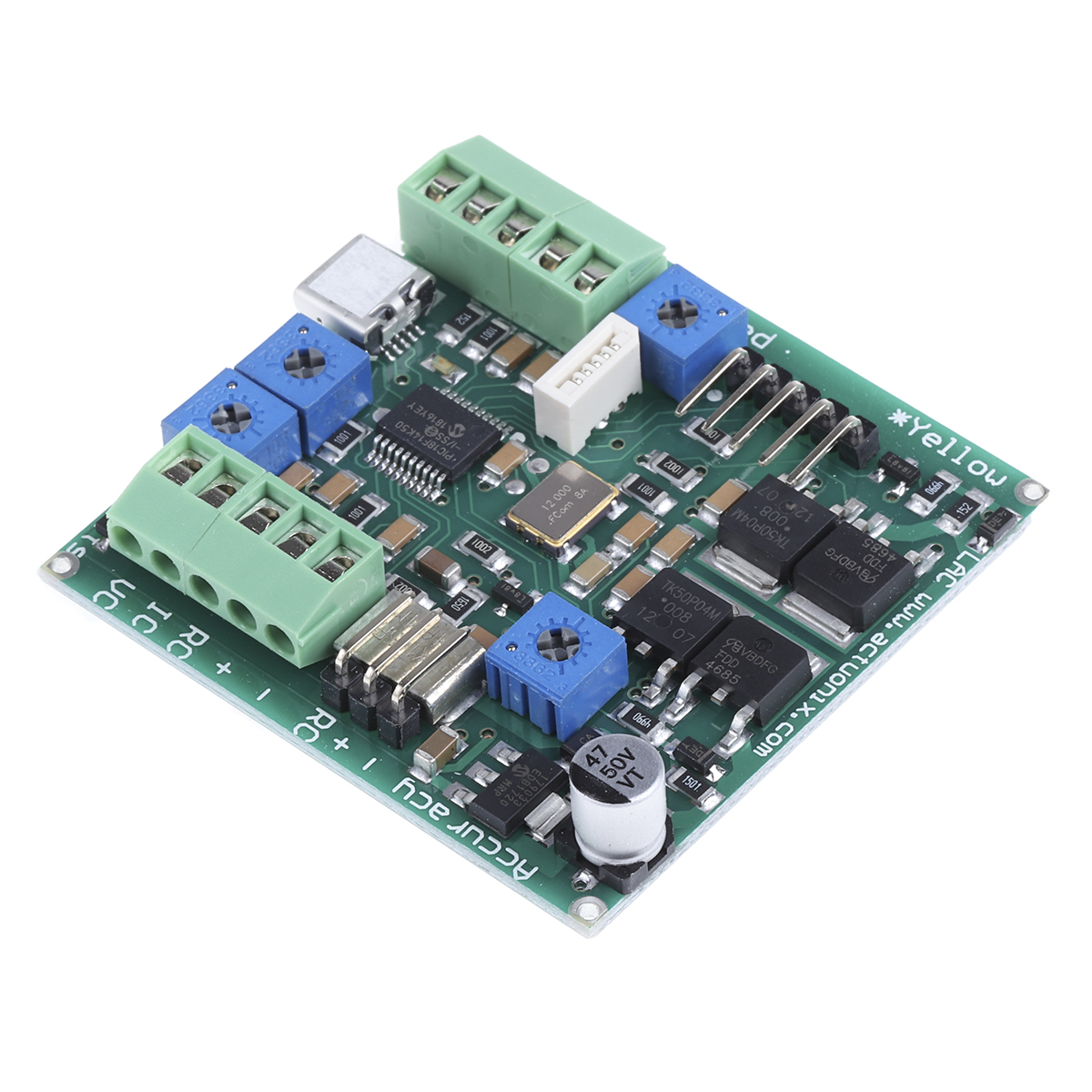

Linear Actuator Control Board The LAC board from Actuonix is a standalone closed loop control board specially designed for the P series actuators. By using this LAC board with Actuonix actuators you can greatly simplify motor control designs, saving cost and time.<BR/>Actuonix motor control IC uses a software-based algorithm which optimises position and speed control. The linear actuator board is then compatible with a wide range of actuators, using only the default settings.<BR/>Full customisation is possible due to Actuonix Advanced Configuration Program.<BR/>The LAC can be operated as an interface board or a standalone controller with the addition of an external potentiometer and power supply. <B>Control Modes</B> 0 V to 3.3 V Interface Mode This mode allows an actuator to be controlled with just a battery, and a potentiometer to signal the desired position to the actuator. RC Servo Interface Mode A standard hobby-type remote-control digital servo interface, compatible with servos and receivers from other manufacturers. 4 mA to 20 mA Interface Mode This mode is compatible with PLC devices typically used in industrial control applications. PWM Mode This mode allows control of the actuator using a single digital output pin from an external micro controller. USB Mode This mode allows control of the actuator via the computer. Features and Benefits &#149; Several control modes available<BR/>&#149; Compatible with P series actuators<BR/>&#149; Can be operated as an interface board or standalone controller Application Information The LAC works with the PQ12-P, L12-P, L16-P and P16-P series actuators. It can also be able to drive other larger actuators that have position feedback.

L16 Micro Linear Actuators The L16 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing your own push/pull mechanisms. The L16 series of miniature linear actuators are complete, self-contained linear motion devices. They have position feedback for sophisticated position control capabilities, end of stroke limit switches for two position automation or RC servo. Depending on the speed and force configurations required, there are several gear ratios available. Option S – End of Stroke Limit Switches The L16-S actuators are ideal for manually controlled applications and simple two position automated mechanisms. They have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board. Option P – Potentiometer Position Feedback The L16-P actuators do not have a built-in controller but do provide analogue position feedback. The L16-P actuator can be used as a linear servo by connecting to an external controller. Ideally suited to be used in automatically controlled positioning systems, but can also be driven manually. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-3.3v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.<BR/>Using the L16-P as a linear servo, it is able to be used in RC toys and robotics. Features and Benefits &#149; Compact miniature size<BR/>&#149; Simple control<BR/>&#149; Low voltage<BR/>&#149; Equal push/pull force<BR/>&#149; Easy mounting Application Information Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.
