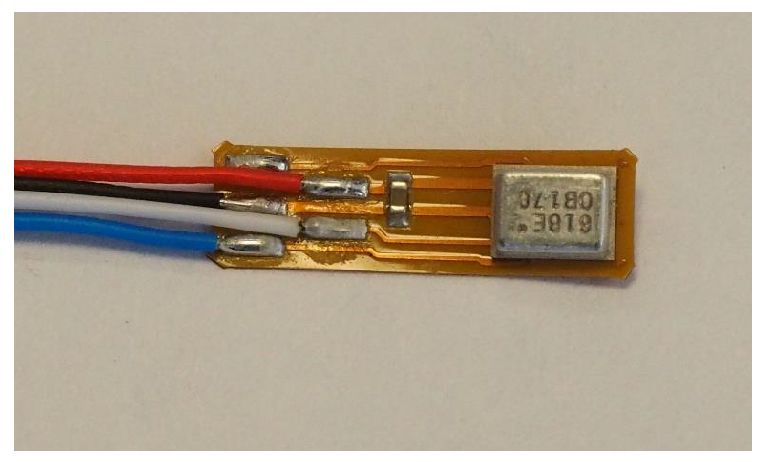

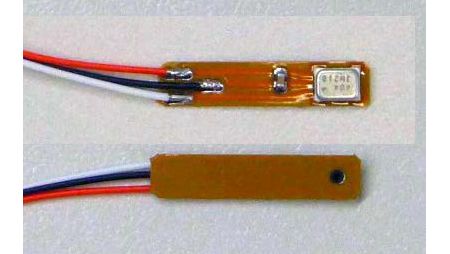

The InvenSense simple evaluation board that allows quick evaluation of the performance of single-ended analog MEMS microphones. The evaluation board consists of a bottom port microphone soldered to a flexible PCB with color-coded wires attached. It has output impedance of 190 Ohm. Low profile of the flexible PCB enables direct placement of the microphone into a prototypeSmall in size

The InvenSense simple evaluation board that allow quick evaluation of the performance of differential output analog MEMS microphones. The evaluation board consists of a top or bottom port microphone soldered to a flexible PCB with color-coded wires attached. It has sensitivity of -32 dBV. Low profile of the flexible PCB enables direct placement of the microphone into a prototypeSmall in size

The InvenSense ICS series is an analog MEMS microphone with very high dynamic range and a low-power always on mode. It includes a MEMS microphone element, an impedance converter, and an output amplifier. Differential non‐inverting analog outputEnhanced RF immunityExtended frequency response from 50 Hz to 20 kHzCompatible with Sn/Pb and Pb-free solder processesRoHS/WEEE compliant

The InvenSense comprehensive development platform for CH-201, a miniature ultrasonic time-of-flight range sensor with a range of 5 m. The development kit is equipped with an on-board CH201 sensor and up to four external CH201 or CH101 sensor modules can be connected to the boar d via flat-flex cables for easy prototyping. Ultralow power range sensingAccurate range measurement regardless of target sizeDetects objects of any colour, including optically transparent onesWorks under any lighting condition

The InvenSense evaluation board for IAM-20680, a MEMS 6-axis motion sensor that combines a 3-axis gyroscope, and a 3-axis accelerometer. The UEVB communicates with a system processor through the custom header using either the I²C or the SPI serial interface. Universal evaluation board is lead freeRoHS compliant

The InvenSense simple evaluation board that allow quick evaluation of the performance of differential output analog MEMS microphones. The evaluation board consists of a top or bottom port microphone soldered to a flexible PCB with color-coded wires attached. It has sensitivity of -38 dBV. Low profile of the flexible PCB enables direct placement of the microphone into a prototypeSmall in size

The InvenSense comprehensive development platform for CH-101, a miniature ultrasonic time-of-flight range sensor with a range of 4 cm to 120 cm. The development kit is equipped with an on-board CH-101 sensor and up to four external MOD_CH101 sensor modules can be connected to the board via flat-flex cables for easy prototyping. Ultralow power range sensingAccurate range measurement regardless of target sizeDetects objects of any colour, including optically transparent onesWorks under any lighting condition

The InvenSense smart motion is development kit for ICM-42688-P, a high performance 6-axis motion sensor that combines a 3-axis gyroscope, and a 3-axis accelerometer. The development kit comes with necessary software including InvenSense motion link, a GUI based development tool and embedded motion drivers for ICM-42688-P. Microchip G55 MCU with 512KB FlashOn-board embedded debugger for programming and debuggingUSB connectors for host interface to support software debug and sensor data loggingBoard power supply through USBSensor fusionAccelerometer & gyroscope calibrat

The InvenSense smart motion is development kit for ICM - 20602, a high performance 6-axis motion sensor that combines a 3-axis gyroscope, and a 3-axis accelerometer. The development kit comes with necessary software including InvenSense motion link, a GUI based development tool and embedded motion drivers for ICM-20602. On-board embedded debugger for programming and debuggingUSB connectors for host interface to support software debug and sensor data loggingBoard power supply through USBSensor fusionAccelerometer & gyroscope calibration

The InvenSense TDM microphone array demo board which uses 16 ICS-52000 microphones. It allows evaluation of the ICS-52000 in a large 4x4 array, with 15 mm spacing between adjacent microphones in the array. Board can be set up for arrays of 4, 8, 12, or 16 microphones

The InvenSense ICS series is an analog MEMS microphone with very high dynamic range and capable of operation up to 105°C. It includes a MEMS microphone element, an impedance converter, and an output amplifier. Differential non‐inverting analog outputEnhanced RF immunityExtended frequency response from 35 Hz to 20 kHzCompatible with Sn/Pb and Pb-free solder processesRoHS/WEEE compliant

The InvenSense ICM series is the world’s lowest power 9-axis motion tracking device that is ideally suited for smartphones, tablets, wearable sensors, and IoT applications. It combines 3-axis gyroscope, 3-axis accelerometer, 3-axis compass, and a digital motion processor. The gyroscope has a programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps. The accelerometer has a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g. It also features a 1 KB FIFO that can lower the traffic on the serial bus interface. Android supportOn-chip 16-bit ADCs and programmable filtersDigital-output temperature sensorMEMS structure hermetically sealed and bonded at wafer level
