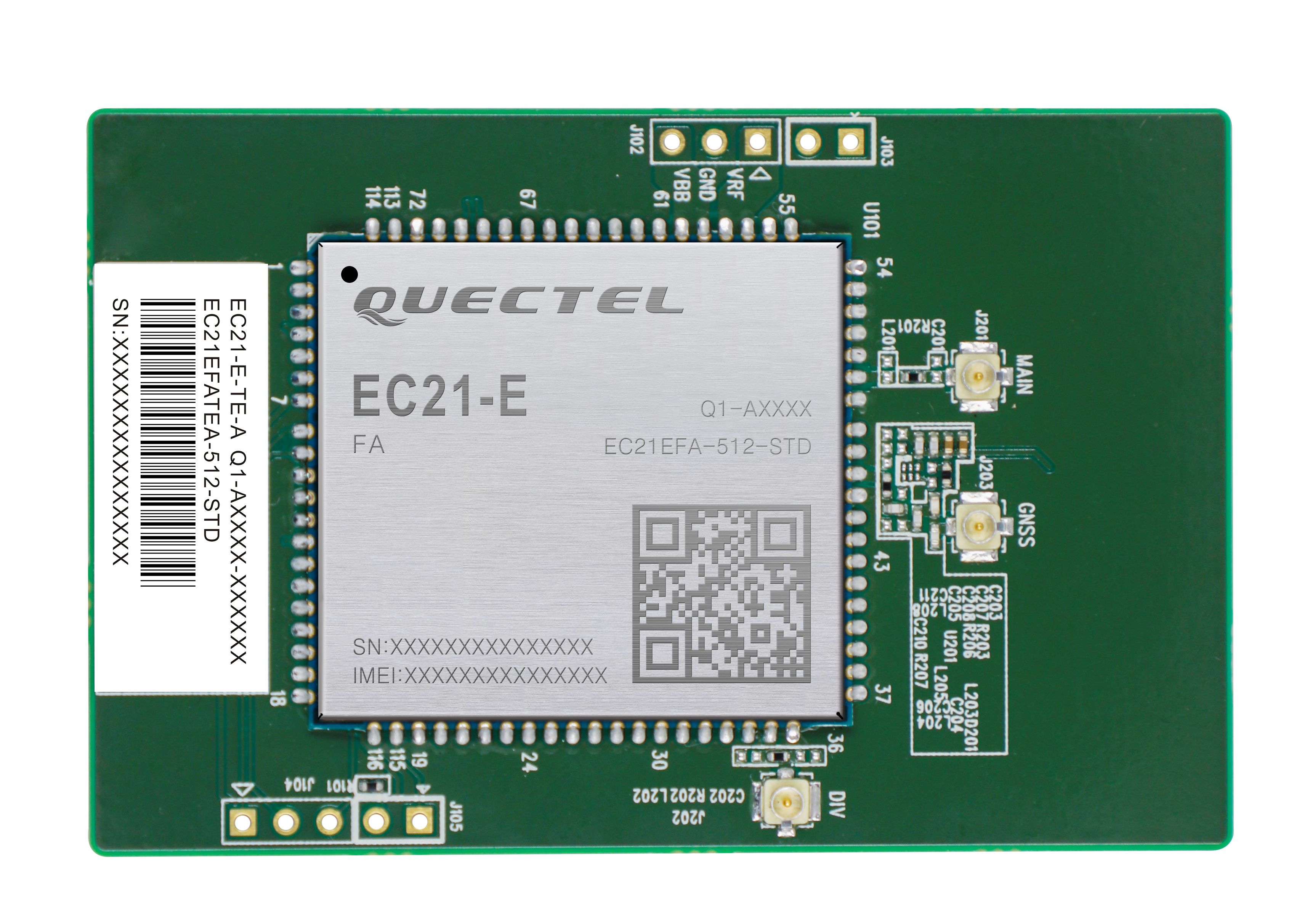

The Quectel LTE module is compatible with UMTS/HSPA+ UC20 module. It has maximum 150Mbps (DL) and 50Mbps (UL) speed. It has operating temperature range from -35°C to +75°C. Its baud rate reach up to 921600bps and has RTS/CTS flow control. It support USB 2.0 HS (slave only) interface, PCM digital audio interface. I2C interface is supported and has SIM detection. It has 29 x 32 x 2.4mm dimensions

The Quectel LTE module is compatible with UMTS/HSPA+ UC20 module. It has maximum 150Mbps (DL) and 50Mbps (UL) speed. It has operating temperature range from -35°C to +75°C. Its baud rate reach up to 921600bps and has RTS/CTS flow control. It support USB 2.0 HS (slave only) interface, PCM digital audio interface.I2C interface is supported and has SIM detection. It has 29 x 32 x 2.4mm dimensions

The Quectel LTE module is compatible with UMTS/HSPA+ UC20 module. It has operating temperature range from -35°C to +75°C. Its baud rate reach up to 921600bps and has RTS/CTS flow control. It support USB 2.0 HS (slave only) interface, PCM digital audio interface. I2C interface is supported and has SIM detection. It has 29 x 32 x 2.4mm dimensions

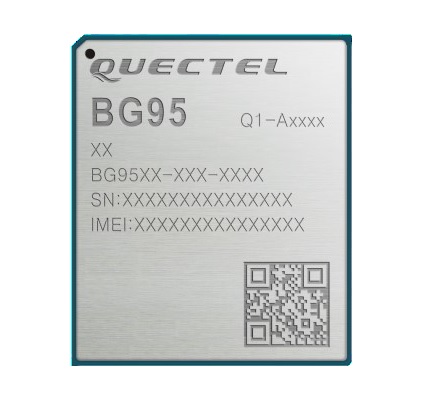

The Quectel LTE Cat M1/Cat NB1/EGPRS module offering maximum data rates of 375 kbps downlink and uplink. It features global frequency bands, ultra-low power consumption, and is compatible with Quectel LTE standard module EG91/EG95, LPWA module BC95-G/BG95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95. Its advanced LGA package allows fully automated manufacturing for high-volume applications. Supports USB 2.0 high speed interface<BR/>Compact in size

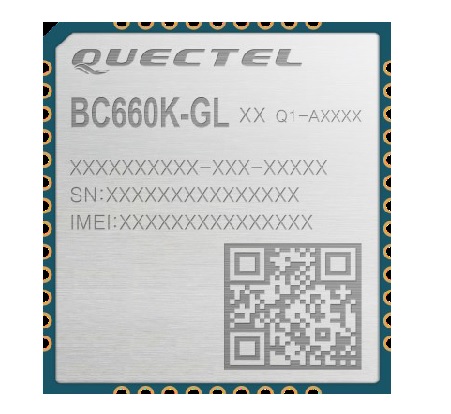

The Quectel LTE Cat NB2 module supports multiple frequency bands of B1, B2, B3, B4,B5, B8, B12, B13, B17, B18, B19, B20, B25, B28, B66, B70, B85 with extremely low power consumption. Designed to be compatible with Quectel GSM/GPRS M66 module and NB-IoT BC66/BC66-NA, BC65 and BC68 modules, it provides a flexible and scalable platform for the migration from GSM/GPRS to NB-IoT networks. The module&#146;s small LCC package allows it to be easily embedded into space-constrained applications and to enjoy reliable connection with the applications. Built-in eSIM reserved<BR/>Embedded with abundant internet service protocols<BR/>Supports extended temperature range from -40 °C to +85 °C

The Quectel multi-mode LPWA modules supports LTE Cat M1/Cat NB2/EGPRS and integrated GNSS. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor. It boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Robust mounting and interfaces<BR/>Supports USB 2.0 interface

L70 GPS (Global Positioning System) Module The L70 is a GPS receiver module that brings the high performance of MTK positioning engine. With 66 search channels, 22 tracking channels, L70 can acquire and track satellites in the shortest time even at indoor low signal level. GPS data for location, velocity, and time<BR/>Power Supply 3.3V<BR/>UART Port<BR/>NMEA and PMTK Protocols Supported<BR/>Compact size 10.1 x 9.7 x 2.5 mm

<B>Quectel L86-M33 GNSS POT Module</B> The<B> Quectel L86-M33</B> is a GNSS POT (Patch on Top) module. This is a GNSS module and integrated patch antenna within a really compact package. It&#146;s the perfect module for integrating into the smallest devices to enable navigational functionality. <BR/>The L86-M33 features the MT3333 GNSS chipset from MediaTek which offers high performance and tracking sensitivity. This enables straight forward migration from GPS to GNSS. The L86-M33 also offers automatic antenna detection and short circuit protection.<BR/>The L86-M33 is ideal for portable devices, automotive, personal tracking and security. It can even be used to automatically predict orbits.<BR/> &#149; Compact package<BR/>&#149; Embedded patch antenna<BR/>&#149; High performance<BR/>&#149; High precision<BR/>&#149; High sensitivity: -165 dBm (tracking)<BR/>&#149; Low power consumption<BR/>&#149; 99 acquisition channels<BR/>&#149; 33 tracking channels<BR/>&#149; EASY™ AGPS Technology (Embedded Assist System)<BR/>&#149; AlwaysLocate™ Technology<BR/> <B>What navigation systems does it cover?</B><BR/>GPS, GLONASS and QZSS<BR/><BR/><B>Can I switch antennas?</B><BR/>Yes the L86-M33 offers and automatic antenna switching function. This means you can switch between the integrated patch antenna and an external antenna, and the L86-M33 will carry on positioning while it switches.<BR/><BR/><B>How big is it?</B><BR/>Embedded patch antenna: 18.4 x 18.4 x 4.0 mm<BR/>Module: 16.0 x 16.0 x 6.45 mm<BR/><BR/><B>What is GNSS?</B><BR/>GNSS stands for Global Navigation Satellite System. It is a navigation system that uses a group of satellites to transmit signals for navigation application. Types of GNSS include GPS and GLONASS. GNSS is used in applications with vehicles, aircraft and boats. It is also popular with runners, cyclists and hikers, or anyone who wishes to track their location.<BR/><BR/><B>Versions Available:</B><BR/><a href="/web/p/products/9084114">908-4114</a> - box of 1<BR/><a href="/web/p/products/1709180">170-9180</a> - box of 25<BR/>

L76 GNSS (Global Navigation Satellite System) Module The L76 is a single receiver GNSS module that integrates GPS (Global Positioning System) with GLONASS (Global Navigation Satellite System). With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 can acquire and track GPS and GLONASS signals to provide simultaneous open service reception capability. GPS data for location, velocity, and time<BR/>Power Supply 3.3V<BR/>UART Port<BR/>NMEA and PMTK Protocols Supported<BR/>Operating Modes with Full On, Standby, Backup, Period, and AlwaysLocate™<BR/>"ANTON" function<BR/>Compact size 10.1 x 9.7 x 2.5 mm
