L76 GNSS (Global Navigation Satellite System) Module
The L76 is a single receiver GNSS module that integrates GPS (Global Positioning System) with GLONASS (Global Navigation Satellite System). With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 can acquire and track GPS and GLONASS signals to provide simultaneous open service reception capability.
GPS data for location, velocity, and time
Power Supply 3.3V
UART Port
NMEA and PMTK Protocols Supported
Operating Modes with Full On, Standby, Backup, Period, and AlwaysLocate™
"ANTON" function
Compact size 10.1 x 9.7 x 2.5 mm
Power Supply 3.3V
UART Port
NMEA and PMTK Protocols Supported
Operating Modes with Full On, Standby, Backup, Period, and AlwaysLocate™
"ANTON" function
Compact size 10.1 x 9.7 x 2.5 mm

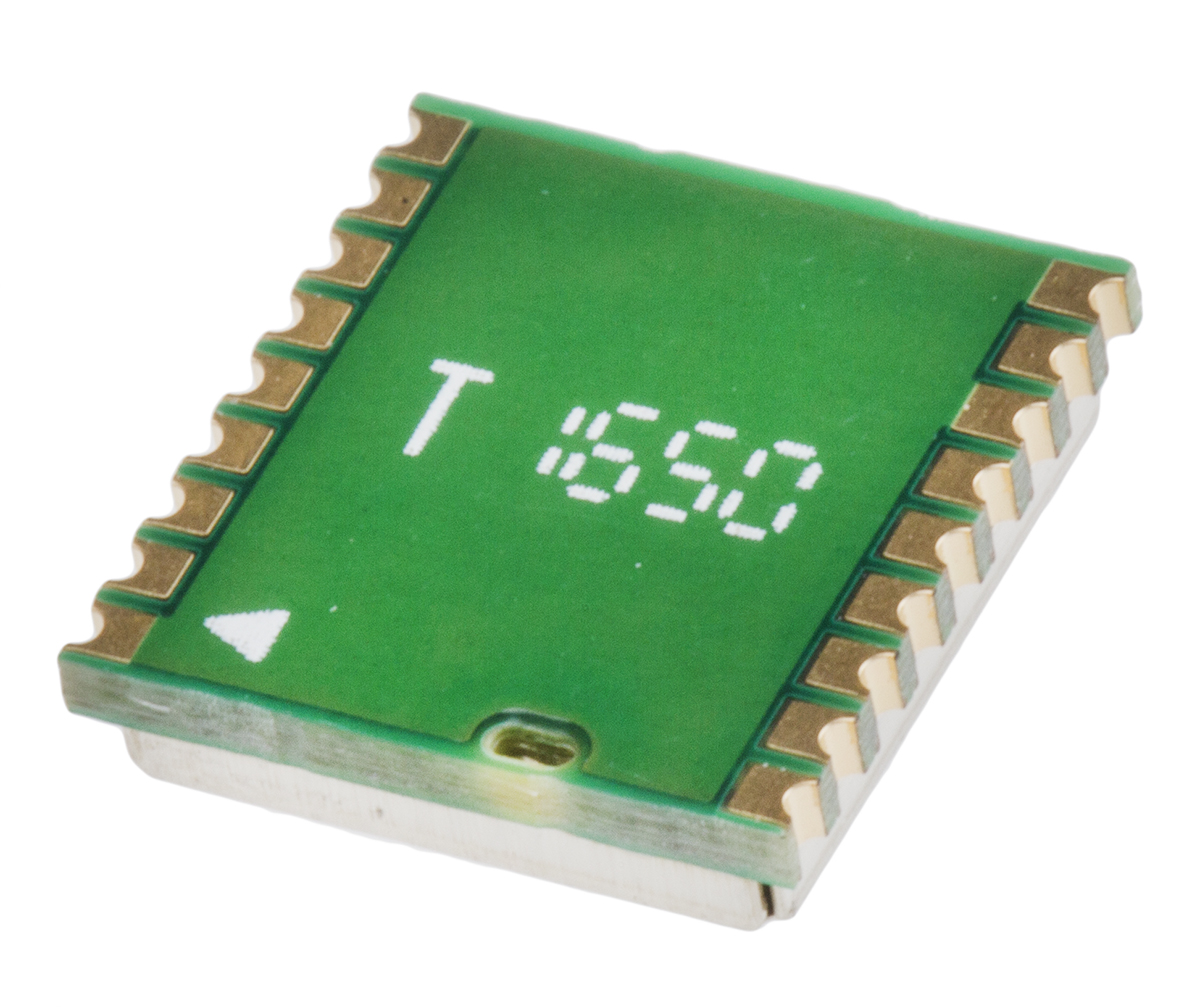

L76-M33 GPS Module
Manufacturer:
Quectel
Manufacturer Part No:
L76-M33
Enrgtech Part No:
ET16798346
Warranty:
Manufacturer
£ 7.01
Checking for live stock
Supported Bus Interfaces:
UART
Number of Channels:
33
Acquisition Sensitivity:
-148dBm
Tracking Sensitivity:
-165dBm
Dimensions:
10.1 x 9.7 x 2.5mm
Height:
2.5mm
Length:
10.1mm
Maximum Operating Temperature:
+85 °C
Minimum Operating Temperature:
-40 °C
Width:
9.7mm
