SRBP Stripboard Board size 100 x 160 x 1.6mm<BR/>Hole dia 1.0mm<BR/>Hole pitch 2.54mm (0.1 in)

PCB Terminal Pins - Press Fit PCB terminal pins

PCB Terminal Pins - Press Fit PCB terminal pins

PCB Terminal Pins - Press Fit PCB terminal pins

PCB Terminal Pins - Press Fit PCB terminal pins

Loop Terminal Assemblies Applications include terminal connections for data or power on plated through hole prototype boards and as a scope probe terminal on production boards<BR/>Spring design allows terminal to be inserted without damaging the hole plating<BR/>Terminal will remain in place when the board is reversed for soldering<BR/>The sintered glass head has a maximum working temperature of 475.C<BR/>Assemblies are available for two common hole diameters (1.32mm and 1.0mm)<BR/>Supplied in bags of 100 loop terminal assemblies

Vero Technologies Bead Terminal Assembly The Vero Technologies black bead terminal assembly is designed to act as a connection terminal on a printed circuit board (fixing an oscilloscope probe). The compliant pin design allows the terminal to be inserted without damaging the hole plating. The terminal is designed to stay in place even when the board is inverted for soldering. The sintered glass bead has a recommended maximum working temperature of 475°C. This exceeds all current standard temperature profile requirements. Its applications include terminal connections for data or power on plated through-hole prototype boards and as a scope probe terminal on production boards. Features and Benefits Hole diameter is 1.02mm for 1.6mm PCB<BR/>Body material is phosphorous bronze Certifications ANSI/ESD S20.20:2014<BR/>BS EN 61340-5-1:2007

Nut Plates, Double-Sided This series of nut plates is designed to give technicians the ability to fine-tune the backplane to the requirements of their system. Each hole is a through-hole and the connector can be wired to series B as OV to prevent cross-talk on series A and B.<BR/>The power supply is via M3 screws or 6.3 mm Faston connectors. The voltage supply to pins 1, 2, 31 and 32 is via 2.54 mm bridges. Series A, B and C can be connected using connecting strips in order to be able to supply one series with the same voltage.<BR/>The end of these connecting strips is then inserted into a through-hole where this voltage is available.<BR/>Backplane bare — please order connectors separately.

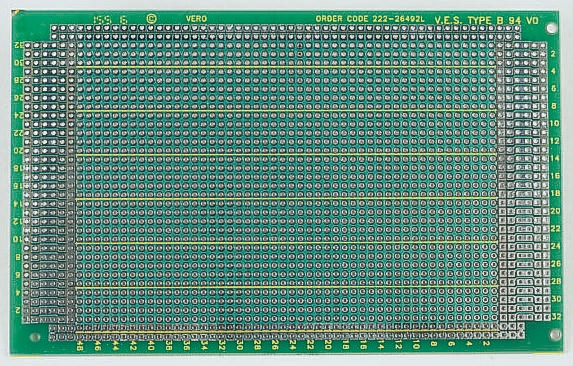

Eurocards: Lined on each side with through-hole Quadratic soldering islands reduce risk of lifting during soldering. Simple connections to adjacent soldering islands can also be made. An earth screen on the component side provides maximum shielding. Plug connectors compliant with DIN 41612, types B and C up to 96 contacts, can be mounted on both sides of the board.

Veroboard Copper Stripboard Veroboards brilliant copper stripboard will suit your purpose for doing simple prototyping work or for development circuitry. It is manufactured from a copper clad laminate board. It features pierced copper tracks and a base material of SRBP. Stripboards also give you brilliant access to solder your components with relative ease. <B>Features and benefits:</B> • Create a simple printed circuit with the copper strips forming the interconnections<BR/>• This stripboard can be cut into a smaller board <BR/>• Single sided copper<BR/>• Tracks are bonded to SRBP board and pierced to accept terminal pins. <BR/> <B>Why a stripboard and not a breadboard?</B> Stripboards and breadboards are slightly different. A breadboard is for early stage prototyping where soldering is not required where as a stripboard can be used for soldering. Breadboards make great use for testing components and basic circuitry. With stripboards you can solder components and make it more of a permanent circuit over a breadboard. <B>Stripboard cutter:</B> <a href="/web/p/products/543535">543-535</a>

Veroboard Copper Stripboard Veroboards brilliant copper stripboard will suit your purpose for doing simple prototyping work or for development circuitry. It is manufactured from a copper clad laminate board. It features pierced copper tracks and a base material of SRBP. Stripboards also give you brilliant access to solder your components with relative ease. <B>Features and benefits:</B> • Create a simple printed circuit with the copper strips forming the interconnections<BR/>• This stripboard can be cut into a smaller board <BR/>• Single sided copper<BR/>• Tracks are bonded to SRBP board and pierced to accept terminal pins. <BR/> <B>Why a stripboard and not a breadboard?</B> Stripboards and breadboards are slightly different. A breadboard is for early stage prototyping where soldering is not required where as a stripboard can be used for soldering. Breadboards make great use for testing components and basic circuitry. With stripboards you can solder components and make it more of a permanent circuit over a breadboard. <B>Stripboard cutter:</B> <a href="/web/p/products/543535">543-535</a>

95.5mm Height, Single-sided Edge Plug These boards feature special copper tracks and pads on 0.1 in (2.54mm) pitch.Board holes 1.0mm (0.040 in). Particularly suited for use when mixing d.i.l. and discrete components on the same board. One end of the board is formed into a gold plated edge plug. Suitable 32-way connector 466-551. dia.,SRBP ,Size 95.5x202x1.6mm. Will accept 30 ICs.,Size 95.5x102x1.6mm. Will accept 12 ICs.
