Double-Sided Microboards Non-PTH
The component side of the card features a colander ground plane which assists glitch free high speed operation by dissipating switching spikes.
This ground plane is solder resist coated and screen printed in yellow, except for the region of the 0V rails which align with the 0 Volt rails on the wiring side for simple through connection.
This ground plane is solder resist coated and screen printed in yellow, except for the region of the 0V rails which align with the 0 Volt rails on the wiring side for simple through connection.

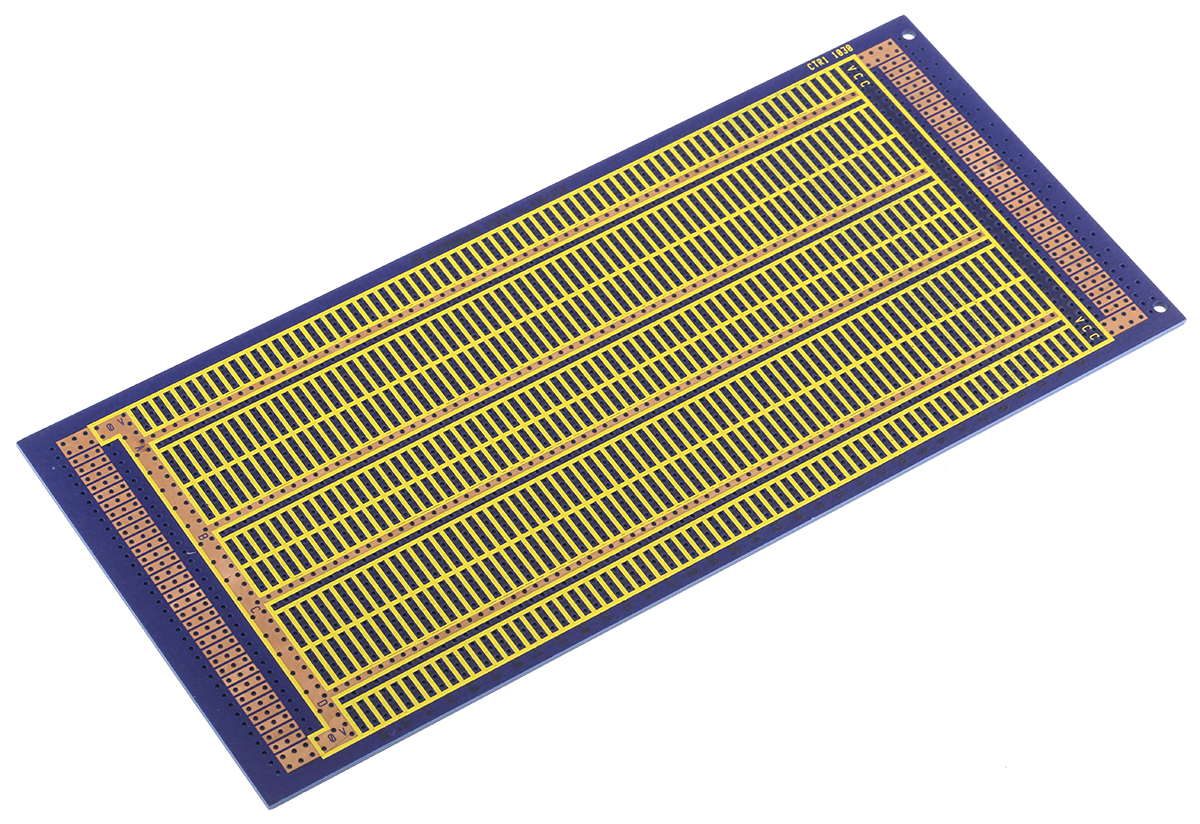

Vero Technologies 10-2857 10-2857, Double-Sided Stripboard Epoxy Glass 220 x 100 x 1.6mm DIN 41612 FR4
Manufacturer:
Vero TechnologiesManufacturer Part No:
10-2857
Enrgtech Part No:
ET16848812
Warranty:
Manufacturer
£ 61.53
Checking for live stock
Base Material:
Epoxy Glass Fabric Laminate
Number of Sides:
2
Dimensions:
220 x 100 x 1.6mm
Hole Diameter:
1mm
Hole Pitch:
2.54 x 2.54mm
Connection:
DIN 41612
FR Material Grade:
FR4
Length:
220mm
Thickness:
1.6mm
Width:
100mm
