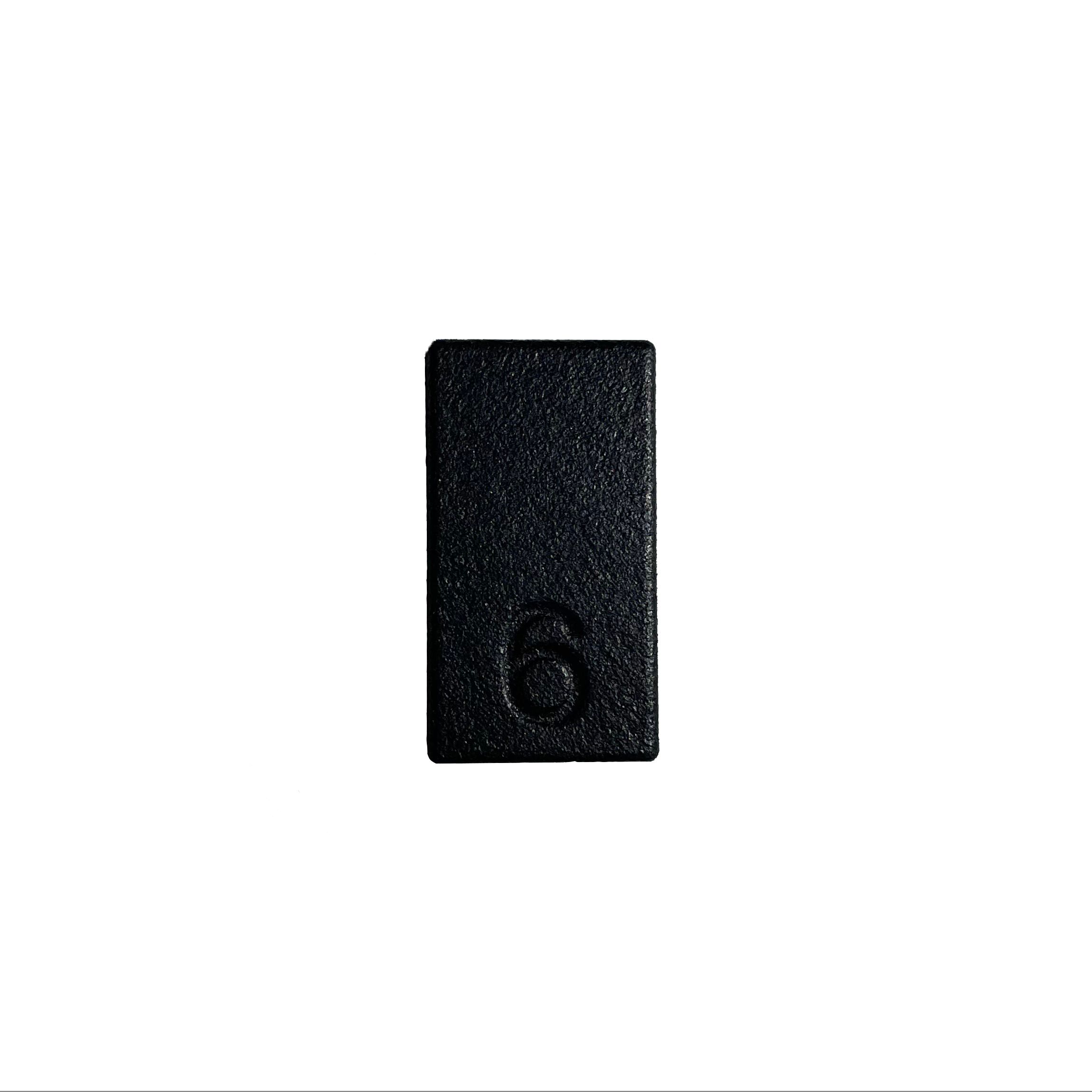

HSM6 is a secure hardware wallet designed to support block chain and crypto applications running on single board computers. It has enhanced cryptographic functions that integrate with popular block chain frameworks including Bitcoin, Ethereum and Cardano. HSM6 is packaged in secure encapsulated module with hidden 30 pin connector that simplifies integration with custom OEM boards and manufacturing workflows. For prototyping and evaluation, developer hats are available for Raspberry Pi and Nvidia <BR/>Jetson. Example code and online documentation provide a simple low-risk way to integrate multiple layers of security into your block chain applications. Software APIs are available in Python, C and C++, with support for Ubuntu and Raspberry Pi OS. HSM6 is an embedded hardware wallet designed to generate, protect, and manage digital assets, including hundreds of cryptographic keys used in modern block chain applications. It&#146;s packaged into a fully encapsulated module that is tough to infiltrate yet easy to integrate into custom OEM designs. Multiple layers of security protect against cyber and physical exploits. Sensitive key material is generated and stored in a secure element with micro-grid protected silicon. A separate security supervisor isolates the secure element from the host computer and provides additional layers such as multi-factor measured identity and authentication of host system, multi-sensor physical security and real time clock. BIP 32/39/44 HD wallet<BR/>640 Foreign and private/public key slots<BR/>ED25519, X25519, ECC KOBLITZ P-256 (secp256k1)<BR/>Secure encapsulated module with hidden 30-pin connector<BR/>Developer hats available for Raspberry Pi and Nvidia Jetson<BR/>Measured device identity and authentication<BR/>Data encryption & signing<BR/>Secure key generation and secure storage<BR/>Physical tamper sensors<BR/>Battery monitoring with last gasp feature<BR/>Hardware root of trust<BR/>Root file system encryption, integrated with LUKS<BR/>External battery<BR/>Soft bind lock<BR/>TLS transaction support<BR/>Real time clock (RTC)

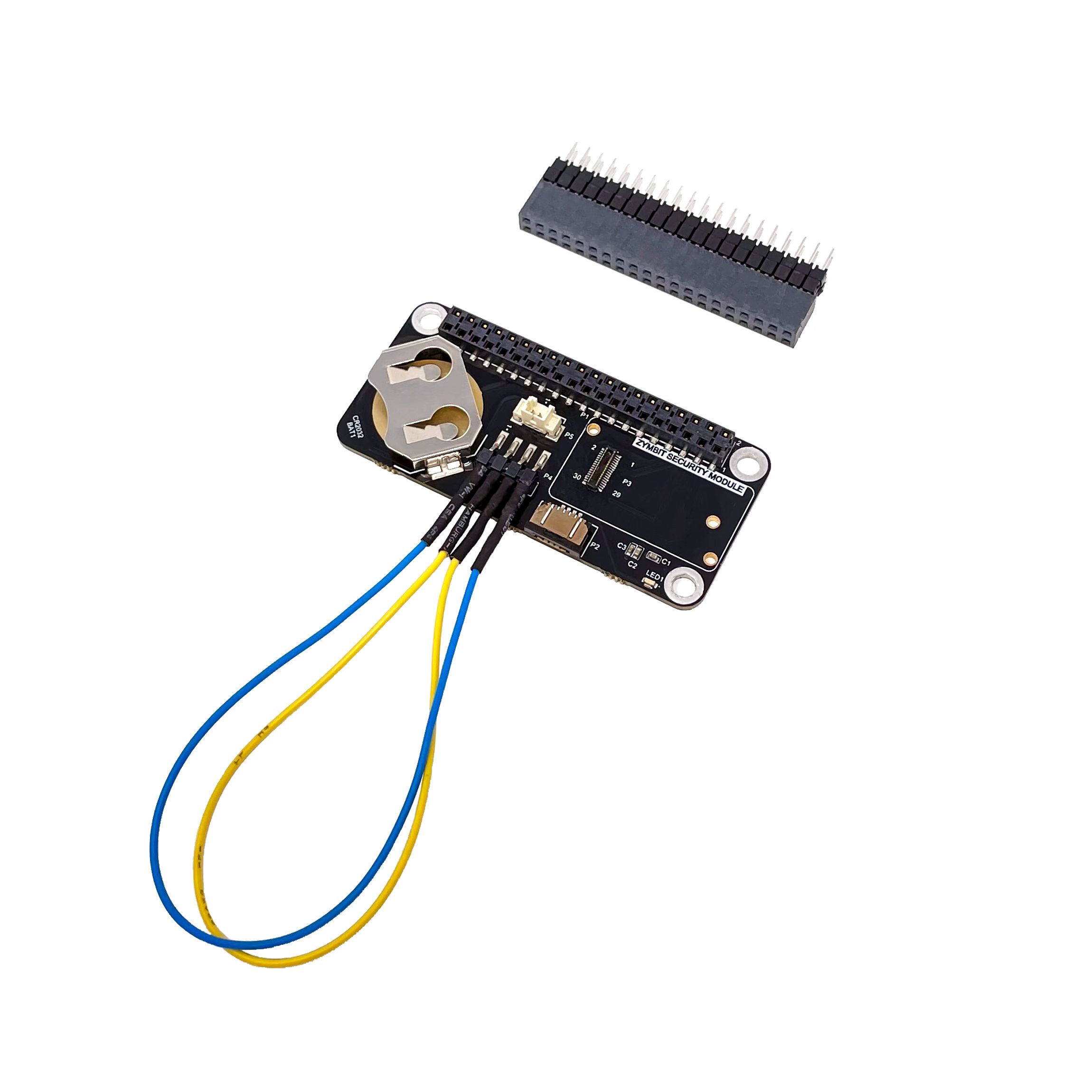

The HSM developer hat 1 makes it easy to test all features of Zymbit&#146;s HSM family of security modules using a Raspberry Pi, Nvidia Jetson or similar single board computer. The hat fits a standard 40 pin GPIO header and provides easy access to perimeter circuits, battery and LED features. Supports all Zymbit HSM modules<BR/>Easy connection to perimeter tamper circuits through 4 pin header and FPC<BR/>CR2032 coin cell primary battery holder<BR/>Auxiliary battery connector type Molex 51021-0200-B<BR/>Blue LED status indicator<BR/>RPI half hat format<BR/>40 pin GPIO header with pass through connector<BR/>Supplied with extender connector and jumper wires<BR/>Battery NOT included<BR/>CAD files available
