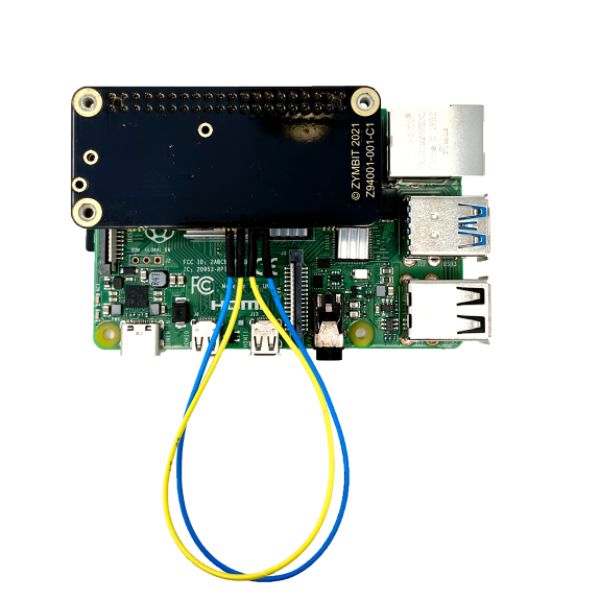

The HSM developer hat 1 makes it easy to test all features of Zymbit’s HSM family of security modules using a Raspberry Pi, Nvidia Jetson or similar single board computer. The hat fits a standard 40 pin GPIO header and provides easy access to perimeter circuits, battery and LED features. Supports all Zymbit HSM modules
Easy connection to perimeter tamper circuits through 4 pin header and FPC
CR2032 coin cell primary battery holder
Auxiliary battery connector type Molex 51021-0200-B
Blue LED status indicator
RPI half hat format
40 pin GPIO header with pass through connector
Supplied with extender connector and jumper wires
Battery NOT included
CAD files available
