Automotive Full Bridge Motor Drivers, STMicroelectronics
These full bridge (H-Bridge) motor driver devices are intended for a wide range of automotive applications.
Features
• Output current: 30A
• Undervoltage and overvoltage shutdown
• Overvoltage clamp
• Thermal shut down
• Cross-conduction protection
• Linear current limiter
• Very low standby power consumption
• PWM operation up to 10 kHz
• Protection against loss of ground and loss of Vcc RS Product Codes 714-7746 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge
920-6285 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge (Pack of 1000)
• Undervoltage and overvoltage shutdown
• Overvoltage clamp
• Thermal shut down
• Cross-conduction protection
• Linear current limiter
• Very low standby power consumption
• PWM operation up to 10 kHz
• Protection against loss of ground and loss of Vcc RS Product Codes 714-7746 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge
920-6285 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge (Pack of 1000)

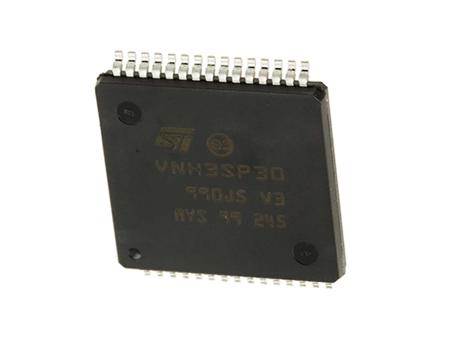

VNH3SP30TR-E, Brushed Motor Driver IC, 40 V 30A 30-Pin, MultiPowerSO
Manufacturer:
STMicroelectronics
Manufacturer Part No:
VNH3SP30TR-E
Enrgtech Part No:
ET11744193
Warranty:
Manufacturer
£ 6.58
Checking for live stock
Motor Type:
Brushed DC
Output Configuration:
Full Bridge
Maximum IGBT Collector Current:
30A
Maximum Collector Emitter Voltage:
40 V
Mounting Type:
Surface Mount
Package Type:
MultiPowerSO
Maximum Operating Supply Voltage:
36 V
Pin Count:
30
Minimum Operating Supply Voltage:
5.5 V
Typical Switching Frequency:
10kHz
Dimensions:
17.2 x 16 x 2.25mm
Width:
16mm
