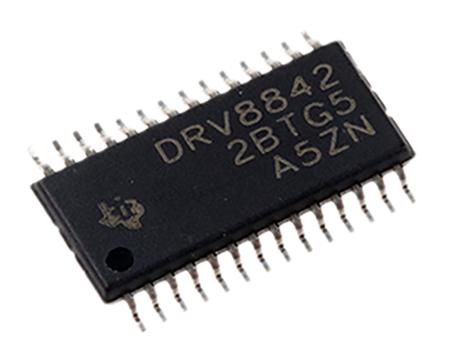

DRV8842PWP, Brushed Motor Driver IC, 45 V 3.5A 28-Pin, HTSSOP

Motor Type:

Brushed DC

Output Configuration:

Full Bridge

Maximum IGBT Collector Current:

3.5A

Maximum Collector Emitter Voltage:

45 V

Mounting Type:

Surface Mount

Package Type:

HTSSOP

Maximum Operating Supply Voltage:

45 V

Pin Count:

28

Minimum Operating Supply Voltage:

8.2 V

Typical Switching Frequency:

50kHz

Width:

4.5mm

Height:

1.05mm

Minimum Operating Temperature:

-40 °C

Length:

9.8mm

Maximum Operating Temperature:

+85 °C

Dimensions:

9.8 x 4.5 x 1.05mm
