The Toshiba sine-wave PWM Drive is developed for three-phase brushless DC fan motors. It adopts QFN32 type package, adding RESX and VREF2 pins.
Automatic lead angle control (InPAC: Intelligent Phase Control)
Lead angle control with external input
Hall sensor input/Hall IC input
Forward rotation/Reverse rotation switch
Number of pulses of rotation pulse signal output is selectable
Output current can be limited
Built-in regulator circuit (VREF= 5 V (typ.), 35 mA (max))
Operating supply voltage range: VCC = 6 V to 16.5 V
Built-in motor lock detection
Lead angle control with external input
Hall sensor input/Hall IC input
Forward rotation/Reverse rotation switch
Number of pulses of rotation pulse signal output is selectable
Output current can be limited
Built-in regulator circuit (VREF= 5 V (typ.), 35 mA (max))
Operating supply voltage range: VCC = 6 V to 16.5 V
Built-in motor lock detection

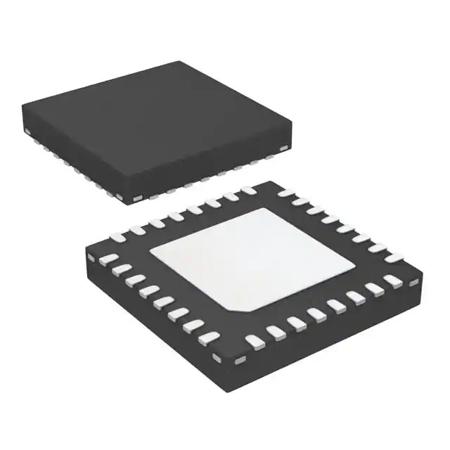

TC78B042FTG(Z,EL), BLDC Motor Driver IC 30-Pin, SSOP
Manufacturer:
Toshiba
Manufacturer Part No:
TC78B042FTG(Z,EL)
Enrgtech Part No:
ET21606402
Warranty:
Manufacturer
£ 0.85
Checking for live stock
Motor Type:
BLDC
Output Configuration:
PWM
Configuration:
3 Phase
Maximum Output Current:
2mA
Maximum Supply Voltage:
16.5 V
Mounting Type:
Surface Mount
Package Type:
SSOP
Pin Count:
30
