The Toshiba PWM chopper type 4 ch H-bridge motor driver can drive two steppers, two DC brushed motors and one stepping motor, etc. by combining 4 ch H-bridges and it can also drive dual DC brushed motors or stepping motors for large-current drive by setting large mode. The VM power supply voltage can be used 6.3 V or more hence it is optimal for battery powered applications with 7.2 V power supply. Monolithic IC structured by CD process
Low ON-resistance: Ron = 0.6 Ω
ON-resistance (Ron) = 0.3 Ω.
Over-current detection (ISD), thermal shutdown (TSD), and VM power-on reset circuits

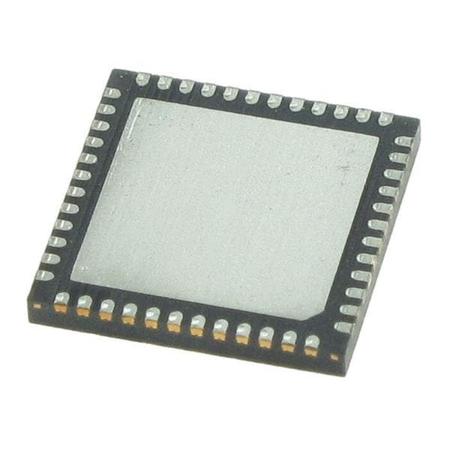

Package: QFN48
Maximum output withstand voltage: 40 V (max)
Output current: 3.5 A (peak) in DC Motor (S) mode
Chopping frequency can be set by external capacitor and resistor
High-speed chopping is possible at 100 kHz or more
