BARTH Logic Module The BARTH STG-580 MOD panel mount highly innovative Mini-PLC that extends the established Barth series of Mini-PLCs. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The MODBUS interface allows you to connect various industrial network components to the mini-PLC. It has 3 analogues inputs, which can vary from 0VDC to 10VDC and 2 digital inputs up to 1kHz. This logic module has 4 power PWM outputs up to 1.5A and 1PWM power output up to 10Khz. This logic module can be easily programmed using miCon-L software, which does not require a difficult programming language. Features and Benefits Open source programming optionWide operating voltage that ranges between 7VDC and 32VDCOperating temperature ranges between -40°C and 60°CVibration resistant and rugged sealingTTL-232/USB connection to PCGraphically programmable MODBUS dataReliable solid-state output Fail-safe oscillatorProgrammable LED status Applications Industrial automationBuilding automationAutomotive technologyEnvironmental technologyProcess control

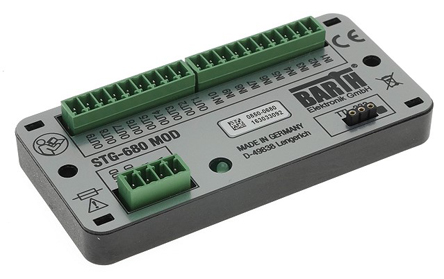

BARTH Logic Module The BARTH STG-680 MOD panel mount highly innovative Mini-PLC that extends the established Barth series of Mini-PLCs. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The MODBUS interface allows you to connect various industrial network components to the mini-PLC. It has six analogues inputs which can vary from 0VDC to 10VDC and four digital inputs up to 1kHz. This logic module has 8 power PWM outputs up to 1.5A and 1 PWM power output up to 10Khz. This logic module can be easily programmed using miCon-L software, which does not require a difficult programming language. Features and Benefits Open source programming optionWide operating voltage that ranges between 7VDC and 32VDCOperating temperature ranges between -40°C and 60°CVibration resistant and rugged sealingTTL-232/USB connection to PCGraphically programmable MODBUS dataReliable solid-state outputFail-safe oscillatorProgrammable status LED Applications Industrial automationBuilding automationAutomotive technologyEnvironmental technologyProcess control

BARTH Logic Module The BARTH STG-820 CAN panel mount Mini-PLC has a powerful 32-bit ARM Cortex core. It provides outstanding graphical programming capability at the lowest current consumption and small form factor. The automotive-qualified CAN2.0A/B/CANopen interface can operate in noisy environments and allows connection of various network components to the Mini-PLC. It has 3 analogues inputs which can vary from 0VDC to 30VDC. This logic module has 4 solid-state power outputs up to 1.5A and 1 PWM power output. This logic module can be easily programmed using KEIL Vision software suite. Features and Benefits Open source programming optionWide operating voltage that ranges between 7VDC and 32VDCOperating temperature ranges between -40°C and 70°CVibration resistant and rugged sealingComprehensive fail-safe functionsPulse and frequency counter input 40μsTTL-232 3.3V InterfaceTiny and super flat CAN logic controller Applications Industrial automationAutomotive technologyMaritime technologyTechnical education

Connection Cables for Mini-PLC Cables for use with Barth Mini-PLC’s. • 122-1522 USB connection cable for use with STG-115/600 Mini-PLC• 122-1523 USB connection cable for use with STG-550/570/580/650/680/700 Mini-PLC• 122-1524 connection cable suitable for Microchip PICkit 3 & all Open source Mini-PLC• 134-8868 ARM® Cortex® Mini-PLC connection cable for STG-800/810/820

STG-810 ARM Mini-PLC Barth professional range of STG-810 CAN Mini-PLC with a powerful 32-bit ARM Cortex core. The STG-810 Mini-PLC features a rugged CAN/CANopen interface with intuitive graphical programming capability. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption in a small form factor. To program the STG-810 CAN Mini-PLC in the open source way the KEIL μVision software suite is required.(http://www2.keil.com/stmicroelectronics-stm32/mdk)The 32-bit ARM Cortex core provides two high-speed events, pulse and frequency counter inputs and one 16-bit PWM output combined with a precise internal voltage reference for the 12-bit analogue inputs. The automotive-qualified CAN2.0A/B/CANopen interface is able to operate in noisy environments and allows connection of various network components to the Mini-PLC. Features and Benefits • IrDA/SIR Interface• Tiny and super-flat CAN Logic Controller• High-Performance 32-Bit ARM Cortex• 3 analogue Inputs 0 V dc to 30 V dc, 12-bit ADC• Event Counter Input 25 kHz• Pulse and Frequency Counter Input 40μs• 4 Solid-State Power Outputs up to 1.5 A• 1 Power PWM Output 16-Bit 1 Hz to 25 kHz• CAN 2.0A/B and SAE J1939 Interface• CANopen Interface (Open Source)• Comprehensive Fail-Safe Functions• TTL-232 3.3V Interface• Open Source C Programming• Wide Operating Voltage Range 7 V dc to 32 V dc• Wide Operating Temp. Range -40 to +70°C• Vibration resistant and rugged Sealing

STG-100 - Mini-PLC STG-100 is an outdoor Mini-PLC which comes in a robust splash-proof housing, and with a double-spaced TFT-Display with blue LED-backlight. The open hardware concept opens up completely new application fields. Mini-PLC with LC-DisplayBuild in a splash-proof housingWide supply voltage range 7-32 VdcIdeal for 12/24 V power supply systems8 analog/digital inputs 0-30 VdcAnalog/digital converter with 10 bit resolution8 Short circuit- and overload protected outputs (1.5 A each)Hardware Real Time Clock (RTC)3 PWM outputs up to 32 kHz2 frequency counter inputs up to 65 kHzI²C connectionSPI connectionInternal voltage monitoringLCD 2x16 characters with blue backlightFreely programmable LCD4 Enter Keys for easy menu navigationProgramming in BASIC, C or AssemblerEEPROM memory data retention >40 yearsFully ESD and EMV tested designEasy connection provided by spring terminalsIP65 protectionSupplied with spring terminal connectors and user manual

BARTH Logic Module The BARTH STG-650 CAN panel mount logic module is a highly integrated programmable logic controller. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. It opens up completely new application fields with space restrictions and high integration level requirements. This logic module has low power consumption and can operate over a wide range of voltages, which makes it suitable for 12V and 24V battery-powered systems. The CAN bus allows the user to connect to a variety of network components to the Mini-PLC. It has 6 analogues inputs with a 12-bit resolution that can vary from 0VDC to 30VDC and 4 digital inputs up to 1Khz. The logic module has 8 power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language. Features and Benefits Reliable solid-state outputsProgrammable status LEDOnly 1 CAN InterfaceTTL-232/USB connection to PCIntuitive graphical programming capabilityWide operating voltage that ranges between 7VDC and 32VDCUltra-flat housing, height 10mmVibration resistant and rugged sealingVery low current consumption Applications Industrial automationBuilding automationAutomotive technologyMaritime technologyEnvironmental technologyLight and show technology

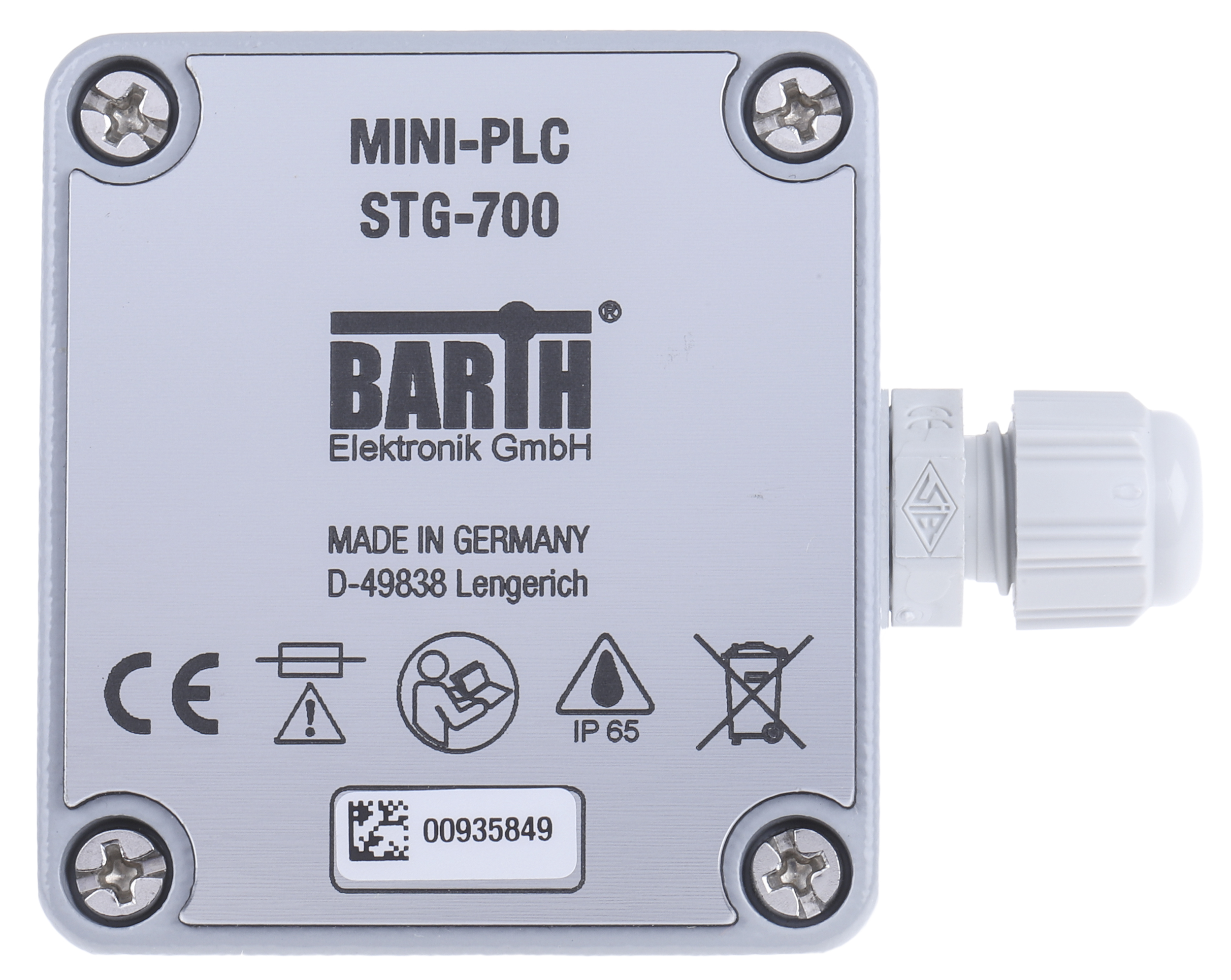

STG-700 STEP - Mini-PLC The STG-700 STEP combines a powerful stepper motor controller with an ultra-compact Mini-PLC in a rugged splash proof aluminium diecast housing. It features graphical programming, universal I/Os and a CAN interface. The Mini-PLC can control large format displays using a bipolar stepper motor converting an analogue or digital input signal to a matching motor angle.Built in a fully integrated splash proof housing, the STG-700 STEP is ideal in applications within harsh environments. Features and Benefits • Tiny CAN logic stepper motor controller• 2 analogue inputs 0-30 V dc, 12-bit ADC• 2 digital inputs up to 1 kHz• 4 power outputs up to 1.5 A• Power stepper motor output 1.5 A• 1 CAN 2.0A/B interface• Reliable solid-state outputs• Fail safe oscillator• Programmable status LED• TTL-232/USB connection to PC• Intuitive graphical programming capability• Wide operating voltage 78-32 V dc• Wide operating temperature range -40 to +50°C• Vibration resistant and rugged sealing• Aluminium diecast housing, IP66 rated Applications The outstanding features of the STG-700 STEP make it a suitable choice for various application fields such as industrial automation, process control, building automation and automotive technology.

BARTH Touch-Screen HMI Displays The BARTH DMA-15 connect has a compact 2.4in CAN display. The mini-PLC supports a CAN interface. Its bright, 240x320px TFT display integrates resistive touch technology. Both display design and menu can be selected out of a variety of templates with one single CAN message. This feature ensures that no display programming is necessary. You can fully integrate the DMA-15 within the graphical miCon-L software suite supporting any BARTH mini-PLC with CAN interface. Features and Benefits Integrated piezo speakerPanel-Mount without visible screwsPanel cut-out (LXW): 61mmx46mmDimensions (LXW): 69mm x50mmOperating voltage ranges between 7V and 32V DC open source programming optionOpen Source Programming OptionCustomized TemplatesLED BacklightDesign Template Selection via CAN Applications Industrial and building automationAutomotive and maritime technologyTest system controlTechnical education/university

BARTH Logic Module The BARTH STA-650 CAN panel mount logic module is a highly integrated programmable logic controller. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. It opens up completely new application fields with space restrictions and high integration level requirements. This logic module has low power consumption and can operate over a wide range of voltages, which makes it suitable for 12V and 24V battery-powered systems. The CAN bus allows the user to connect to a variety of network components to the Mini-PLC. It has 8 analogues inputs that can vary from 0VDC to 30VDC and two digital inputs up to 10Khz. This logic module has eight power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language. Features and Benefits Reliable solid-state outputsProgrammable status LEDOnly 1 CAN InterfaceTTL-232/USB connection to PCIntuitive graphical programming capabilityWide operating voltage ranges between 7VDC and 32VDCUltra-flat housingHeight is 10mmVibration resistant and rugged sealingVery low current consumption Applications Industrial automationBuilding automationAutomotive technologyMaritime technologyEnvironmental technologyLight and show technology

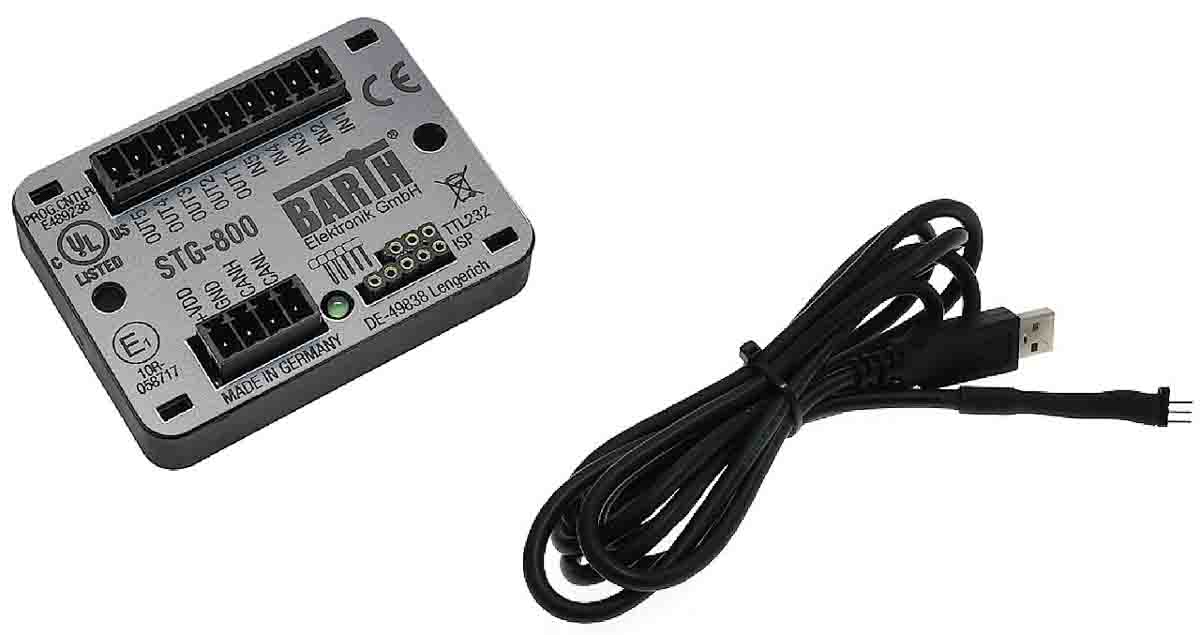

The Barth starter kit STA-800 comes with loco cube mini-PLC STG-800. It has Additional quick clamps for VDD, GND, CANH and CANL. Elegant board with four rubber feet Removable from rugged plastic box

DMA-20 CAN Mini-PLC Touch Display Barth splashproof DMA-20 2.4“ CAN Display allows connection to any Mini-PLC which supports a CAN interface. It offers a bright 240 x 320 pixel TFT display that integrates resistive touch technology.Display design and menu can be selected out of various templates with one single CAN message. This feature ensures that no display programming is necessary. The DMA-20 can be fully integrated within the graphical miCon-L Software Suite supporting any BARTH Mini-PLC with CAN interface. With the Open Source Programming option, the DMA-20 can be easily customised within the powerful KEIL μVision Software Suite. Features and Benefits • Universal CAN Display• Colour Touch TFT 2.4“ 240x320p• LED Backlight• Design Template Selection via CAN• No Programming necessary• Open Source Programming Option• Customised Templates via USB• Compatible with all CAN Mini-PLCs• Backside Mini-PLC Mounting Plate• Front IP65 Protection Grade• Panel-Mount without visible Screws• Panel Cut-Out (LxW): 106 x 78 mm• Dimensions (LxW): 115 x 85 mm• Operating Voltage 7 V dc to 32 V dc
