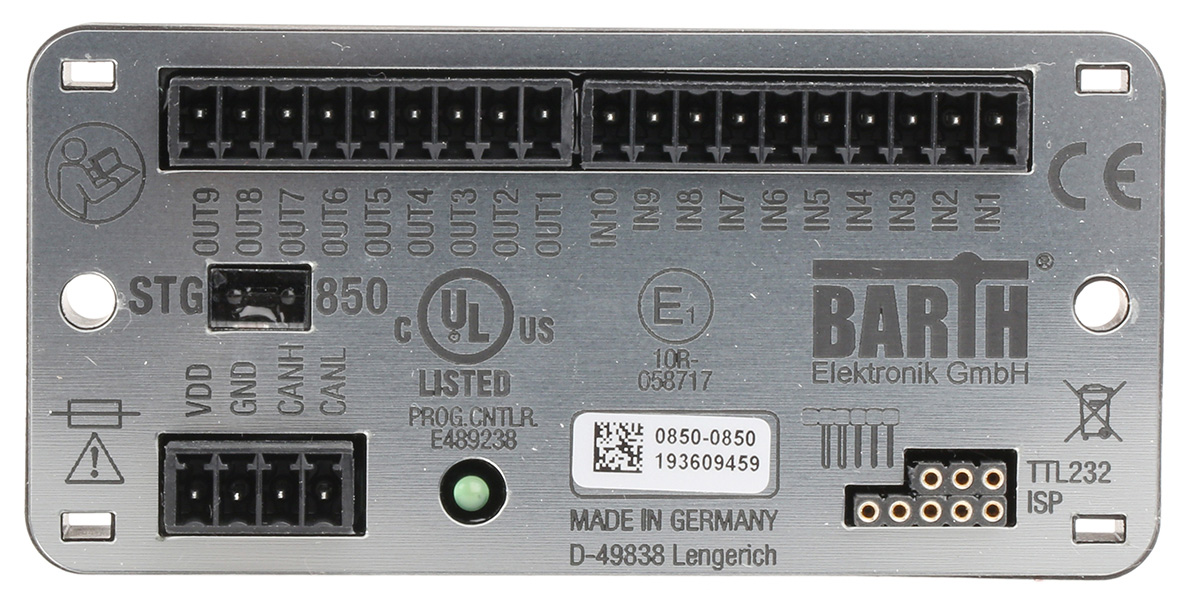

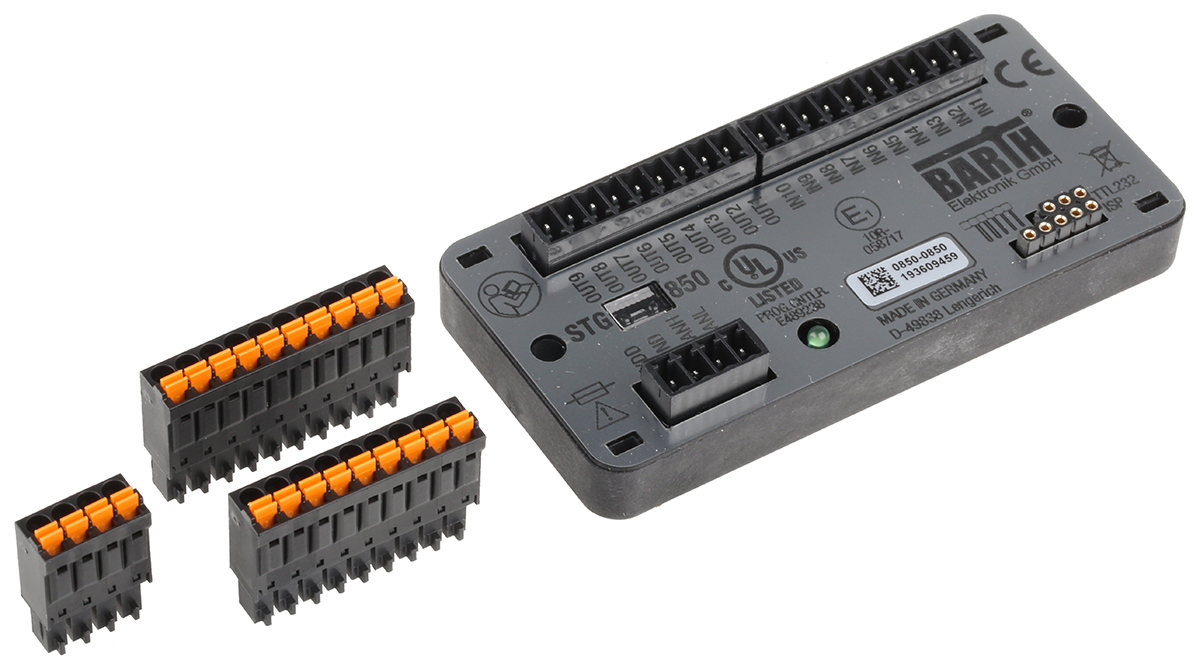

BARTH Logic Module The BARTH STG-850 CAN panel mount logic module extends the well-established Mini-PLC series with the most powerful 32-bit ARM Cortex Core and IrDA interface. It features rugged CAN/CANopen, IRDA/SIR and TTL-232 3.3V In connectivity with Open Source C programming capability at the lowest current consumption and the well-known small form factor. It has six analogues inputs, which can vary from 0VDC to 30VDC and four digital inputs. This logic module has eight power outputs up to 1.5A and 1PWM power output. Features and Benefits Tiny and super flat CAN logic controller
Operating temperature ranges between -40°C and 70°C
Event counter input is 25kHz
Pulse and frequency counter input is 40μ seconds
Supply voltage ranges between 7VDC and 32VDC Applications Industrial automation
Automotive technology
Maritime technology
Test and control systems
Technical education
White goods
