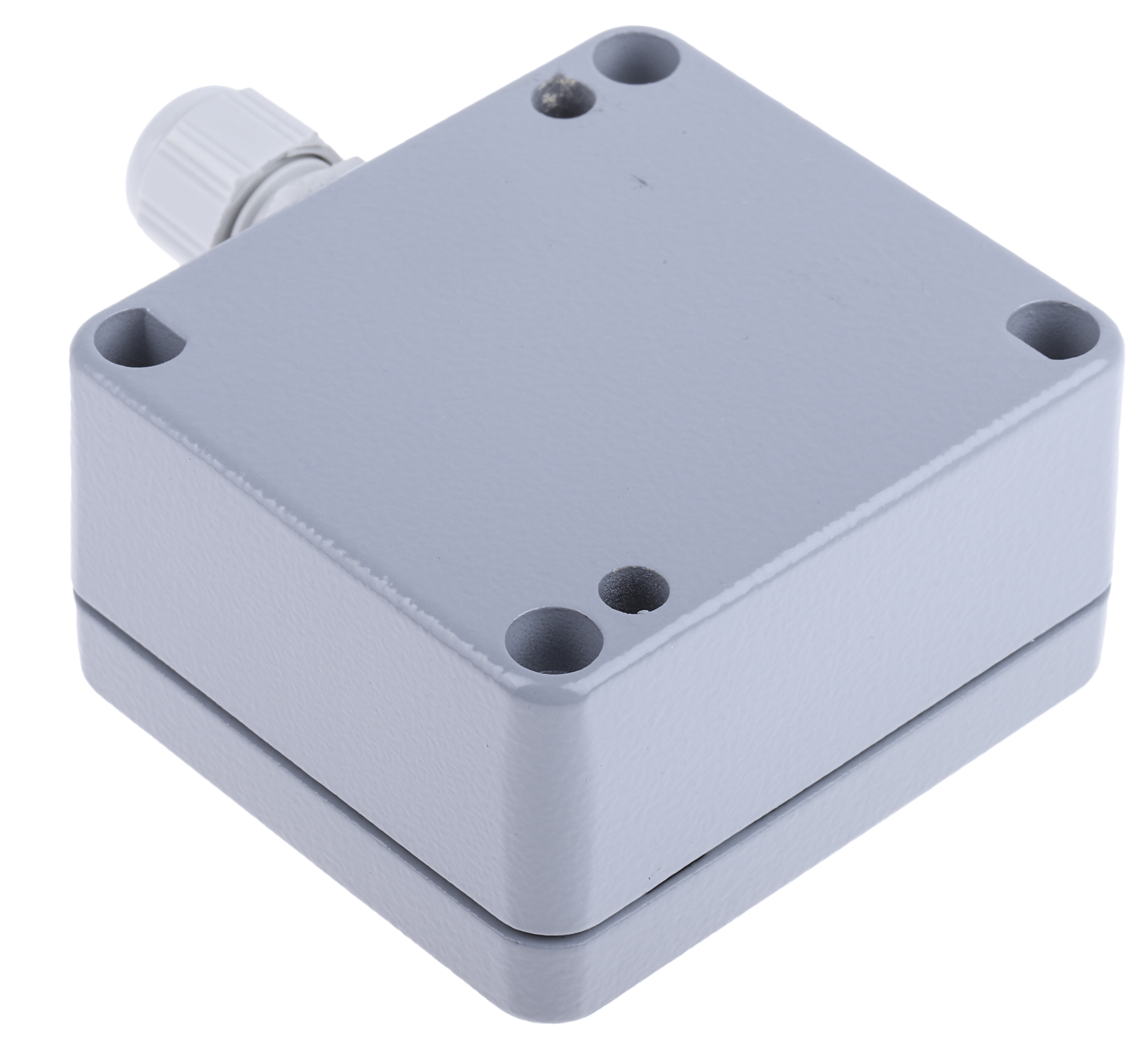

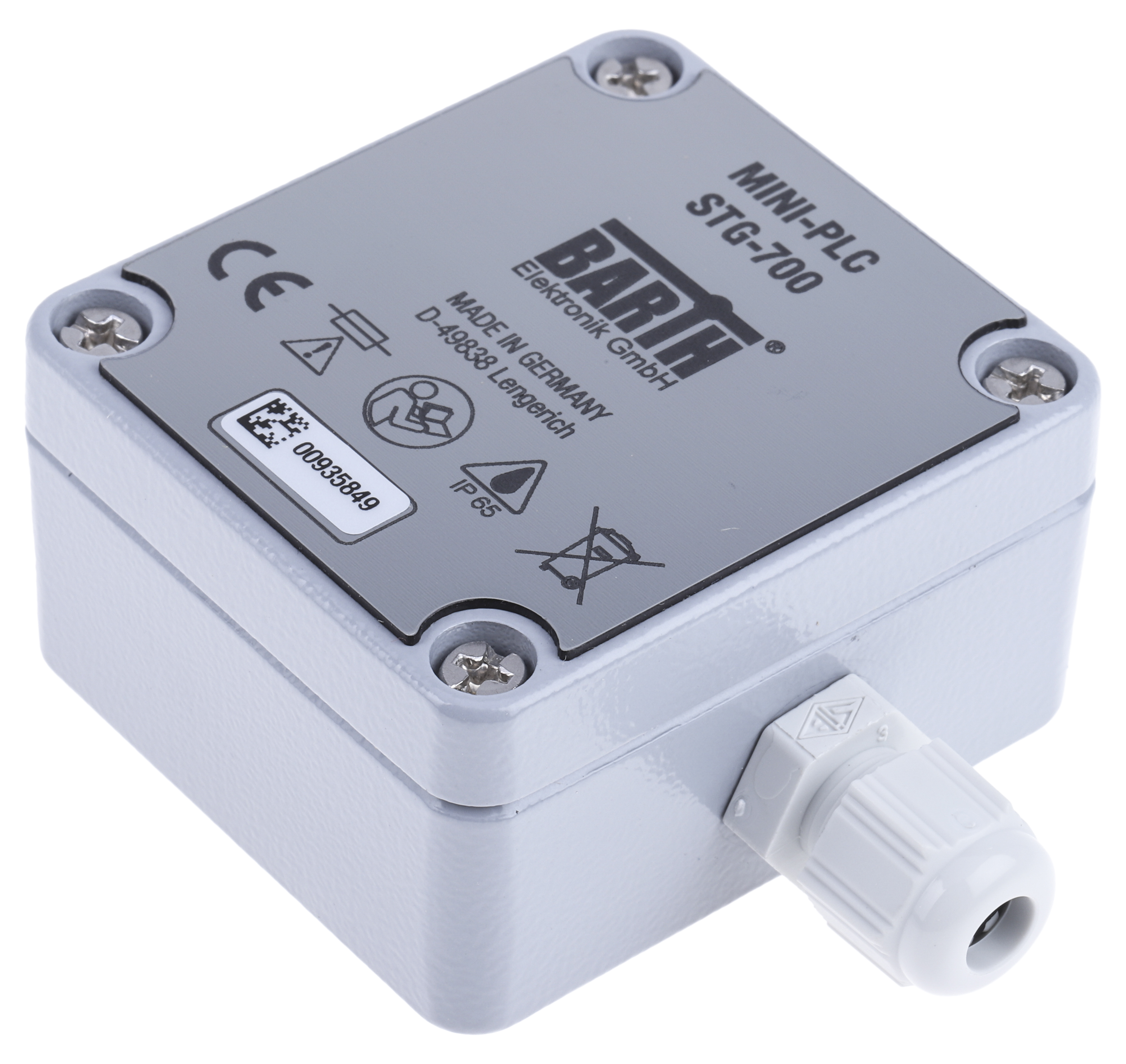

STG-700 STEP - Mini-PLC The STG-700 STEP combines a powerful stepper motor controller with an ultra-compact Mini-PLC in a rugged splash proof aluminium diecast housing. It features graphical programming, universal I/Os and a CAN interface. The Mini-PLC can control large format displays using a bipolar stepper motor converting an analogue or digital input signal to a matching motor angle.
Built in a fully integrated splash proof housing, the STG-700 STEP is ideal in applications within harsh environments. Features and Benefits • Tiny CAN logic stepper motor controller
• 2 analogue inputs 0-30 V dc, 12-bit ADC
• 2 digital inputs up to 1 kHz
• 4 power outputs up to 1.5 A
• Power stepper motor output 1.5 A
• 1 CAN 2.0A/B interface
• Reliable solid-state outputs
• Fail safe oscillator
• Programmable status LED
• TTL-232/USB connection to PC
• Intuitive graphical programming capability
• Wide operating voltage 78-32 V dc
• Wide operating temperature range -40 to +50°C
• Vibration resistant and rugged sealing
• Aluminium diecast housing, IP66 rated Applications The outstanding features of the STG-700 STEP make it a suitable choice for various application fields such as industrial automation, process control, building automation and automotive technology.
