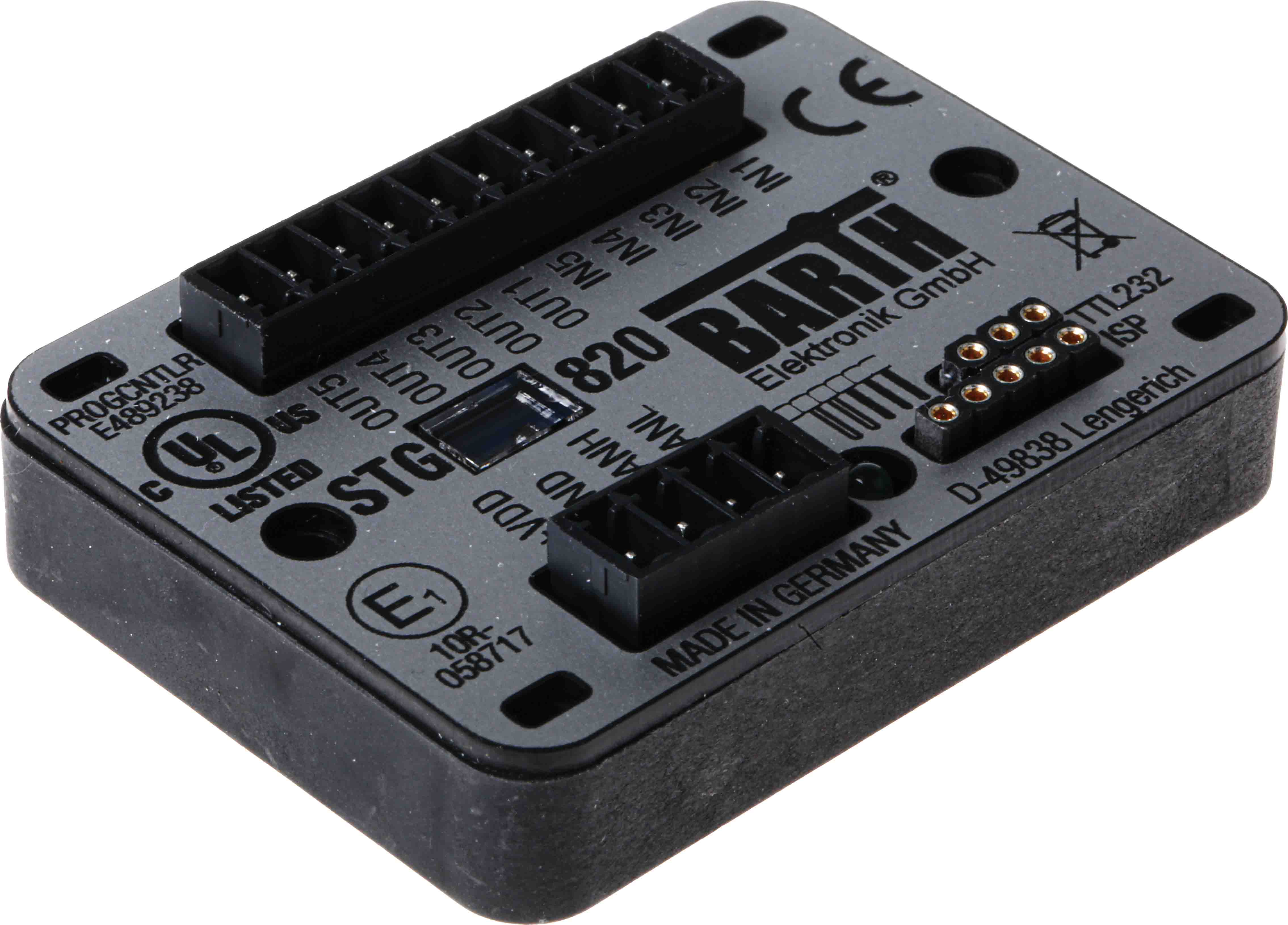

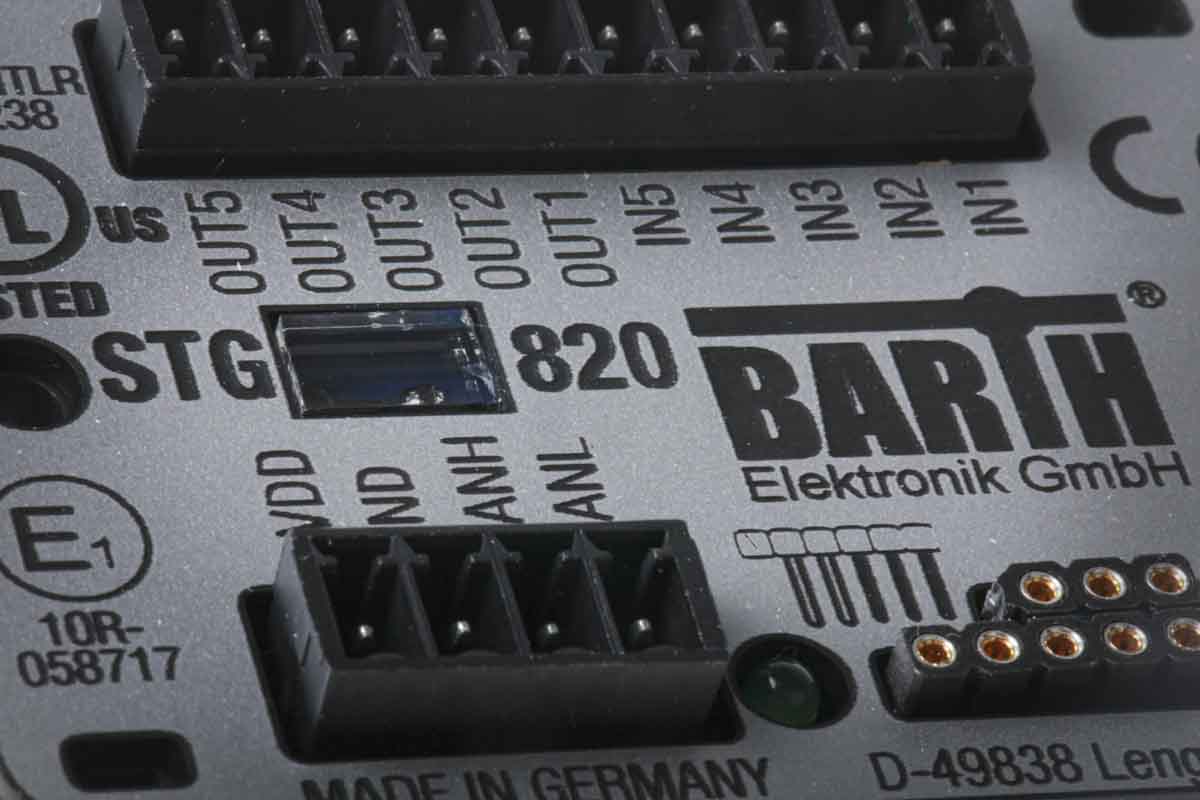

BARTH Logic Module The BARTH STG-820 CAN panel mount Mini-PLC has a powerful 32-bit ARM Cortex core. It provides outstanding graphical programming capability at the lowest current consumption and small form factor. The automotive-qualified CAN2.0A/B/CANopen interface can operate in noisy environments and allows connection of various network components to the Mini-PLC. It has 3 analogues inputs which can vary from 0VDC to 30VDC. This logic module has 4 solid-state power outputs up to 1.5A and 1 PWM power output. This logic module can be easily programmed using KEIL Vision software suite. Features and Benefits Open source programming option
Wide operating voltage that ranges between 7VDC and 32VDC
Operating temperature ranges between -40°C and 70°C
Vibration resistant and rugged sealing
Comprehensive fail-safe functions
Pulse and frequency counter input 40μs
TTL-232 3.3V Interface
Tiny and super flat CAN logic controller Applications Industrial automation
Automotive technology
Maritime technology
Technical education
