The Digilent ADP3450 Analog Discovery Pro device with BNC probe is a four channel high-resolution oscilloscope, offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers the Analog Discovery Pro comes with 12 instruments ready to analyse mixed signal systems through our free software, Waveforms. 16 digital channels2-channel arbitrary waveform generator12 instruments to analyse mixed signal systems via Waveforms softwareMax sampling rate: 0.5GS/s analogue and 125MS/s digitalTerminal-based Linux OSEthernet data streaming2 dedicated external trigger inputsUsed in the Logic Analyser, Pattern Generator, Protocol Analyser, and Digital I/O

The Digilents a ettus USRP bus series of enclosure kit which provides shields and protects the industrial-grade Ettus USRP with a Flexible rate 12 bit ADC/DAC. Standard-B USB 3.0 connectorRF coverage from 70 MHz – 6 GHzGrounded mounting holes

The Digilent Analog Discovery Pro is a mixed signal oscilloscope designed for professional engineers. It features analogue inputs, analogue output, and digital I/O, all operating at up to 125 MS/s. Users can both receive and generate digital signals to test and analyse data from various devices while simultaneously powering those systems with its robust power supply. The feature packed design allows it to perform the functions of several test and measurement devices and can replace a stack of traditional instruments. USB based Mixed Signal OscilloscopeBNC connectors and an aluminium caseTwo analogue inputs 50 plus MHz bandwidthOne analogue output 15 MHz bandwidth16 digital input or output channelsSample rates up to 125 MS per sTwo power supply outputsDeep memory buffers for long acquisitionsSync multiple devices for increased channel count

The Digilent Pmod CMPS2 is a digital compass module using Memsic's MMC34160PJ magnetometer. The local magnetic field strength can be measured in a ±16 Gauss range with a heading accuracy of 1° and up to 0.5 mG of resolution. Low noise 3-axis digital compass0.5 milligauss field resolution in ±16 Gauss fieldsI2C Slave, FAST (≤400 kHz) modeOptional pull-up resistors for SCL and SDA pins1° heading accuracySmall PCB size for flexible designs 0.8" x 1.25" (2.0 cm x 3.2 cm)6-pin Pmod connector with I2C interfacePass-through Pmod host port for daisy chainingFollows Digilent Pmod Interface Specification 1.1.0Library and example code available in resource center

Digilent Zedboard Zynq-7000 Soc Development Kit 410-248 The Digilent ZedBoard Zynq®-7000 is a low-cost development board for the Xilinx Zynq-7000 SoC. This board contains everything necessary to create a Linux, Android, Windows, or other OS/RTOS-based design. Several expansion connectors expose the processing system and programmable logic I/Os for easy user access. ZedBoard is supported by the www. Zedboard. Org community website where users can collaborate with other engineers working on Zynq designs. With the help of ZedBoard and the Zynq-7000 AP SoCs tightly coupled ARM processing system and 7-series programmable logic to create unique and powerful designs. Zynq-7000 SoC XC7Z020-CLG484-1 Onboard MT41K128M16HA-15E:D 512MB DDR3 SDRAM memory Onboard S25FL256S 256Mbit Quad-SPI serial flash memory 30 x 11mm 128 x 32px OLED display panel Onboard ADAU1761 I²S audio CODEC Onboard CY7C64225 USB-UART bridge controller SD card socket Onboard USB-JTAG Programming via microUSB connector RJ45 socket for 10/100/1000 Ethernet USB OTG 2.0 via microUSB connector LPC FMC connector HDMI 1080p socket VGA (12-bit colour) DE15 socket 4 x 3.5mm jack sockets for the microphone, line-in, line out, and headphones 5 x 12-pin Pmod™ expansion connectors Reset pushbutton Programming pushbutton 8 x user slide-switches 7 x user pushbuttons 8 x user LEDs Features and Benefits Dual-core ARM Cortex™-A9 512 MB DDR3 256 MB Quad-SPI flash Onboard USB-JTAG programmingSupport 10/100/1000 Ethernet USB OTG 2.0 and USB-UART Applications Video processingReconfigurable computingMotor controlSoftware accelerationLinux/Android/RTOS developmentEmbedded ARM processingGeneral Zynq-7000 AP SoC prototyping Certifications ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 In the fast-evolving world of embedded systems and single-board computers (SBCs), the right Processor Development Tools are crucial for achieving optimal performance and reliability. Whether you're a hobbyist, engineer, or developer, having access to top-tier development tools can significantly streamline your workflow, enhance productivity and ensure the success of your projects. RS’ offering of processor development tools aims to meet the diverse needs of professionals and enthusiasts alike.Processor Development Tools are indispensable for designing, testing, and optimising processors, microcontrollers, and other embedded systems. These tools provide the necessary interface between the hardware and software, allowing you to code, debug, and fine-tune your designs with precision. They help in identifying bugs, optimizing code, and ensuring that your systems run efficiently. With the right tools, you can reduce development time, lower costs, and increase the reliability of your products.Whether you're working on a complex embedded system or a simple single-board computer project, the right processor development tools can make all the difference. Browse our collection today to find the perfect tools for your next project and take your development capabilities to the next level. Whether you’re looking for Development Boards, Development Kits, Evaluation Boards or Evaluation Kits, RS can match your Processor Development Tool needs.

Pmod CON3 Quad Servomotor Interface The Pmod CON3 provides a standard 3-pin connector for up to four hobby servo motors. • 4 x standard 3-pin hobby servomotor connectors• System must supply 50Hz PWM control signals• Screw connector option for external servo power supply• Jumper link for power supply source selection• 6-pin Pmod connector with GPIO interface• Follows Digilent Pmod Interface Specification Type 1• Dimensions: 25 x 20mm

Pmod OLEDrgb OLED display Digilent’s Pmod OLEDrgb (Revision B) is an organic RGB LED module with a 96 x 64 pixel display capable of 16-bit colour resolution. Designed to work in conjunction with a host board, communicating via the SPI protocol, the Pmod OLEDrgb is a graphical display that allows users the option to light up any individual pixel on the OLED screen. Utilising a Solomon Systech SSD1331 display controller, the PmodOLEDrgb receives information from the host board to be displayed on the OLED screen. Ideal for displaying a range of information including graphs and text as well as full colour pictures. What’s on-board?• 20 x 13mm RGB OLED display• 96 x 64 pixels• 16-bit colour resolution• 12-pin Pmod connector w/SPI interface• Serial SPI host communication• 2x low-power display shutdown modes• 35 x 25mm overall size

The Arty S7 board features new Xilinx Spartan-7 FPGA and is the latest member of the Arty family for Makers and Hobbyists. The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx and is fully compatible with Vivado Design Suite. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Internal clock speeds exceeding 450MHzOn-chip analog-to-digital converter (XADC)Programmable over JTAG and Quad-SPI FlashSystem Features:USB-JTAG Programming circuitryPowered from USB or any 7V-15V sourceExpansion Connectors:4 Pmod connectorsArduino/chipKIT Shield connectorArty S7 Board Spartan-7 FPGADigilent cardboard packaging with protective foam

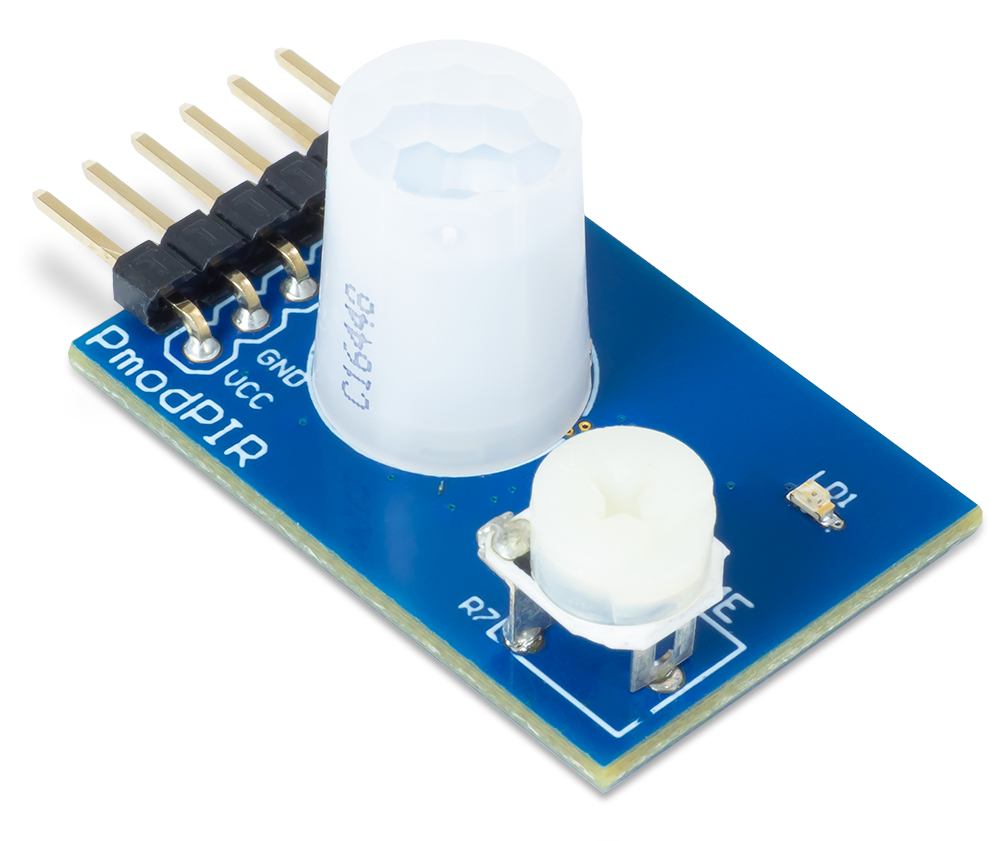

The Digilent Pmod PIR is a Passive Infrared Sensor for monitoring movement at low power. With the EKMC1601111, you can detect movement up to 5 meters away. Optimized low-power modesHigh sensitivity center for small movements of small objectsNormal sensitivity center for larger movements of large objectsDetect movement up to 5 meters away.6-pin Pmod connector with GPIO interface

Digilent CAN 2.0B Controller Module The Digilent Pmod CAN 2.0B controller has an integrated transceiver. It utilizes the Microchip MCP25625 to enable CAN communication with a variety of external devices. It enables balanced differential signalling to eliminate most of the electromagnetic field (EMF) and provide high noise immunity within the system. This module is ideal for applications that require high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility and electrostatic discharge. Features and Benefits: • 12-pin Pmod connector with an SPI interface• 2 receive buffers• 3 transmit buffers with prioritization and abort feature• 6 filters and 2 masks with optional filtering on the first two data bytes• Interrupt output pin• Small PCB size for flexible designs 1.4inx1.8in (3.6cmx4.6cm)• Standard DB9 connector for a secure connection• Suitable for 12V and 24V systems as well• Up to 10MHz SPI clock speed Applications: • Automotive• Embedded systems Certifications: • ANSI/ESD S20.20:2014• BS EN 61340-5-1:2007• ISO-11898-1 certified• ISO-11898-2 certified• ISO-11898-5 certified

Pmod USBUART USB-UART Bridge The PmodUSBUART provides a seamless bi-directional link between a USB bus and a UART serial bus. It is based on the FT232RQ Bridge device. • MicroUSB connector• Powered from USB connection• Jumper link option to power system board from Pmod (+3.3V)• Power LEDs• Dimensions: 25 x 20mm
