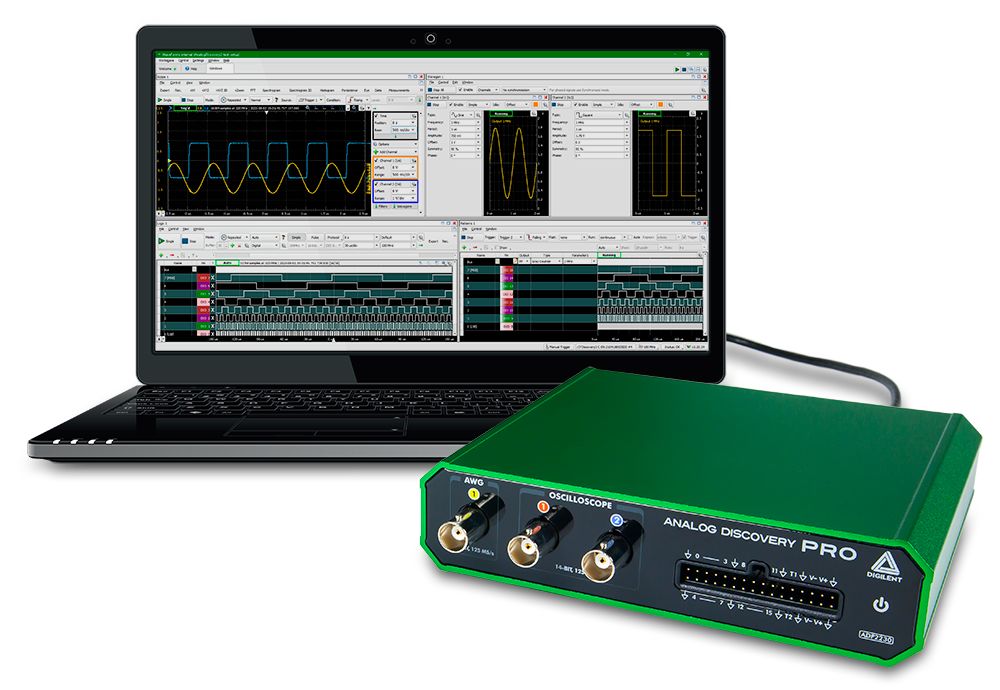

The Digilent Analog Discovery Pro is a mixed signal oscilloscope designed for professional engineers. It features analogue inputs, analogue output, and digital I/O, all operating at up to 125 MS/s. Users can both receive and generate digital signals to test and analyse data from various devices while simultaneously powering those systems with its robust power supply. The feature packed design allows it to perform the functions of several test and measurement devices and can replace a stack of traditional instruments. USB based Mixed Signal Oscilloscope

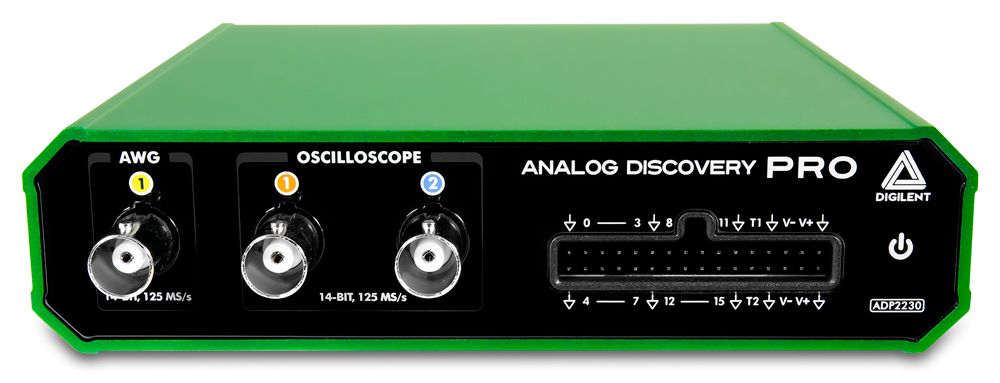

BNC connectors and an aluminium case
Two analogue inputs 50 plus MHz bandwidth
One analogue output 15 MHz bandwidth
16 digital input or output channels
Sample rates up to 125 MS per s
Two power supply outputs
Deep memory buffers for long acquisitions
Sync multiple devices for increased channel count
