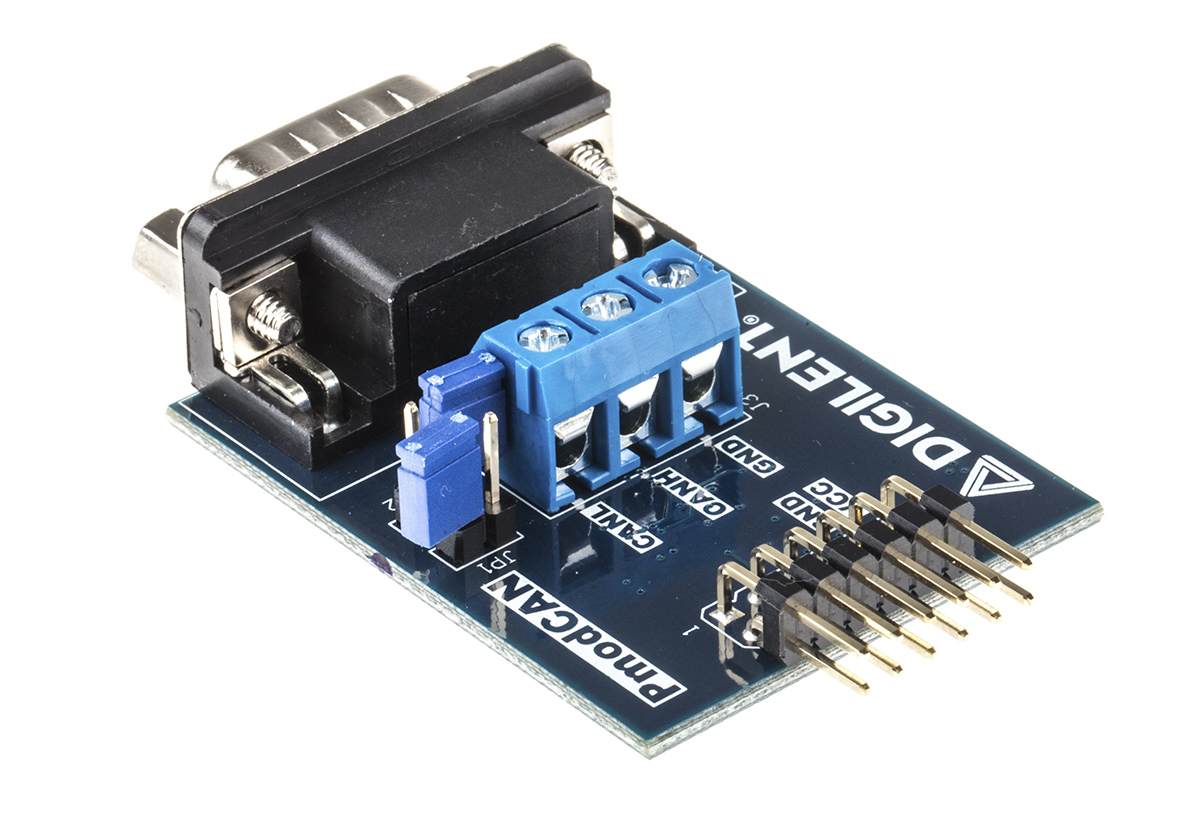

Digilent CAN 2.0B Controller Module The Digilent Pmod CAN 2.0B controller has an integrated transceiver. It utilizes the Microchip MCP25625 to enable CAN communication with a variety of external devices. It enables balanced differential signalling to eliminate most of the electromagnetic field (EMF) and provide high noise immunity within the system. This module is ideal for applications that require high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility and electrostatic discharge. Features and Benefits: • 12-pin Pmod connector with an SPI interface
• 2 receive buffers
• 3 transmit buffers with prioritization and abort feature
• 6 filters and 2 masks with optional filtering on the first two data bytes
• Interrupt output pin
• Small PCB size for flexible designs 1.4inx1.8in (3.6cmx4.6cm)

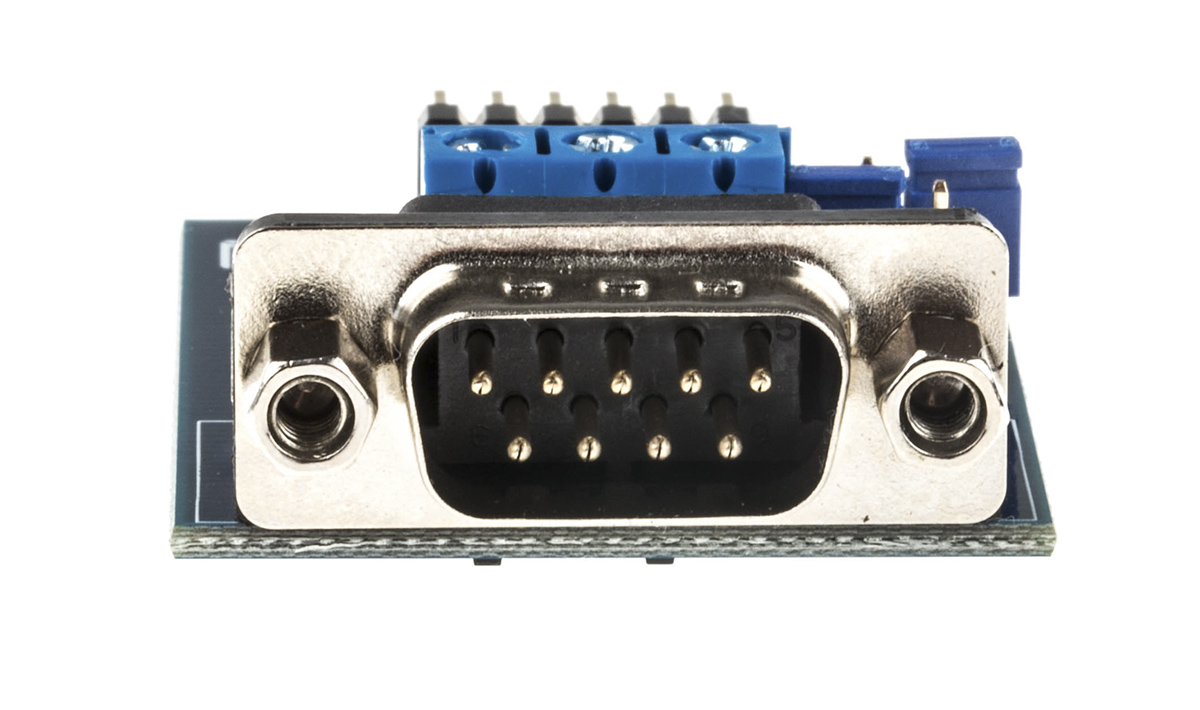

• Standard DB9 connector for a secure connection
• Suitable for 12V and 24V systems as well
• Up to 10MHz SPI clock speed Applications: • Automotive
• Embedded systems Certifications: • ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• ISO-11898-1 certified
• ISO-11898-2 certified
• ISO-11898-5 certified
