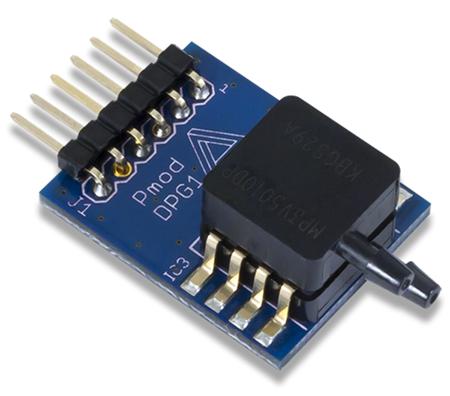

Pmod DPG1 Differential Pressure Gauge The Pmod DPG1 is a differential pressure gauge module featuring an NXP MP3V5010DP piezoresistive transducer and a Texas Instruments ADCS7476 12-bit ADC. • 0 to 10kPa differential pressure range
• Temperature compensated and calibrated
• Host communication: SPI bus
• Follows Digilent Pmod Interface Specification Type 2
• Dimensions: 25 x 20mm
