4D Systems Resistive Touch LCD Starter Kits with DIABLO16 Processor for Use with Arduino The range of resistive touch LCD starter kits for Arduino available from 4D Systems provide everything needed by a user to easily interface between an Arduino (using its serial port + one GPIO pin) and the resistive touch LCD module, eliminating wiring headaches. The user can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV used to program the Arduino itself.Powered from the Arduino the display module DIABLO16 processor can be programmed and configured using 4D Systems’ Workshop4 IDE software (see datasheet for download instruction). The resistive touch LCD module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card. Features DIABLO16 processorBuilt-in extensive 4DGL graphics and system library functionsFlash memory for user codeAudio amplifier and loudspeakermicroSD card socket16 x GPIO pinsI2C, SPI and UART communicationsPowered from Arduino Kit Contents LCD resistive touch moduleuUSB-PA5 programming adaptor4D Arduino adapter shield4GB microSD cardFemale to female 150mm 5-way jumper cable5 way male to male adapterQuick start user guide

4D Systems Gen4 4.3in Display Module Starter Kit The 4D Systems Gen4 display module starter kit is a 4.3in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Diablo16 graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 4GB micro-SD Card, 5-way cable for easy connection to a breadboard or host via the gen4-IB and 30-way 150mm FFC cable accessory boards for a range of functionality advancements. Features and Benefits • 16 General-purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs. This 16 customisable GPIO, capable of PWM, TTL Serial, 3xI2C channel, SPI channels, Pulse Out and Quadrature Input• 32kb SRAM memory for user application code and data• Display full-colour images with 480x272 resolution, RGB 65K true to life colours• It has PWM audio pin driven by WAV files from micro-SD card, and for sound generation, for an external amplifier • On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes• One SPI dedicated for SD card and 3x configurable SPI channels available. Applications • Embedded applications• Raspberry Pi Resolution 480x272Brightness 400 cd/m2Controller DIABLO16Storage Temperature -30°C to +80°CConnector 30 way FPCDisplay Viewing Area (mm) 95.04 x 53.86Module Dimensions (mm) 127.60 x 69.30 x 7.80Supply Voltage 5.0V DCColours RGB 65K

4D Systems Resistive Touch LCD Modules with DIABLO16 Processor for Use with Arduino The range of resistive touch LCD modules for Arduino available from 4D Systems provide everything needed by a user to easily interface between an Arduino (using its serial port + one GPIO pin) and the resistive touch LCD module, eliminating wiring headaches. The user can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV used to program the Arduino itself.Powered from the Arduino the display module DIABLO16 processor can be programmed and configured using 4D Systems’ Workshop4 IDE software (see datasheet for download instruction). The resistive touch LCD module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card. Features DIABLO16 processorBuilt-in extensive 4DGL graphics and system library functionsFlash memory for user codeAudio amplifier and loudspeakermicroSD card socket16 x GPIO pinsI2C, SPI and UART communicationsPowered from Arduino Kit Contents LCD Resistive Touch Module4D Arduino adapter shieldFemale to female 150mm 5-way jumper cableQuick start user guide

4D Systems Gen4 7in Display Module Starter Kit The 4D Systems Gen4 display module starter kit is a 7in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Diablo16 graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 4GB micro-SD Card, 5-way cable for easy connection to a breadboard or host via the gen4-IB and 30-way 150mm FFC cable accessory boards for a range of functionality advancements Features and Benefits • 16 General-purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs. This 16 customisable GPIO, capable of PWM, TTL Serial, 3xI2C channel, SPI channels, Pulse Out and Quadrature Input.• 32kb SRAM memory for user application code and data• Display full-colour images with 800x480 resolution, RGB 65K true to life colours• It has PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier • On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes• One SPI dedicated for SD card and 3x configurable SPI channels available. Applications • Embedded applications• Raspberry Pi

MOTG Bluetooth Add-On Module The 4D Systems MOTG (Modules on the Go) product family provides an innovative plug and play solution for adding key functionalities to 4D Systems gen4 LCD Display Modules.Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.This MOTG Bluetooth Add-On Module provides Bluetooth 4.2 Low Energy capability, allowing a gen4 LCD Module to interface with Bluetooth devices. The module features the 4D Systems Universal MOTG Interface (UMI) to provide plug and play functionality.The module functionality is provided by a Microchip RN4870 Bluetooth Module. Featured is an integrated ceramic chip antenna, secure AES128 encryption and remote over the air configuration capability. A host MCU can dynamically control the RN4870 over UART though the use of an available ASCII command interface. Features Adds Bluetooth capability to gen4 LCD Display ModulesFeatures the Microchip RN4870 Bluetooth ModuleBluetooth 4.2 Low Energy stackIntegrated Ceramic Chip AntennaASCII command interface API over UARTRemote configuration over the airSupports 2-wire 3.3 V TTL UART interfaceOn board Status LEDUniversal MOTG Interface (UMI) for plug and play functionalityFits MOTG AC1, AC2 and AC3 Interface BoardsCompact – Fitment maintains slim module profile Kit Contents 1 x MOTG Bluetooth Add-On Module

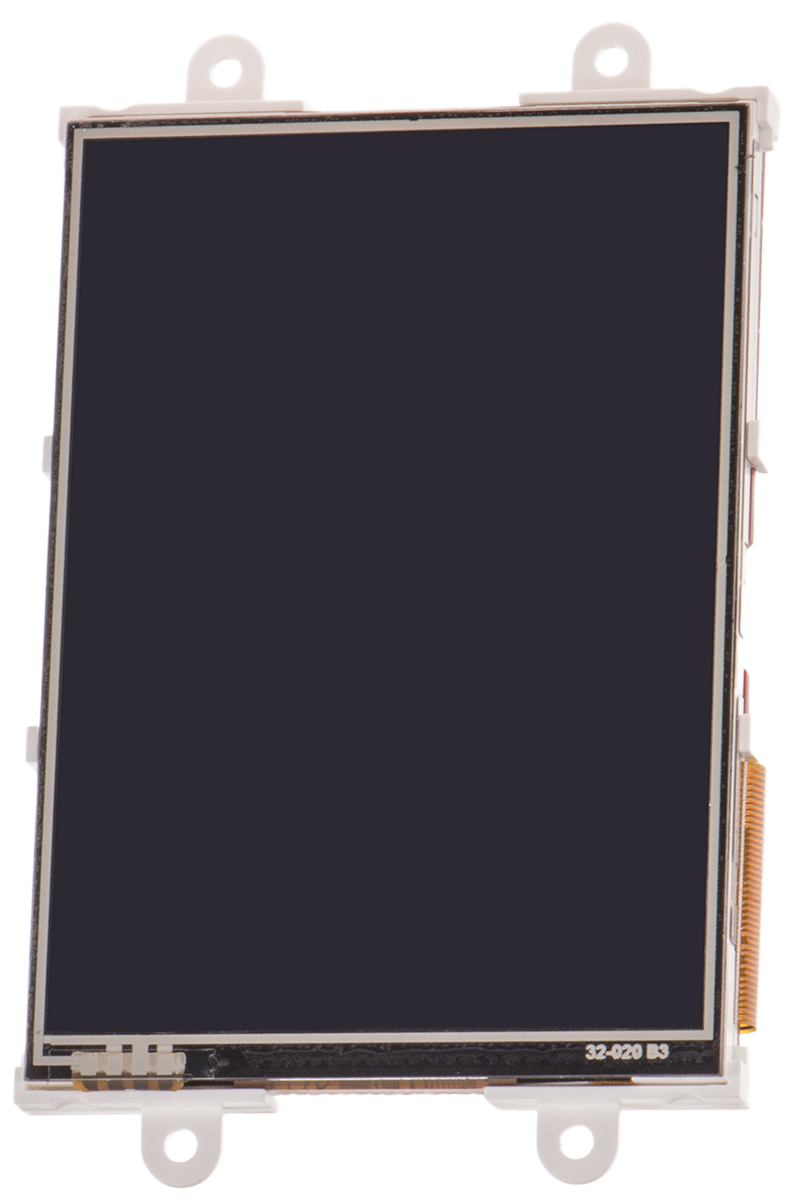

4D Systems LCD Display Module The 4D Systems LCD 3.2in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. This module is embedded with PICASO processor and hardware interface for Raspberry Pi. It has 240 x 320 pixels resolution and 160cd/m² brightness. The display module offers an active viewing area of the width of 48.6mm and a height of 64.8mm. Features and Benefits • Built-in extensive 4DGL graphics and system library functions• Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier• Display full colour images, animation, icons and video clips• DOS compatible file access (FAT16 format) as well as low level access to card memory• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes• RGB 65K true to life colours• Universal intelligent LCD-TFT display module powered by the Picaso processor Certifications • CE compliant• REACH compliant

4D Systems Gen4 2.4in Display Module Starter Kit The 4D Systems Gen4 display module starter kit is a 2.4in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Picaso graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, 4D Arduino adaptor shield-II, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 150mm 30 way FFC cable, 4GB industrial microSD card and 5-way female-to-female ribbon cable with a male-to-male adaptor. Features and Benefits • 13 x general-purpose I/O pins support fast 8-bit parallel data transfer through upper 8 bits• 14kb flash memory for user application code and data• 8 x 16-bit timers with 1msec resolution• Built-in extensive 4DGL graphics and system library functions• Display full-colour images with 240x320 resolution, RGB 65K true to life colours• On-board latch type microSD memory card connector for multimedia storage and data logging purposes• One I2C interface master• Two asynchronous hardware serial ports, TTL interface with 300 to 600K baud Applications • Embedded applications• Raspberry Pi

gen4-uLCD-70DT-AR Diablo16 Touch LCD Module with Arduino Shield The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution.This 7.0” 800 x 480 pixel variant features 4-wire resistive touch for applications requiring a human-machine interface. Also included is an Arduino adaptor shield, allowing the module to be quickly connected to an Arduino for programming.The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments. Features 7.0” 800 x 480 display moduleRGB 65k true to like colours4-wire resistive touchCompact – module dimensions 187.0 x 102.1 x 8.3 mm (including mounting tabs)6 banks of 32KB Flash memory for user application code and data32KB of user RAM16 GPIO – including 4 configurable analogue outputs3 x I2C channels3 x SPI channelsUp to 6 GPIO can be used as pin countersUp to 6 GPIO for PWMUp to 10 GPIO for pulse outputUp to 14 GPIO can be configured for quadrature encoder inputs (2 channels)30-pin FPC connection for signals, power, communications, GPIO and programmingmicro-SD card connector for multimedia storage and data loggingDedicated PWM audio pinSupports all Windows fonts4.0 V to 5.5 V operationRoHS and REACH compliantCE Compliant Kit Contents 1 x 7.0” gen4-uLCD-70DT LCD display module1 x gen4-IB interface board1 x 150mm FFC Cable1 x 4D Arduino adaptor shield

The IoD-09 (Internet of Displays) series is a range of miniature display modules Designed and Manufactured by 4D Systems. The IoD-09 modules feature a full colour 0. 9” TFT LCD display. They are powered by the WiFi enabled ESP8266, which offers an array of functionality and options for any Designer / Integrator / User. The IoD-09 modules can be easily programmed using 4D Systems Workshop4 or the Arduino IDE installed with the ESP8266 core. The feature rich 4D Systems GFX4dIoD09 library enables speedy development of applications by providing extensive primitive graphics functions, enhanced graphics via Workshop4, SD card access, and much more, all integrated into a single library. Powerful Intelligent LCD-TFT display module powered by the Espressif ESP8266 SoC80 x 160 Resolution, RGB 65K true to life colours, TFT ScreenBuilt in WiFi 802.11 b/g/n/e/i support4Mbit (512kb) of Flash memory12 pin/pad interfaceOn-board microSD memory card connector

These bezels are plastic surrounds for all gen4 display modules which feature Resistive Touch. These bezels provide a sleek cover to the gen4 display modules, and provide an easy method to panel mount the display modules into an enclosure. The bezel mounts the display module, while also providing a mounting solution into a panel, keeping all securely together. Spring clips attach to the bezel in multiple locations, and hold it tightly to the enclosure/wall panel, offering a range of panel thickness from 1mm to 3. 0mm without the need to add washers. For panel mounting the gen4 range of resistive touch Display ModulesSimple cut-out requiredBrass mounting inserts in the rear of the bezel 5.0" gen4 Bezel (Black Colour)4 Spring Clips8 Mounting Screws

These bezels are plastic surrounds for all gen4 display modules which feature Resistive Touch. These bezels provide a sleek cover to the gen4 display modules, and provide an easy method to panel mount the display modules into an enclosure. The bezel mounts the display module, while also providing a mounting solution into a panel, keeping all securely together. Spring clips attach to the bezel in multiple locations, and hold it tightly to the enclosure/wall panel, offering a range of panel thickness from 1mm to 3. 0mm without the need to add washers. For panel mounting the gen4 range of resistive touch Display ModulesSimple cut-out requiredBrass mounting inserts in the rear of the bezel 7.0" gen4 Bezel (Black Colour)6 Spring Clips16 Mounting Screws

gen4-uLCD-35DCT-CLB-AR Diablo16 Touch LCD Module with Arduino Shield The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution.This 3.5” 320 x 480 pixel variant features capacitive touch for applications requiring a human-machine interface and includes a cover lens bezel. Also included is an Arduino adaptor shield, allowing the module to be quickly connected to an Arduino for programming.The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments. Features 3.5” 320 x 480 display moduleRGB 65k true to like colours4-wire resistive touchCompact – module dimensions 101.1 x 56.6 x 7.0 mm (including mounting tabs)6 banks of 32KB Flash memory for user application code and data32KB of user RAM16 GPIO – including 4 configurable analogue outputs3 x I2C channels3 x SPI channelsUp to 6 GPIO can be used as pin countersUp to 6 GPIO for PWMUp to 10 GPIO for pulse outputUp to 14 GPIO can be configured for quadrature encoder inputs (2 channels)30-pin FPC connection for signals, power, communications, GPIO and programmingmicro-SD card connector for multimedia storage and data loggingDedicated PWM audio pinSupports all Windows fonts4.0 V to 5.5 V operationRoHS and REACH compliantCE Compliant Kit Contents 1 x 3.5” gen4-uLCD-35DCT-CLB LCD display module1 x gen4-IB interface board1 x 150mm FFC Cable1 x 4D Arduino adaptor shield
