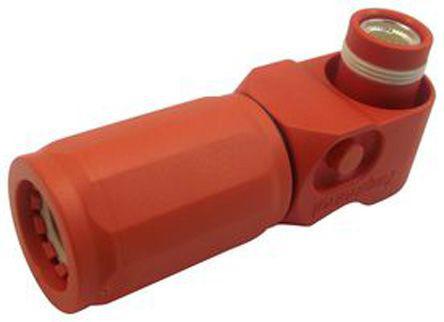

10.3mm SurLok Plus Plug for 70mm (90 Key) From Amphenol, this SurLok Plus series plug is a compact and quick mating compression lug that features a quick lock and press-to-release connection. Robust and environmentally sealed, the plug is field installable and highly reliable. With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area. The plug has a 10.3mm pin and terminates to 70mm² wires. Features and Benefits • Plug rotates 360° • Touch Proof • Spring Locking • Keyed to prevent mismating (90 degree) • IP67 • Flammability rating of UL 94-V0 Applications SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medical and BMS/Energy storage. Amphenol SurLok Plus Range

Insertion and removal tools Plastic tools for contact insertion and extraction The white end of the tool is used for extraction, and the coloured end is used for insertion. LJT Series professional connectors (HE 308) Robust subminiature connectors designed to meet professional equipment I/O interconnection requirements. LJT connectors ensure safe electrical and mechanical use, in accordance with the MIL-C 38999 Series I (HE 308) standard. Bayonet snap-lock latch. Scoop-proof male contact mechanical protection. The standard rear threading allows cable connectors or cable glands to be fitted, and ensures earthing continuity with the cable braid. Contacts must be crimped with pliers M 22520//1-01 (for sizes 20 and 16) or M 22520//2-01 (sizes 20 and 22D), fitted with the corresponding positioners. Enclosure: Aluminium alloy Locking: Tough bayonet mechanical lock system with three lockwire holes 5 key longitudinal, polarisation guiding Insulator: Neoprene elastomer Contacts: Detachable crimp-type in gold-plated copper alloy Current rating per contact: - size 22:  5A - size 20:  7.5 A - size 16:  13 A Withstand voltage: 1800 V eff between contacts (mated and unmated connectors) Insulation resistance: > 10 5 MΩ under 500 Vdc Operating temperature: –65°C → +175°C

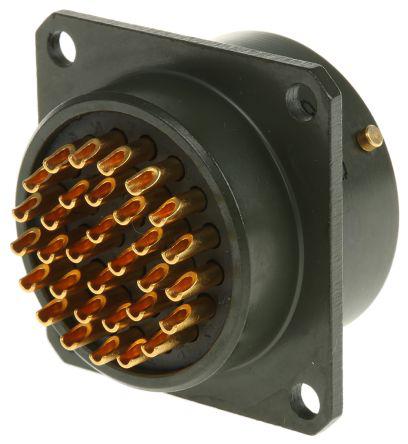

Panel Receptacles Amphenol 62GB miniature bayonet lock square flange receptable connectors are incredibly durable and versatile, manufactured from solid aluminium bar, with a zinc cobalt olive drab finish and complete with solder bucket gold plated male or female contacts and with inserts of polychloroprene rubber. The Amphenol 62GB range of mil spec connectors are similar in design and function to MIl-DTL-26482 but with an added keyway that assists in preventing the mis-mating of the connectors.These durable square flange receptacle connectors are resistant to harsh environments and extreme temperatures, 62gb receptacle connectors are ideal for use in many military and industrial connector applications. Dimensions Ways A (dia.) (mm) B (mm) C(dia.) (mm) W (flange width) (mm) 6 17.4 18.26 3.05 24.4 7 17.4 18.26 3.05 24.4 8 21.95 20.62 3.05 26.7 10 21.95 20.62 3.05 26.7 12 25.12 23.01 3.05 29.3 19 25.12 23.01 3.05 29.3 26 28.27 24.61 3.05 31.5 32 31.45 26.97 3.05 33.8 Note Size 16 contacts, except for stock no. 442-2038 which has 8 size 16 and 4 size 20 contacts. Standards RS MIL-C-26482; BS 9522 F0017 Shell Material Aluminium alloy Contact Material Copper alloy (brass) Insulator Material Polychloroprene Sealing Grommet Material Polychloroprene Current Rating 5A per contact (fully loaded connector) 7.5A (per contact, in isolation) Working Voltage 700Vdc or ac peak Voltage Proof 2100Vdc or ac peak Contact Resistance 5mΩ max. Insulation Resistance 5000 MΩ Temperature Range -55 → +125°C Environmental Classification 55/125/56 Wire Size, size 16 contacts 16-20 AWG Wire Size, size 20 contacts 20-24 AWG

Amphenol 02-10003, Automotive Connector Pin, Batch 57046

The Flat gaskets is a high-quality and reliable electronic component designed to meet the demands of various industrial applications. With advanced technology and precision engineering, it offers exceptional performance and durability for long-term use. Built with premium quality materials for superior durability and longevityInnovative design ensures high efficiency and accuracy in operationsDesigned to meet industry standards for optimal performanceEasy to install and compatible with a wide range of systems and equipmentProvides precise and reliable measurement data for enhanced productivity
